Annotation color in Creo

Anyone have any idea how to change the color of annotation features in Creo. My company just switched to Creo from Wildfire 4 and I am partially color blind. The default scheme doesn't agree with my eyes very well. Thanks.

    11 replies

    TomD.inPDX17-Peridot
    17-Peridot
    Jan 14, 2014 12:39 AM UTC

    I have a color table set to closely mimic the old Pro|E interface. Someone may have one that matches the WF interface. Technically, you can reset pretty much all the colors through a syscolor.scl system color file that is called up in config.pro.

    system_colors_file <drive>:\<path>\<sys-color-file>.scl

    Translate
    ptc-48646031-Visitor
    1-Visitor
    Jan 14, 2014 2:53 PM UTC

    i think it is the "Letter" color in the Colors>Graphics.

    The color settings are confusing. It was a game of wack-a-mole to figure out what controls what, confusing because the description of what color you are setting isn't consistent.

    Translate
      MarkEvans1-VisitorAuthor
      1-Visitor
      Jan 15, 2014 2:55 PM UTC

      Hi Ryan,

      Thanks for the reply. The 'letter' color setting wasn't the one I was going after. I'm going after the ones below...Untitled.png

      Translate
      Constantin15-Moonstone
      15-Moonstone
      Jan 15, 2014 8:43 AM UTC

      Mark, are you talking about CreoelmentsPro (WF5) or Creo1 or 2?

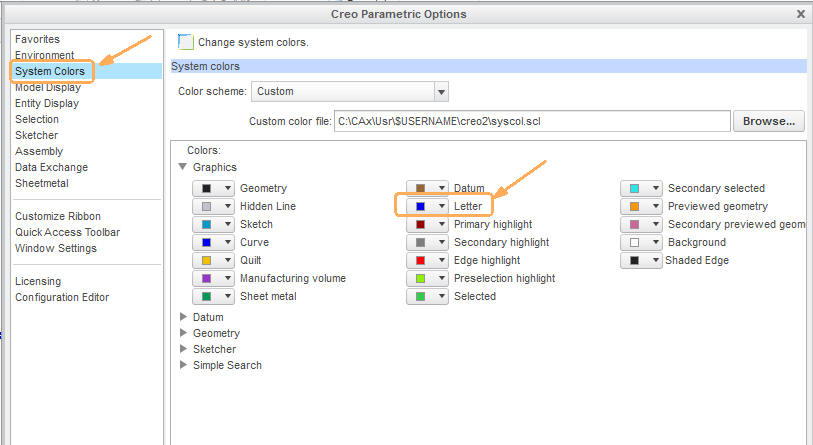

      As Ryan points out, the color is driven by the 'Letter' setting.Letter_color.jpg

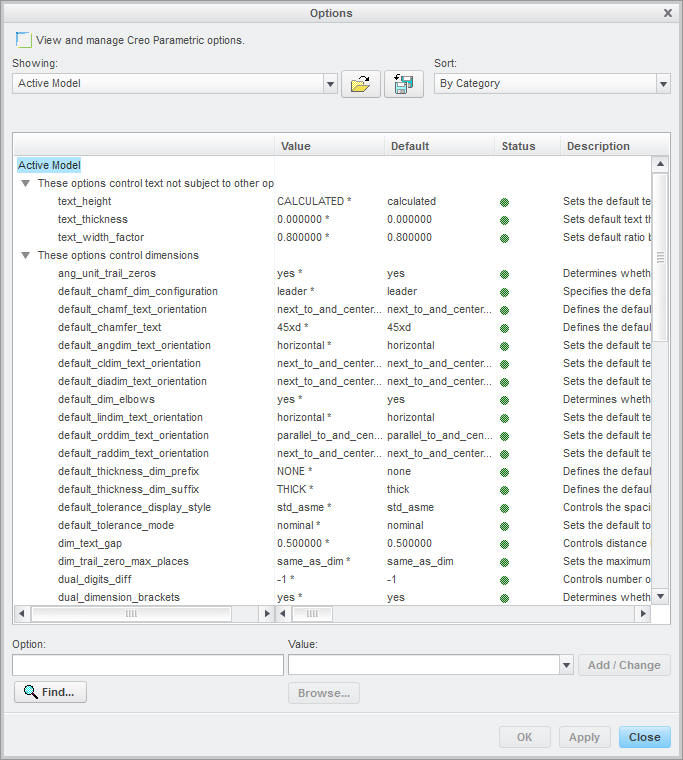

      All other 'drawing setup' options for the 2D elements in 3D models in Creo1 or 2 the are managed within the part, such as text hight, tol display and many more.
      That means if you want to have it permanently changed you must implement it in your start part.

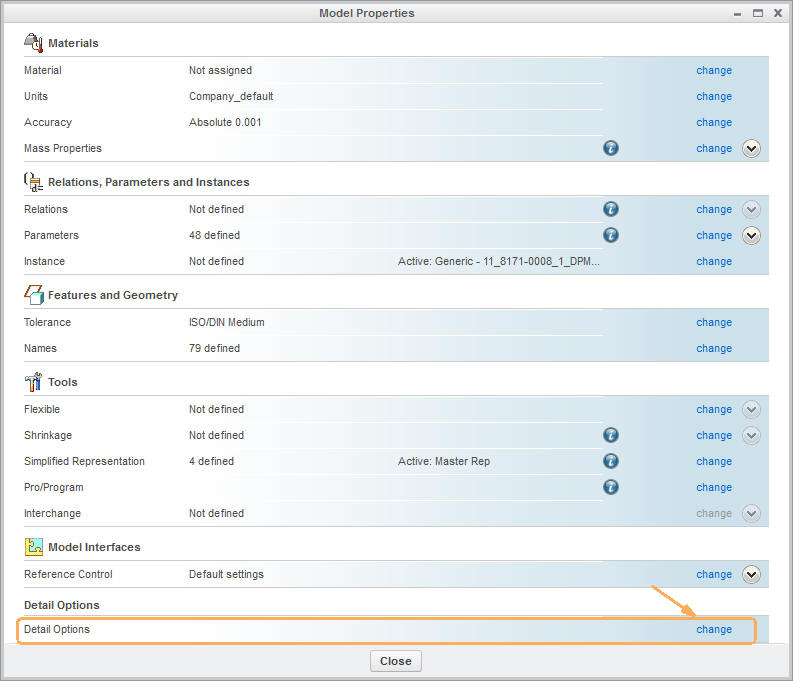

      It is to be found and modified here:Model_Properties.jpg


      Translate
      MarkEvans1-VisitorAuthor
      1-Visitor
      Jan 15, 2014 2:44 PM UTC

      Constantin, I am actually referring to Creo 2.0 and am specifically referring to various annotations as they are viewed in part modeling mode.

      For instance, when you display a coordinate system on a part, what color setting needs to be adjusted to change the color of the 'X, Y, Z' on each of the 3 axes? I have tried adjusting the 'Letter' setting but this isn't it. I've also adjusted the color of the 'tag' for the coordinate system (and tags for other datum features) but this only controls the color of the name label for the coordinate system.

      Take a look at the image below to see what I'm trying to adjust.


      Translate
      ptc-48646031-Visitor
      1-Visitor
      Jan 15, 2014 3:15 PM UTC

      i don't think I ever found out which one controls that.

      you would think that developers would have some color blind people somewhere in the process run through things like this.
