Question

Change in Color of the component

  • August 31, 2011
  • 4 replies
  • 4221 views

Hi...

I'm facing a problem with the component color while working in WF5.

When ever I assemble a component/part, it appears in different color rather than the default component color.

Are there any settings in WF5 to obtain the component default color.

Please help me out.


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

    4 replies

    K
    KshetrabasiMaha1-Visitor
    1-Visitor
    September 9, 2011

    Hi Jayant

    I am not quite sure about the problem

    But what I suggest you to

    Go to Appearance gallery

    &gt Clear Appearances

    and apply to the assembly

    One of the reason why parts change to a specific color might be :- You have applied color to the assembly or Your Default assembly template

    Hope This will solve your problem

      J
      Jayanth1-VisitorAuthor
      1-Visitor
      September 9, 2011

      Hi Kshetrabasi Mananta,

      Thanks for your reply.

      I have tried this option earlier itself, but i did not acheive the needful results.

      So can you please help me out for other means to sort out this problem?

      K
      Kevin1-Visitor
      1-Visitor
      September 9, 2011

      If you are talking about during the process of specifying constraints check the setting for the config.pro option preserve_comp_color_in_preview.

      J
      Jayanth1-VisitorAuthor
      1-Visitor
      September 12, 2011

      Hi Kevin,

      I thought it would be helpful.

      My default config settings were set to "NO".

      Now I changed them to "YES" and tried to assemble the part.

      But also couldn't achieve the desired result.

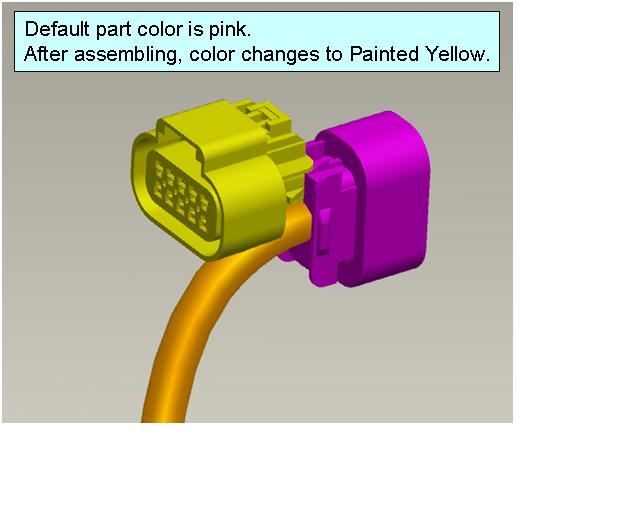

      Here is the snap shot of my results...


      Please let me know if there is any other options...

      Jay

      G
      GrahameWard1-Visitor
      1-Visitor
      May 14, 2013

      Are your parts made from quilts that are copied from a master file, using Copy Geometry, or just Ctrl C-V ?

      Because if the quilts in the master are assigned separate colors the colors will propagate through the child parts. Which is annoying.

      S
      santinou11-Garnet
      11-Garnet
      May 10, 2012

      I have the same similar problem. Cannot get to show assembly components to their default colors. When I use "clear appearance" it does not go back to it's default color.

      Don't know what they did with WF5 in this area but it's frustrating as hell.

      A
      aboppanna1-Visitor
      1-Visitor
      May 14, 2013

      hai.... jayanth this is anil i am also facing same problem as of you regading change in colour pattern in assembly and parts .... if you any soloution please let me know....
