Cross-Section Labels

I am using Creo Parametric Release 4.0 and DatecodeM080

I'm in the process of making a detail drawing, which features a cross section. There is a keyword option for detail drawings that turns the cross-section name on the section leader lines on and off. What is that keyword?

1 reply

StephenW
23-Emerald III
Jan 4, 2023 6:16 PM UTC

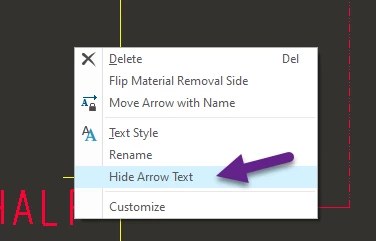

Select the cross-section arrow, then right mouse button  "Hide Arrow Text"

You have to do it for each arrow
