Detail view notation format

Forum|Forum|11 years ago
July 31, 2014
19 replies
14492 views

All

Does anybody know what settings (dtl/config/format file) controls the format used for detail view notations in a drawing?

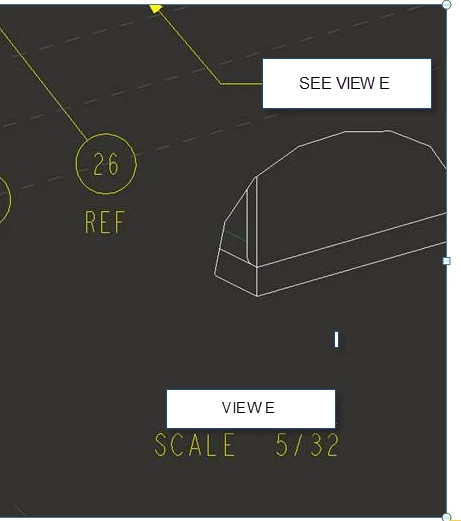

I have attached two images one from a user's PC with the notation we use and one from a user's PC where the notation is very different.

This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

General

Show previous replies

S

StephenW

23-Emerald III

We had a manager one time demand no scales displayed on the drawings so we changed the scale note size to .001. You still get the SECTION A-A part but the scale note is just a little dot. Horrible work-around but it met the demand.

That manager has since left. Thankfully.

T

TomU

23-Emerald IV

I don’t know of any way to change/eliminate the view/scale note automatically, but you can certainly delete it. Just pick on the note and hit ‘Delete’.

D

dduncan-2

1-Visitor

I submitted a Product Enhancement Request to allow the view_note option to match the detail_circle_note_text. So now we need votes to move it up the ladder for consideration. I know this seems trivial but I'm tired of having to change the text every time I create a detailed view. It creates a needless opportunity for a checker comment if I forget to change it.

Don

S

StephenW

23-Emerald III

Don't forget to vote on your own enhancement in the forum!!

D

davehaigh

13-Aquamarine

Perhaps you should look at it this way. It's the checkers job to find problems. If they don't find something wrong, they will nit-pick just so they can mark something up.

This give them a bone they can go after, and they will be satisfied with that.

I see this in all kinds of government oversight jobs. It's their job to find problems, sometimes it's better to have a typo or some other simple obvious problem, so they don't start nit-picking other things that may add up to lots of work.

David Haigh

T

TerryMcFall

1-Visitor

Sounds like we need a new config.pro setting:

obvious_error (yes/no)
Adds large text spelling error text to face of the drawing.

That'll do it!

-Ter

M

mlocascio

1-Visitor

I am not sure exactly what you are asking for. I can tell you that the view
name text CAN be edited to add information under it.

Michael P. Locascio

M

mlocascio

1-Visitor

I tried that post and it said something like "the post is not valid."

D

dgschaefer
