Drawing format for academic use

Hi

I am looking for a drawing format for academic use. mm, ISO, 3rd angle.

I'm looking for format that templates of standard part and assembly template will be linked to parameters (DESIGND_BY and DESCRIPTION)



Thanks

    MartinHanakAnswer
    24-Ruby III
    February 15, 2024
    @ProFeature wrote:

    @MartinHanak I appreciate your willingness to help.
    I'd like to use these two parameters in drawing format.




    Thank you



    Hi,

    please read https://support.ptc.com/help/creo/creo_pma/r10.0/usascii/index.html#page/detail/to_retrieve_model_parameters_in_drawing_using_format.html#

    -AND-

    watch https://www.youtube.com/watch?v=lGT85r_f8Dw video (start at 10:00).

    View in thread

    12 replies

    MartinHanak24-Ruby III
    24-Ruby III
    February 15, 2024

    Hi,

    I'm afraid you'll have to create them yourself.

    Translate
    ProFeature16-PearlAuthor
    16-Pearl
    February 15, 2024

    Hi @MartinHanak



    I found some formats and templates in the folder: C:\Program Files\PTC\Creo ##.#.#.#\Common Files\creo_standards\formats.

    Unfortunately, no format from what I found there or in the subfolder is suitable and is not linked to a standard part or assembly.

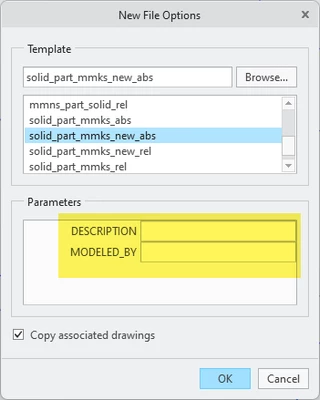

    This makes me wonder why the default standard parts and assemblies have parameters that aren't associated with anything.



    Thanks

    Translate
    MartinHanak24-Ruby III
    24-Ruby III
    February 15, 2024

    Hi,

    Youtube ... creo create drawing format ... you will get a list of useful videos.
