Issue with solid line through a hole feature i drawing mode

Forum|Forum|3 years ago
March 16, 2023
1 reply
1771 views

I am using Creo Parametric Release 6.0 and Datecode6.0.6.0

Problem with solid center line showing up in a drawing view. Its a offset section with a sketch where there is two lines in 90 degree The section is showed by a full unfold, partial view.
Not sure if this is suppose to look like this or if its a bug or if there is any detail settings to hide the solid line that goes through the hole feature?

General

24-Ruby III

Hi,

please attach some pictures. If it is possible pack your files into zip file and upload this zip file.

Author

4-Participant

Hi, here is 2 different drawing views with same issue. There is a solid line that i would like to have removed.

1_solidline.zip

24-Ruby III

@�B_10498858 wrote:

Hi, here is 2 different drawing views with same issue. There is a solid line that i would like to have removed.

Hi,

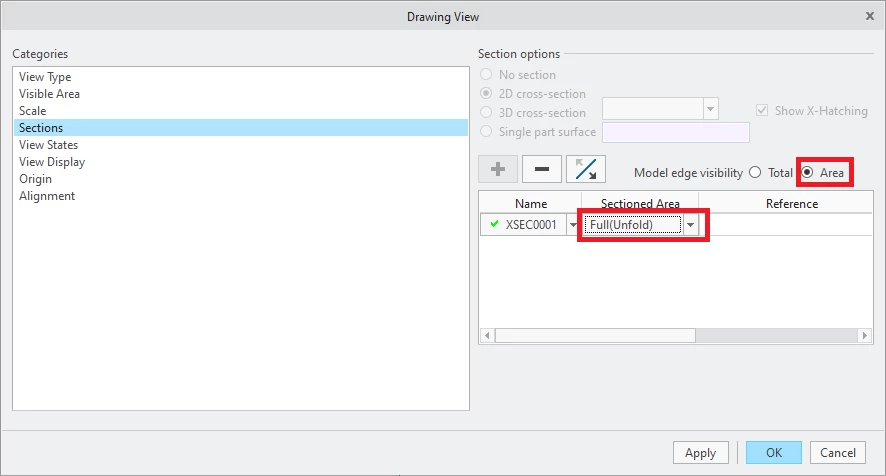

there is drawing option create_area_unfold_segmented. It is set to yes by default and you can switch it to no.

Unfortunately it only affects Area section views, not Total section views.

Fortunately there is also drawing option show_total_unfold_seam. It is set to yes by default and you can switch it to no.

It affects Total section views.
