MULTAX Errors

  • March 3, 2017
  • 1 reply
  • 2191 views

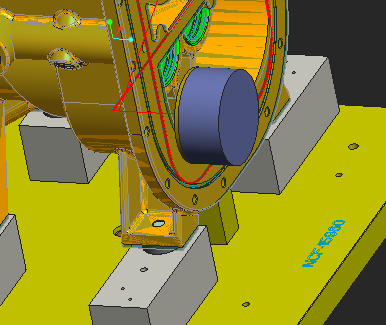

When I post out MULTAX I get:I have issues now when posting MULTAX vs ROTATE.

When I post out ncl for ROTATE I get:

N52 G3 X88.669 Y700.92 I0 J-31.75

N53 G1 Y519.508

N54 X-384.9

N55 Z239.2

N56 G0 X358.3 Y821.57

N57 G1 Z227.008

N58 X-128.32

N59 G3 X-229.92 Y719.932 I0 J-101.6

N60 G1 X-229.782 Y348.712

N61 G3 X-128.182 Y247.15 I101.6 J.038

N62 G1 X87.087

N63 G3 X188.604 Y344.649 I0 J101.6

N64 G1 X202.943 Y699.639

N65 G3 X171.219 Y732.67 I-31.724 J1.281

N66 G1 X120.419

N67 G3 X88.669 Y700.92 I0 J-31.75

N68 G1 Y519.508

N69 X-384.9

N70 Z369.28

When I post out MULTAX I get:

N67 G3 X88.669 Y700.92 I0 J-31.75

N68 G1 Y519.507

N69 X-384.9

N70 Z369.28

N71 G0 X-408.727 Y502.998 Z342.721 B7.334

N72 X-401.695 Y486.481 Z350.936 B19.668

N73 X-331.864 Y469.967 Z417.59 B41.222

N74 X-167.123 Y453.454 Z506.542 B72.607

N75 X-15.116 Y436.933 Z533.185 B100.417

N76 X37.598 Y420.415 Z532.072 B117.256

N77 X23.732 Y403.904 Z532.87 B126.932

N78 X-22.074 Y387.388 Z532.941 B133.182

N79 X-67.8 Y370.866 Z529.072 B139.427

N80 X-109.283 Y354.351 Z522.083 B146.078

N81 X-147.763 Y337.839 Z512.524 B152.987

N82 X-184.867 Y321.319 Z500.338 B159.965

N83 X-222.123 Y304.8 Z484.95 B166.808

N84 X-260.679 Y288.288 Z465.362 B173.33

N85 X-300.986 Y271.773 Z440.366 B179.405

It is like it is reading ahead on RETRACT and anticipating a move to B180.

Same Creo file, just Use Rotation on or off. Seems to be in the .ncl somehow. Anyone else see this problem? Creo Parametric 2.0 Date Code M220.

1 reply

A
AustinN.C.,Inc.1-Visitor
1-Visitor
March 3, 2017

Without seeing the NCL files and the LST file from the post it is hard to say for sure but I think this is the post doing linearization.  Do you have LINTOL/n in your NCL file of Linearization enabled in the post?  If so you can turn it off and see if that changes the output.

Fred

S
ScottJohnson14-AlexandriteAuthor
14-Alexandrite
March 3, 2017

Hi Fred,

     No LINTOL in the ncl. This is the section that gets goofy after MULTAX.

RAPID

MULTAX / ON

GOTO / -15.1535433071, 20.4530544432, 14.5385737003,  $

0.0000000000, 0.0000000000, 1.0000000000

RAPID

GOTO / -17.6823706865, 19.8030691050, 11.3284437210,  $

-0.1276563404, 0.0000000000, 0.9918184606

RAPID

GOTO / -19.5422928246, 19.1527798756, 7.6875439264,  $

-0.3365628468, 0.0000000000, 0.9416610060

RAPID

GOTO / -20.6613454558, 18.5026178012, 3.7560489448,  $

-0.6589746926, 0.0000000000, 0.7521651112

RAPID

GOTO / -20.9975670368, 17.8524975825, -0.3174907902,  $

-0.9542776933, 0.0000000000, 0.2989215348

RAPID

GOTO / -20.5379371207, 17.2020868167, -4.3807879984,  $

-0.9835171498, 0.0000000000, -0.1808148669

RAPID

GOTO / -19.2997707077, 16.5517616034, -8.2774774899,  $

-0.8889730830, 0.0000000000, -0.4579594499

RAPID

GOTO / -17.3310732506, 15.9017391000, -11.8588116850,  $

-0.7993479743, 0.0000000000, -0.6008683849

RAPID

GOTO / -14.7049775249, 15.2514876683, -14.9920317347,  $

-0.7291792577, 0.0000000000, -0.6843227382

RAPID

GOTO / -11.5203752907, 14.6010078273, -17.5578570808,  $

-0.6504192488, 0.0000000000, -0.7595754082

RAPID

GOTO / -7.9004988280, 13.9508096248, -19.4571238626,  $

-0.5580608794, 0.0000000000, -0.8298000090

RAPID

GOTO / -3.9819673162, 13.3007277489, -20.6189664234,  $

-0.4541952079, 0.0000000000, -0.8909021906

RAPID

GOTO / 0.0892534996, 12.6503517692, -20.9997683708,  $

-0.3425874215, 0.0000000000, -0.9394859545

RAPID

GOTO / 4.1570157292, 11.9999884941, -20.5844096982,  $

-0.2282204355, 0.0000000000, -0.9736094868

RAPID

GOTO / 8.0654538957, 11.3499221993, -19.3893690288,  $

-0.1161436216, 0.0000000000, -0.9932324296

RAPID

GOTO / 11.6691725233, 10.6997073554, -17.4593819649,  $

-0.0103776001, 0.0000000000, -0.9999461513

A
AustinN.C.,Inc.1-Visitor
1-Visitor
March 3, 2017

This is CREO walking the tool along the retract surface, I assume a cylinder.  There should be a setting in CREO where you can change the distance between points.  If you increase this distance you can get rid of some or all of these moves.  I don't know where that setting is but one of the CREO gurus on here should know!  😉

Fred
