Negative Numbers Regenerate Opposite Direction

  • June 19, 2013
  • 2 replies
  • 1094 views

All,



I currently have a family table showing a component in several different positions. In one case, the component is in the POSITIVE direction with respect to a datum plane. In another case, the component is in theNEGATIVE direction with respect to the same datum plane.



Everytime I verify the family table, the instance where the component is located in the NEGATIVE direction flips to the other side.



This is becoming quite frustrating.



I think that there is an option in CONFIG.PRO that deals with NEGATIVE numbers, but I cannot find this option. Any suggestions????



I am using Wildfire 5.0, M060.



TIA.


Sincerely,
Neal Rosenblum
Geometrix Engineering, Inc.
201 N. 13th Avenue
Hollywood, FL 33019
Ph: 954-920-2049
Fax: 954-920-9574
Cell: 954-649-9399
neal@


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

2 replies

T
tmcnaney14-Alexandrite
14-Alexandrite
June 20, 2013

Hi Neal,


I think this is what you are looking for:


https://www.ptc.com/appserver/wcms/standards/ssl/freefull_cskdb.jsp??icg_dbkey=900&im_dbkey=94714



  1. Open the Family Table

  2. Select the column with positioning dim

  3. Toggle Tools > Absolute / Relative Dimension Values

The column header should have a "$" prefix to indicate an absolute value.


You can also set config.pro option show_dim_sign=yesif you want to displaysigned dimension values.


Hope that clears up the annoyance!

D
dgallup1-Visitor
1-Visitor
June 20, 2013

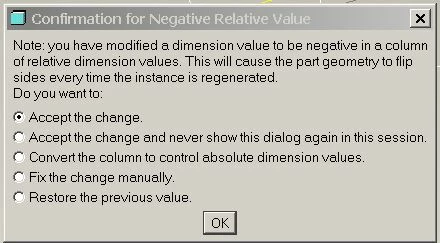

When I create a negative I get the attached message. If I pick Convert the column to control absolute value, ProE puts a dollar sing in front of the dimension symbol. You used to have to do this manually.
