Question

Settings to show inserted image

  • February 8, 2016
  • 3 replies
  • 1502 views

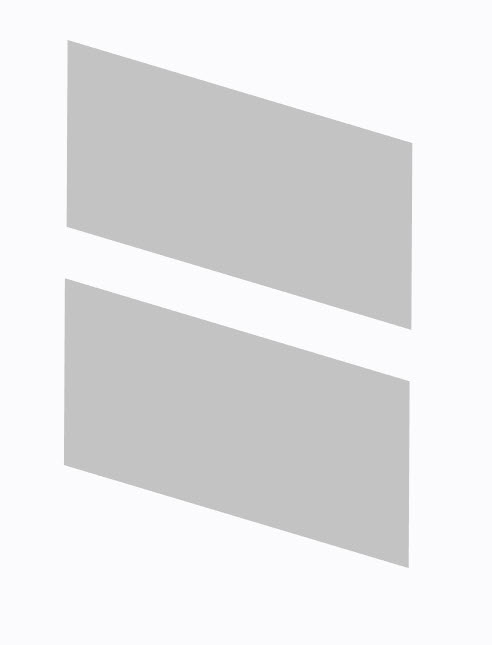

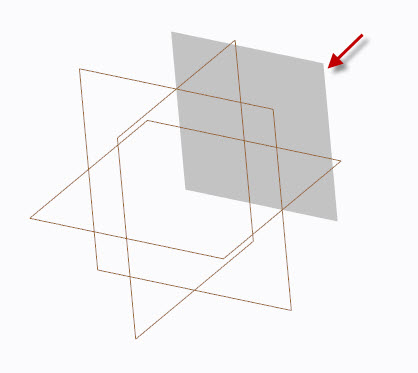

I've inserted an image into a model. but all I get is a gray square. Obviously I'm missing some important settings. What are they? The image is a jpeg



This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

3 replies

M
MartinHanak24-Ruby III
24-Ruby III
February 9, 2016

Hi,

in my CR2 M070 images in model are displayed correctly. See attached data.

MH

D
davehaigh13-AquamarineAuthor
13-Aquamarine
February 9, 2016

Nope, I still get gray rectangles.


M
MartinHanak24-Ruby III
24-Ruby III
February 9, 2016

Hi,

last idea ...

  • eliminate config.pro files
  • test graphics win32_gdi option

MH

C
cprice1-Visitor
1-Visitor
February 9, 2016

It's been a while since I ran into this - I remember that within windows, there is a place to set the default extension for image files - if it is not set to the correct extension, you will get just a box (this usually happened in drawings.)

Maybe that will give you a clue to what is happening.

Mahesh_Sharma
Mahesh_Sharma22-Sapphire I
22-Sapphire I
February 10, 2016

David,

Generally this happens when data is unable to locate the image file and it will report message Could not locate image:<image name>".

As a trail save the images in one folder and set the config option search_path with value as folder location. Create a new part, insert image and test that.
