Style curves in the Style tool

  • March 31, 2016
  • 5 replies
  • 7914 views

I'm working with the style tool in Creo 3.0.  I'm making Curvature continues curves and using Curvature Analysis to evaluate and modify the curves.  I've noticed on some of the models made by other users that their curvature analysis have a less smooth curve, so their analysis have corners.  My Analysis curves are all very smooth.  I've also noticed when I'm editing their curves the menu ribbon does not have the "degree" option.  I would like to know how they are making their curves.  These users are not available to ask directly.  I've tried looking for a config option without success.


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

5 replies

M
MartinHanak24-Ruby III
24-Ruby III
March 31, 2016

Hi,

if you can, please attach some example model. Use How to attach file when you Reply to a discussion. procedure.

MH

    M
    mpoling1-VisitorAuthor
    1-Visitor
    April 1, 2016

    Thank you for your help with this.  Here are what the curves and ribbons look like for each option.  The style curves are curvature continuous. The first capture is what I get, the second is from the other users file.

    curve 1.jpg

    curve 2.jpg

    J
    Jacek_Mydlikows1-Visitor
    1-Visitor
    April 1, 2016

    Steven has right regarding possible cause of this situation

    playing with degree of spline curve is available from Creo 2. Might be the curves from other users were made prior Creo 2, or what is also available there was no reason to increase it above default value

    In the case represented in your pictures I would avoid using curvature connections at all if not really necessary. Imho there is no reason to maintain the curvature connection between stright line and spline. Tangent one is enough unless you want to get into trouble while offseting or "shellling" the geometry

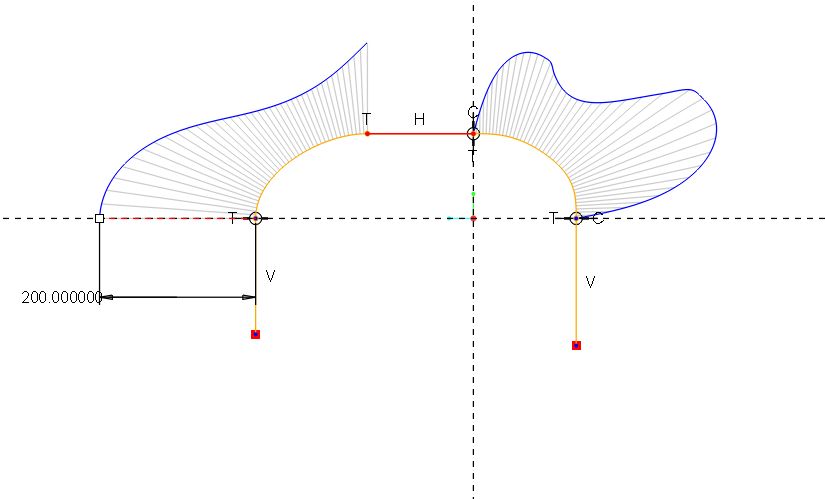

    on the side, I want to confirm that curvature connection is availalbe also in sketcher(tangent one on the left, curvature on the right)


    M
    mpoling1-VisitorAuthor
    1-Visitor
    April 2, 2016

    Hey Jacek,   I had thought already that it may be a change in the newer version of Creo, and that could be it.  But, I would expect the new version to still allow the old functionality.  That's what I would like to know how to do.  I have found that I can copy paste the old version from one part to another.  Is that the only way duplicate something made in the older version of Creo?

    I'm not sure what you're trying to say in the second part of that sentence.  Can you clarify?

    M
    mpoling1-VisitorAuthor
    1-Visitor
    April 2, 2016

    Thank you Steven.  That verifies the curves that I'm seeing were created in Wildfire 5.  Is there a way to reproduce those Wildfire curves in Creo 3?  No matter what I do with the degree field the new curve won't match the old curve.

    J
    Jacek_Mydlikows1-Visitor
    1-Visitor
    April 8, 2016

    Mark

    you meant this: "or what is also available there was no reason to increase it above default value"? - to me increasing the degree of curve has a sense while playing with adjacent geometry with some curvature, straight line has none, curvature radius is 0.

    Plus if the final product you are trying to build with these curve, is common household with no high gloss or metalic surface, then all of those high quality surface won`t be appearent to the user. Simply put: high order curves? - ok, but for high gloss and metalic areas only.
