Tangent lines are not visible in hidden or wireframe display style.

  • December 21, 2023
  • 1 reply
  • 1490 views

I am using Creo Parametric Release 8.0 and Datecode8.0.6.0

Tangent Lines are not visible when model display is set to wireframe or hidden line display style -

When I view my models in wireframe or hidden, the tangent lines of a cylindrical feature are invisible.


Best answer by pausob

Maybe you need this setting in your config.pro:



display_silhouette_edges yes



1 reply

tbraxton
22-Sapphire II
tbraxton22-Sapphire II
22-Sapphire II
December 21, 2023

Cylinders do not have tangent edges that would show up in Creo as such. Post a picture if the issue. If no tangent lines are visible there could be multiple causes for this.



All lines of a cylinder in wireframe are visible lines not tangent edges.




G
GG_109000664-ParticipantAuthor
4-Participant
December 21, 2023

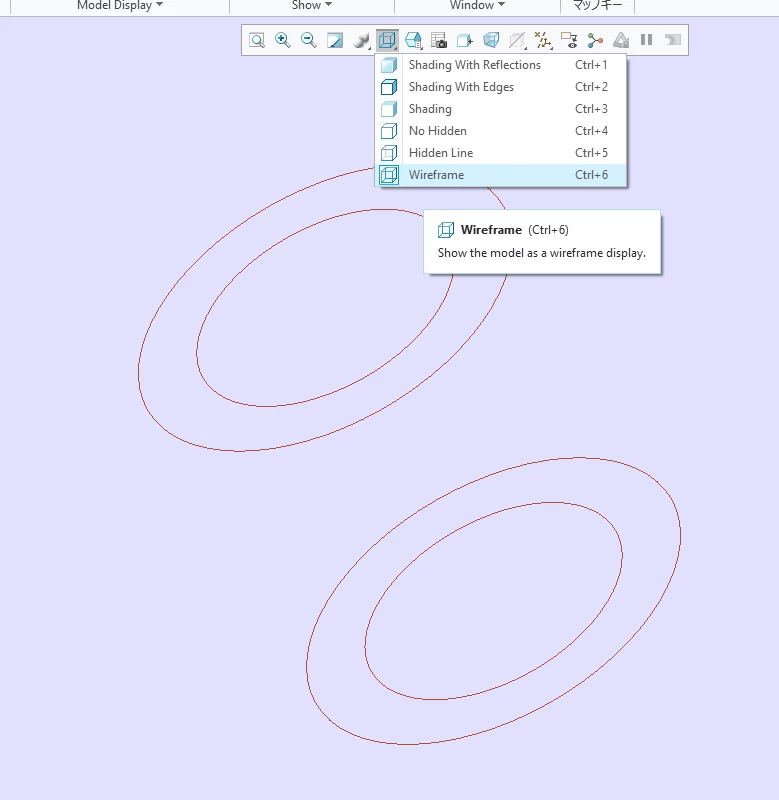

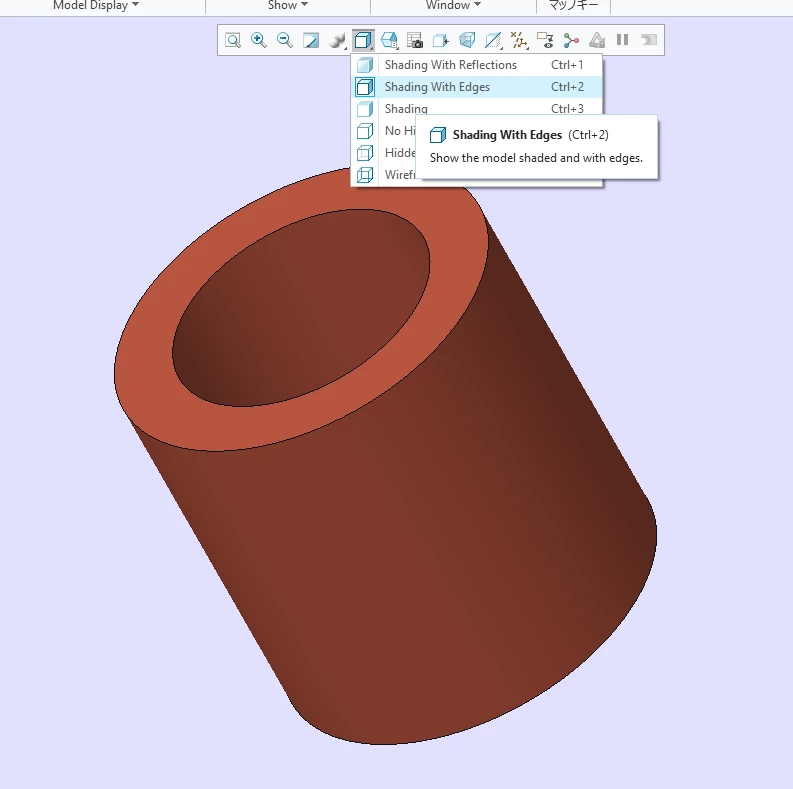

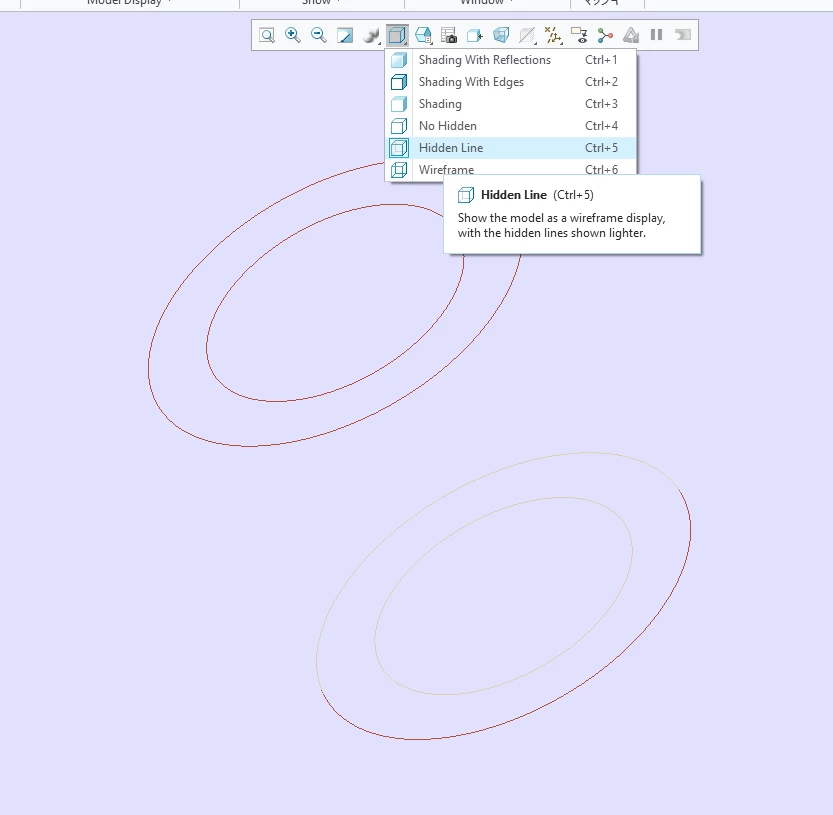

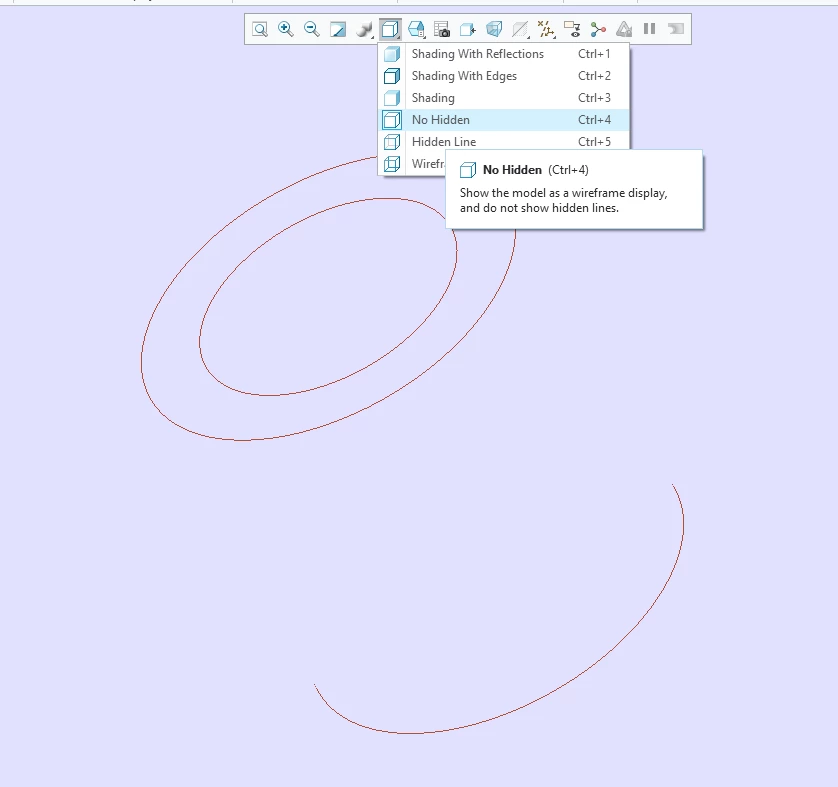

Here is a hollow cylinder I modeled and here is how it is displayed in various display states.








P
19-Tanzanite
pausob19-TanzaniteAnswer
19-Tanzanite
December 21, 2023

Maybe you need this setting in your config.pro:



display_silhouette_edges yes
