unwanted thin surface

Forum|Forum|13 years ago
March 28, 2013
4 replies
1322 views

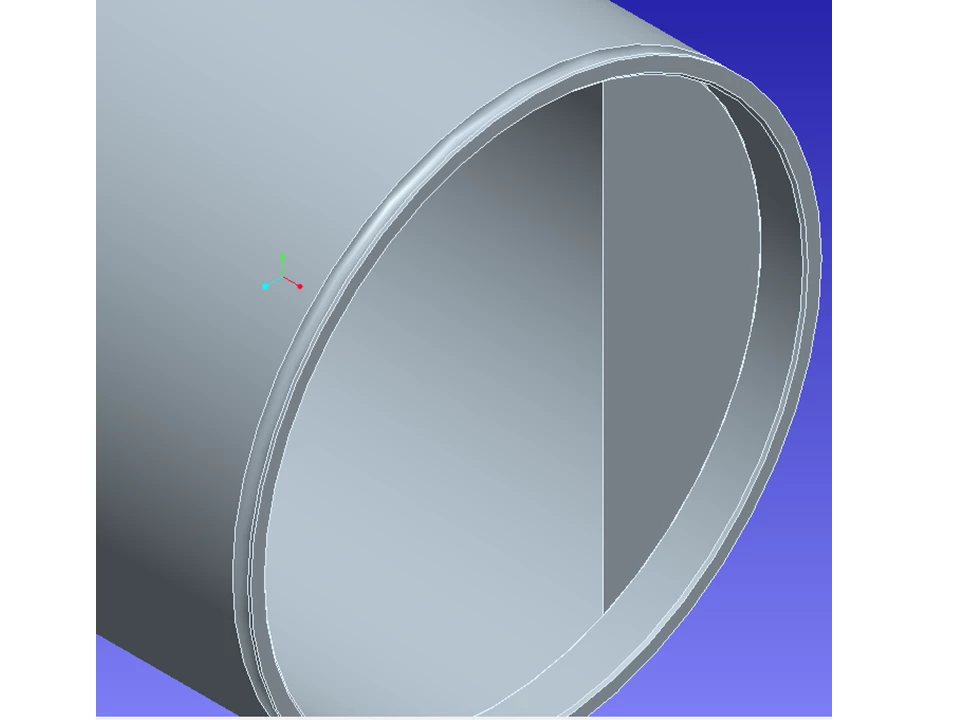

I am having an issue where a thin surface appears in a hole after creating a weld lip using a revolve.

The hole in the center of the part is a thru hole. Anyone have any ideas what causes this?

Wildfire 4.0 M220

NVIDIA quadro K2000M and Intel HD Graphics 4000

(4) Intel Core i7-3720QM CPU @ 2.60GHz

This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

General

S

SarahFord

1-Visitor

I've seen that sort of thing before.
Check your sketch for small edges, also try turning your accuracy down as small as it will go.

Regards
Sarah Ford
CAD Designer/Admin
Westwind Air Bearings
Tel. 01202 627236

S

StephenW

23-Emerald III

I get that same phenomenon occasionally. It's not really there on mine. It doesn't show up in drawings but at certain shaded views, it looks just like what you have. I haven't solved it yet but it doesn't seem to cause other issues except visualization.

J

JustinSauber

Author

1-Visitor

I made the accuracy .0001 and that fixed it. Thank you.

Regards,
Justin
