Creating your own lattices

  • November 8, 2021
  • 3 replies
  • 2372 views

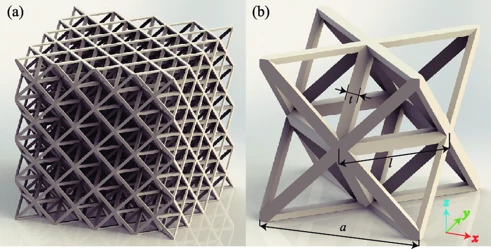

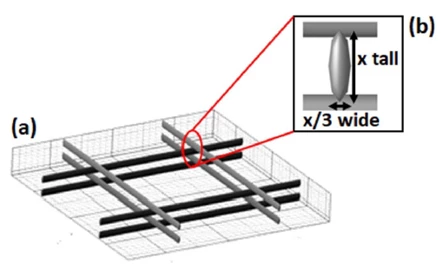

Does anyone know if it is possible to create your own lattice types in Creo?  The "Custom" and formula-based options weren't quite what I hoped from the names.  Yet I am surprised that even some very common standard lattices aren't included by default.  In particular, I would like to be able to make log-pile and octet-truss lattices.



Any advice anyone might provide on how to make Log-pile and Octet-truss lattices in Creo would be greatly appreciated!




Best answer by Chris3

You might want to check out this video:

https://www.youtube.com/watch?v=QQRhw1ujaTA

3 replies

C
Chris321-Topaz IAnswer
21-Topaz I
November 8, 2021

You might want to check out this video:

https://www.youtube.com/watch?v=QQRhw1ujaTA

    V
    24-Ruby III
    VladimirN24-Ruby III
    24-Ruby III
    November 8, 2021

    "A Quick Introduction to Lattice Structures in Creo": https://www.ptc.com/en/blogs/cad/quick-introduction-lattice-structures-creo

    "Three Tricks for Mastering Lattice Structures in Creo": https://www.ptc.com/en/blogs/cad/tips-tricks-3-tricks-for-mastering-lattice-structure-design-in-creo

      M
      MartinHanak24-Ruby III
      24-Ruby III
      November 8, 2021

      Hi,

      you can read https://support.ptc.com/help/creo/creo_pma/r6.0/usascii/index.html#page/part_modeling/part_modeling/part_nine_sub/To_Create_Custom_Lattice.html

      -AND- also ask Google creo custom lattice
