Line Chart Padding Issue

psp316r
16-Pearl

Line Chart Padding Issue

Placed a Line Chart on the Mashup, as soon as Chart Plotted, the chart is not getting placed properly on the dashboard.
May be this is due to the Padding issue. The Line chart on the dashboard is something like this:



 How Can Padding properly set for the Line Chart.

@paic @slangley @c_lowy @VladimirN

Thanks,
Shashi

1 ACCEPTED SOLUTION

Accepted Solutions

The issue is solved by the CSS provided by @c_lowy .

ptcs-chart-line::part(chart-layout) {
padding: 0;
}
If there are 2 or more DataSources given to the Line chart,
1. Enable the Multiple Data source Visualization option in widget properties, and
2. Connect to the 2 or more Data Sources to chart widget again.
3. Select the X Axis as TimeStamp(in my case)

Thanks,
Shashi

View solution in original post

8 REPLIES 8
bchaudhary
14-Alexandrite
(To:psp316r)

Hi @psp316r ,



Kindly check the below attached article:

https://www.ptc.com/en/support/article/CS343992?posno=1&q=line%20chart%20padding&source=search



Revert back in case of further challenges.



Regards

Bhawna

Hi @bchaudhary ,

tried the article, didn't help. The Picture in the issue posted is after trying out the article you have shared.

Thanks,
Shashi.

PEHOWE
16-Pearl
(To:psp316r)

@psp316r



Have you provided values for the properties "XAxisMaxmumValues", "XAxisMinimumValues", "YAxisMaximumValues" and "YAxisMinimumValues". These properties can be bound to services if the X Axis values change based on other issues.



Hope this helps.



psp316r
16-Pearl
(To:PEHOWE)

Hey Hi @PEHOWE

Thanks for quick response, as per the use case the X and Y axis should be auto can't put min and max values.

Thanks,
Shashi

make the container fixed height



Hey Hi @GuruPrasad1 ,

Didn't get you, can you show a example ?

Thanks,
Shashi.

Hi Shashi,

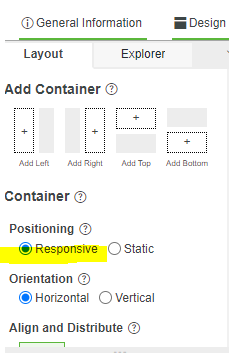

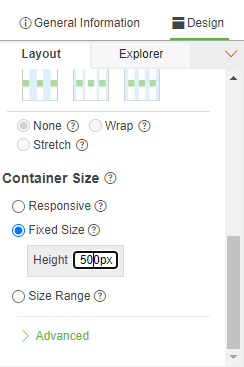

Usually this happens when the container in which your are placing the chart is responsive, if you instead choose a fixed length and give a value say 500px this would appear better. This settings you can find in the layout tab am attching











Regards

Guruprasad S



The issue is solved by the CSS provided by @c_lowy .

ptcs-chart-line::part(chart-layout) {
padding: 0;
}
If there are 2 or more DataSources given to the Line chart,
1. Enable the Multiple Data source Visualization option in widget properties, and
2. Connect to the 2 or more Data Sources to chart widget again.
3. Select the X Axis as TimeStamp(in my case)

Thanks,
Shashi
