Chart rendering issue for Bar chart and Pie chart

  • December 4, 2024
  • 2 replies
  • 1314 views

Hello All,

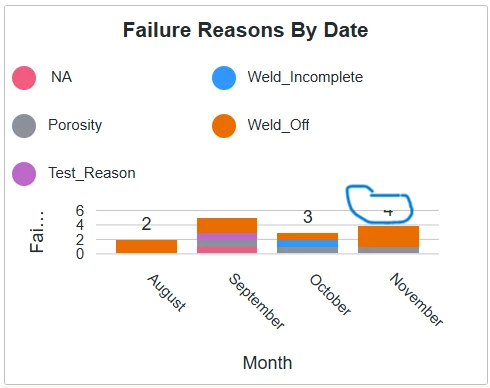

As legend take much space in chart, actual chart gets shrink and sometime value are getting cropped in case of bar chart(stacked).

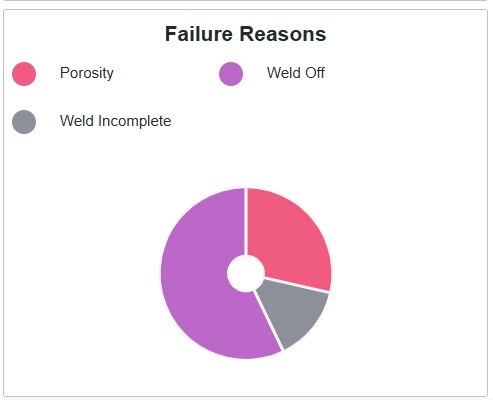

In case of pie chart, value not visible on 100% zoom of page and it is visible when zoom is 75%.

Also, there is no option to show values and percentage for pie together, only one can be shown at a time.



Note: Chart space is limited, on page there are 6 charts.

Best answer by TonyZhang

Hi @javed_a,

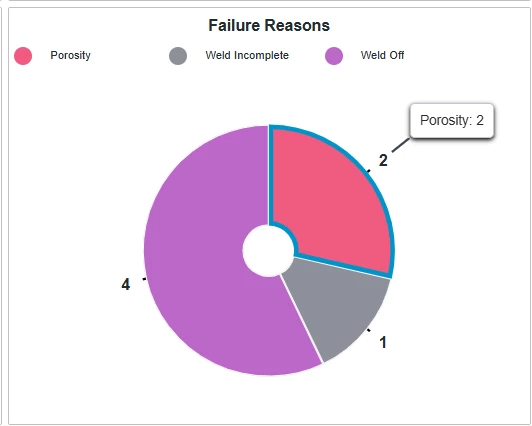

I see... In that case, you can consider hiding legend and letting users to mouse hover on the parts to see the tooltip for more information.

Or display simplified view without values on an overview page, then if user clicks on a zoom-in icon or button, show a popup displaying a particular pie chart only to ensure you have enough space for fully displaying the pie chart values together with a legend.



Thanks,

2 replies

T
TonyZhang16-Pearl
16-Pearl
December 9, 2024

Hello @javed_a,



For stacked chart, you may want to position your legend to left or right due to limited vertical space you have for displaying the column chart.

For pie chart value display issue, consider positioning your value "on slices" instead of "outside slices" given the limited space you have by configuring ValuesPosition property.

As for displaying both number and percentage values altogether on pie chart, I guess you are correct, Pie Chart appears to support displaying value in one form or another. You can post an enhancement idea here.



Hope that helps.

Thanks,



    J
    javed_a13-AquamarineAuthor
    13-Aquamarine
    December 9, 2024

    @TonyZhang  Thanks, for your suggestion.

    For Stacked Chart, as there is limited space, even if I assign it to right side, it moves to top and if I zoom out the screen to 90%, then it is displayed in right side.

    Only problem in positioning your value "on slices" instead of "outside slices" is where there are multiple slices again space issue will be there.

    I have posted the idea as well.
    Pie chart should show value and percentage togethe... - PTC Community

      T
      TonyZhang16-PearlAnswer
      16-Pearl
      December 9, 2024

      Hi @javed_a,

      I see... In that case, you can consider hiding legend and letting users to mouse hover on the parts to see the tooltip for more information.

      Or display simplified view without values on an overview page, then if user clicks on a zoom-in icon or button, show a popup displaying a particular pie chart only to ensure you have enough space for fully displaying the pie chart values together with a legend.



      Thanks,

        T
        TonyZhang16-Pearl
        16-Pearl
        December 17, 2024

        Hi @javed_a,

        It appears that a response to this post answers your question.  For the benefit of other Community Members who may have the same question, it would be great if you could designate an appropriate one as the Accepted Solution.

        In the event that this response did not answer your question, please post your current status so that we can continue to support.
