CSS for formatting the reference lines of a line chart

  • August 5, 2025
  • 2 replies
  • 897 views

@Jam_Kirko

Could you possibly share the CSS for changing a reference line color if you still have it--from this topic?



Best answer by Sathishkumar_C
@supports (ptcs-style-unit: "PTCS-CHART-COORD") {
 [part~="y-refline"]:nth-child(1){
 background: repeating-linear-gradient(to right, red, red 4px, transparent 5px, transparent 8px);
 width: 100%;
 height: 2px;
 }
 [part~="y-refline"]:nth-child(2){
 background: repeating-linear-gradient(to right, green, green 4px, transparent 5px, transparent 8px);
 width: 100%;
 }
 [part~="y-refline"]:nth-child(3){
 background: repeating-linear-gradient(to right, blue, blue 4px, transparent 5px, transparent 8px);
 width: 100%;
 }
 [part~="y-refline"]:nth-child(4){
 background: repeating-linear-gradient(to right, rgb(243 192 17), rgb(243 192 17) 4px, transparent 5px, transparent 8px);
 width: 100%;
 }
}




Try to use the above CSS.

2 replies

S
Surya_Tiwari16-Pearl
16-Pearl
August 6, 2025

Hi @JK_10744682

  • Beginning with ThingWorx Platform 9.3.4, configuring different colors for reference lines is possible through Custom CSS code
@supports (ptcs-style-unit: "PTCS-CHART-COORD") {
 [part~="refline"]:nth-child(1){
 background-color:yellow;
 }
 [part~="refline"]:nth-child(2){
 background-color:red;
 }
}
J
JK_1074468213-AquamarineAuthor
13-Aquamarine
August 6, 2025

This is very helpful. Do you know of a way to get the colors to be by reference line number rather than coordinates? I want specific reference lines to be certain color but the CSS you showed has it so that the highest value line is one color and so on.

S
17-Peridot
Sathishkumar_C17-PeridotAnswer
17-Peridot
September 25, 2025

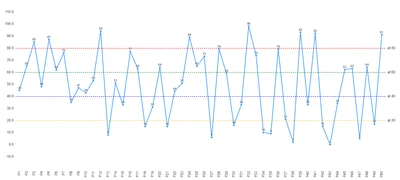

@supports (ptcs-style-unit: "PTCS-CHART-COORD") {
 [part~="y-refline"]:nth-child(1){
 background: repeating-linear-gradient(to right, red, red 4px, transparent 5px, transparent 8px);
 width: 100%;
 height: 2px;
 }
 [part~="y-refline"]:nth-child(2){
 background: repeating-linear-gradient(to right, green, green 4px, transparent 5px, transparent 8px);
 width: 100%;
 }
 [part~="y-refline"]:nth-child(3){
 background: repeating-linear-gradient(to right, blue, blue 4px, transparent 5px, transparent 8px);
 width: 100%;
 }
 [part~="y-refline"]:nth-child(4){
 background: repeating-linear-gradient(to right, rgb(243 192 17), rgb(243 192 17) 4px, transparent 5px, transparent 8px);
 width: 100%;
 }
}




Try to use the above CSS.
