how to use xy chart, can i join the XY points on the chart

how to use xy chart, can i join the XY points on the chart

This topic has been closed for replies.
posipovaAnswer
20-Turquoise
Feb 14, 2017 4:54 PM UTC

I've submitted an enhancement request, PSPT-3346. Corresponding article, https://support.ptc.com/appserver/cs/view/solution.jsp?n=CS256567&lang=en_US Will update this post and the article when/if the feature is implemented.

View in thread

11 replies

ttielebein5-Regular Member
5-Regular Member
Aug 19, 2016 2:53 PM UTC

Hello, which chart are you asking about? What exactly do you mean by joining points?

Thanks!

Tori

Translate
Michail1-Visitor
1-Visitor
Feb 14, 2017 3:27 PM UTC

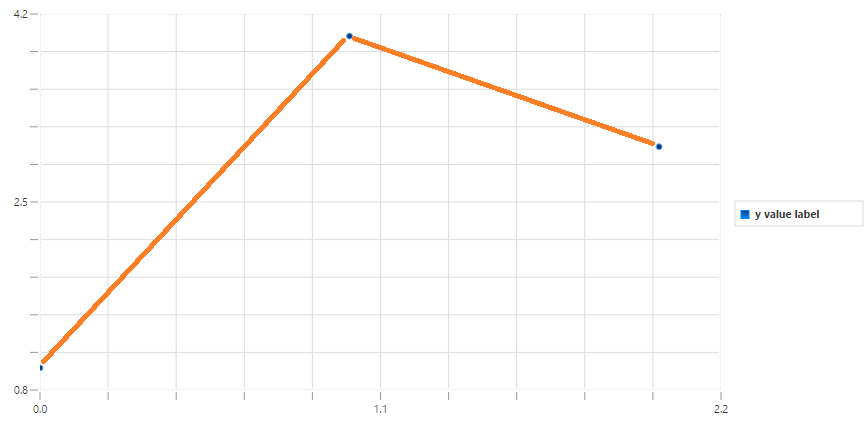

Tori Tielebein, I think he meant XY Chart, namely to be able to plot a line between two points (like in the pic below; orange lines were drawn in paint). The question is relevant to me as well. Thanks.

Translate
posipova20-Turquoise
20-Turquoise
Feb 14, 2017 3:43 PM UTC

mnudel​ XY chart is a scatter plot chart, so the feature of connecting the points with a line is not available. Perhaps a time series chart would suit your requirements better. Please find information in  the helpcenter: http://support.ptc.com/help/thingworx_hc/thingworx_7_hc/#page/ThingWorx_Core_Help_Center%2FThingWorxHelpCenterDITAFiles%2FMashupBuilder%2FWidgets%2FWidgetTypes%2FXYChartWidget.html

Translate
zyuan15-Regular Member
5-Regular Member
Feb 15, 2017 3:41 AM UTC

As mentioned that XY chart is a scatter plot chart, and it's actually not easy to automatic understand how will the User wants to connect every point. In general the line should go only in one direction, to the Right side, like what Time series chart would do. But by giving data that meets the formula: X^2 + Y^2 =4, I might want to draw a circle from it, because if I want a wave-shaped chart from same data set, I could use Line Chart instead.

For general usage we have Line chart, bar chart and others, so the XY chart here might be designed to draw pictures like Circles, Rectangular and other special shapes, or to be used as distribution chart for business analysis, and that might be why we don't have lines between each and every points in the first place  [This is how I suggest to use the XY charts]

Translate
aagarwal1-Visitor
1-Visitor
Feb 15, 2017 4:42 AM UTC

Hi,

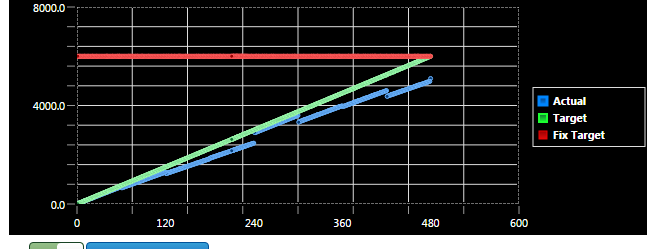

I had already tried this feature and i was able to join the points. For this you need to log your data in the stream and then using querypropertyhistory service you can plot that logged data on the xy-chart.xy-chart.PNG

Translate
    Michail1-Visitor
    1-Visitor
    Feb 15, 2017 9:10 AM UTC

    Anupriya Agarwal​, how would you handle negative values on the x-axis? This may seem like a workaround, but won't suit my application.  Ryan Yuan​,  there are plenty of algorithms available to do this sort of stuff, including curves and complex plane. One would have thought that CAD software giant like PTC would have something like this under their belt.

    Translate
    horphi1-Visitor
    1-Visitor
    Sep 7, 2018 9:49 AM UTC

    Hello,

    is the solution Jira PSPT-3346 already in sight?

    Translate
