Question

Pie Chart not showing colors

  • March 4, 2024
  • 1 reply
  • 2333 views

Hi Community Team,



I am using state based formatting in Pie chart to show the colors, earlier it was fine but since past few days the colors are not coming for some fields, but for certain inputs. But for one input all the colors are coming fine.

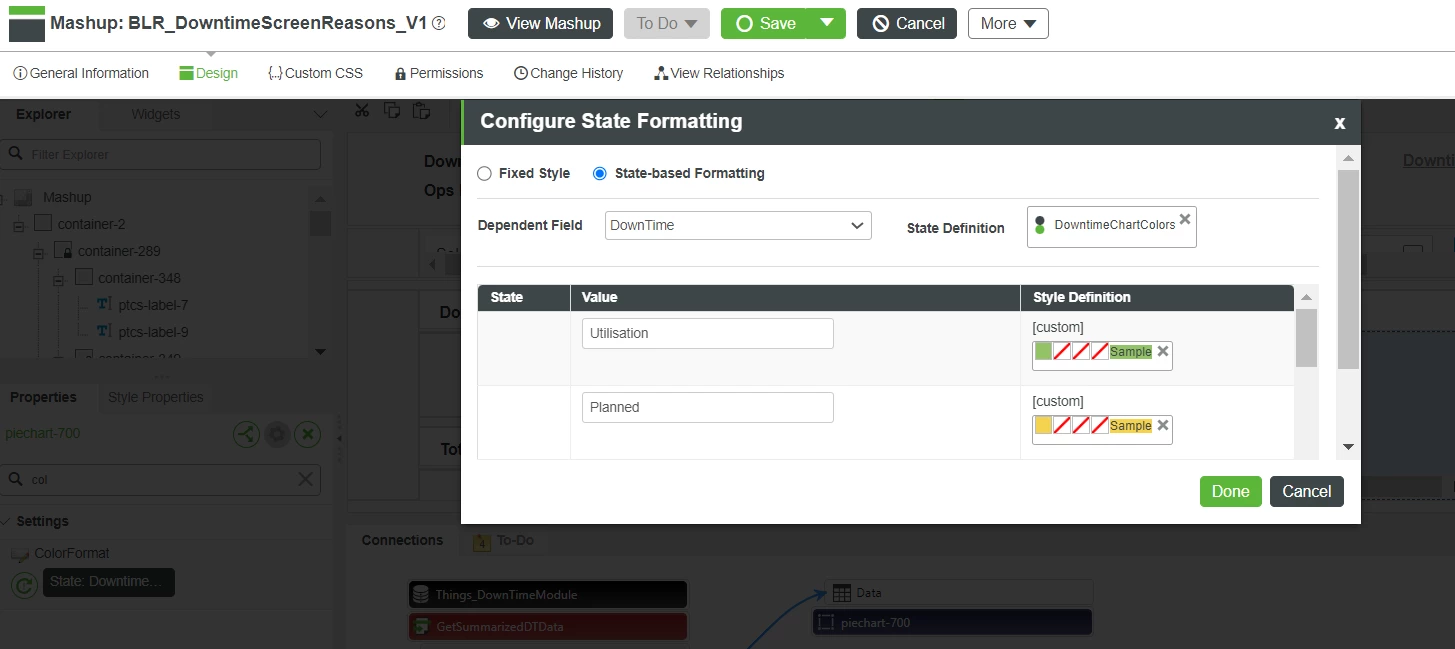

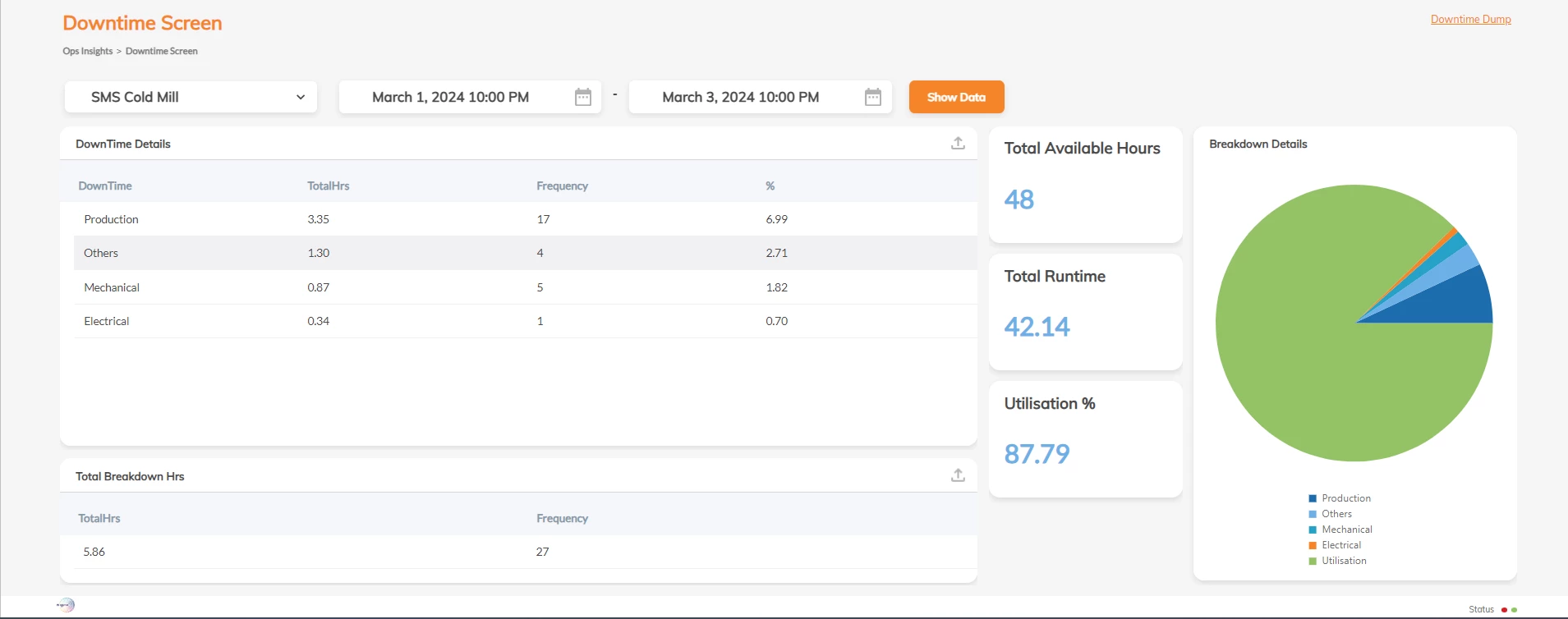

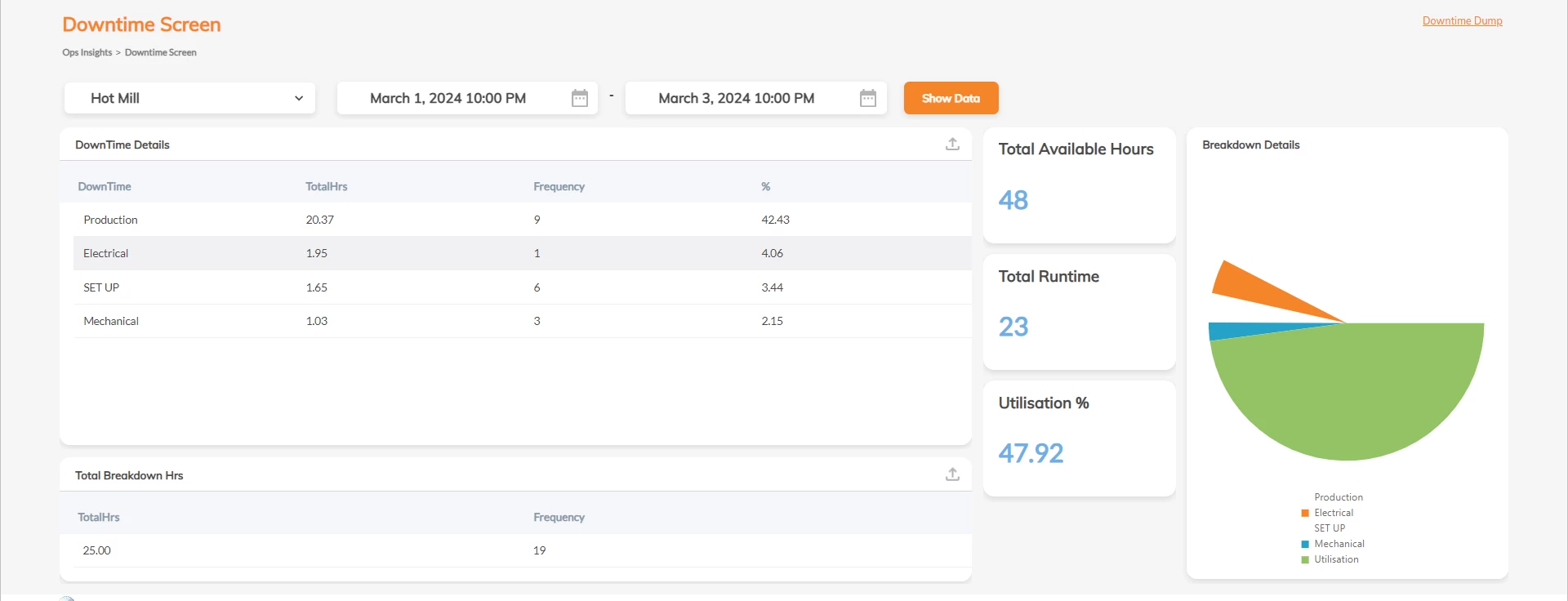

For eg : For Hot Mill, Production is coming as white but for SMS Cold Mill it is showing the right color.

1 reply

V
19-Tanzanite
Velkumar19-Tanzanite
19-Tanzanite
March 4, 2024

Hi @shraddha_21



Could you please post your service output?



Also, check whether State Definitions Value matches with Service Output values

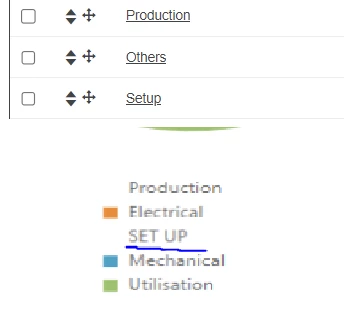

Here I can see SET UP is different from the state definition value Setup




/VR

S
shraddha_215-Regular MemberAuthor
5-Regular Member
March 4, 2024

Hi @Velkumar

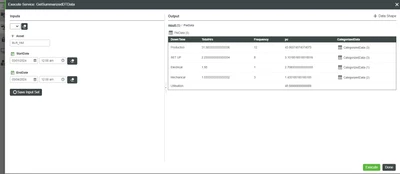

This is the service output. The state definition values I have corrected. One thing is that if I remove state definition color formatting, it comes fine.






V
19-Tanzanite
Velkumar19-Tanzanite
19-Tanzanite
March 5, 2024

Hi @shraddha_21



Based on sample data I found out null value for data Utilisation causing some issues in the Pie chart (in Thingworx 9.4.0)

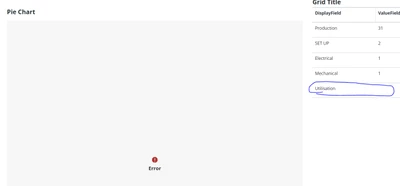

Null value:

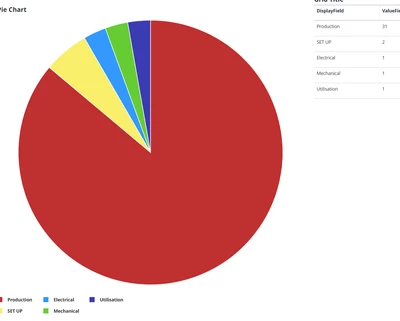

With some value:

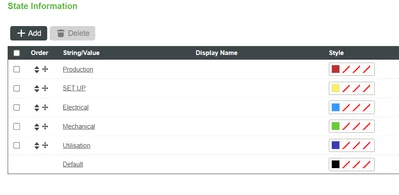

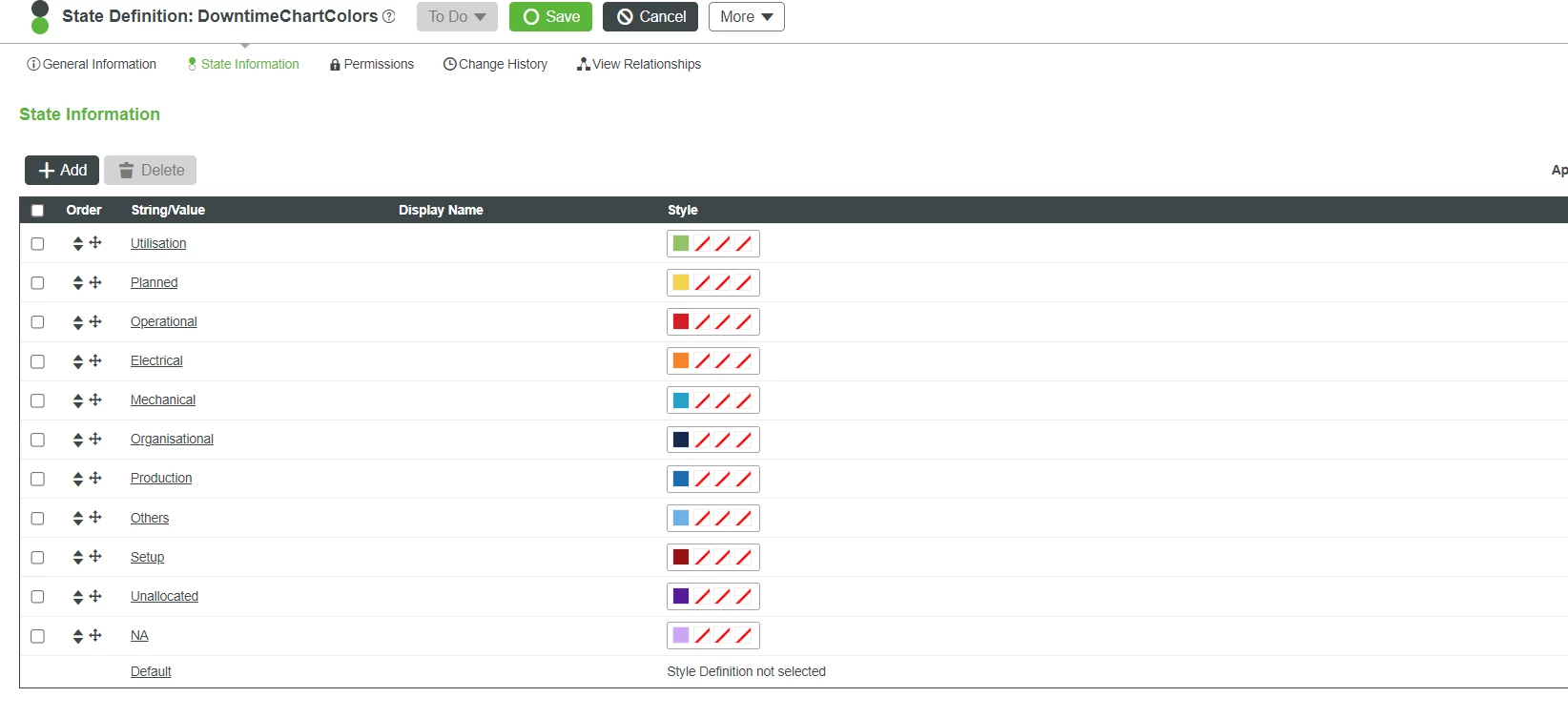

State Definition:


Please provide the Default value in the State Definition



Could you please make the null value to zero and try again. Also let me know your Thingworx version



What do you mean by "I remove state definition color formatting, it comes fine"



/VR
