Proportional Charts in Thingworx

  • March 19, 2025
  • 2 replies
  • 550 views

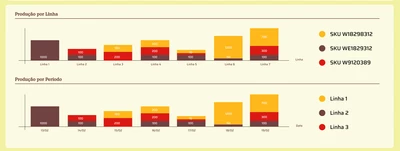

Hi everybody! I'm trying to do something like this with proportional charts:




This is a figma draw, but I'm in trouble to do this in Thingworx.

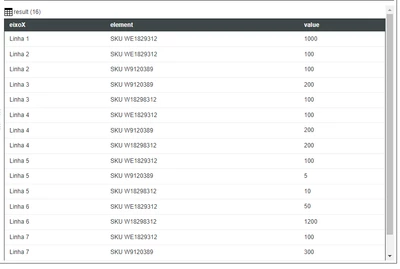

This was how I setted data:


I don't know if it is right but I want "eixoX" in Xasis, grouped "value" in Yaxis and "elements" for the legends like in the figma schema.

could you help me??



Best answer by Surya_Tiwari

Hi, @GABRYEL25770  Can you take a look at the article below?

https://www.ptc.com/en/support/article/CS377694

2 replies

S
Surya_Tiwari16-PearlAnswer
16-Pearl
March 20, 2025

Hi, @GABRYEL25770  Can you take a look at the article below?

https://www.ptc.com/en/support/article/CS377694
