Unable to show colors on pie chart

I tried  to bind colorformats dynamically on pie chart from an infotable service output . But colors are not applied on pie chart.Please find the attached screenshots.Let me know where It went wrong.Thanks in advance

khayes1Answer
1-Visitor
March 13, 2020

You just need to extend the original that I sent you to have more states & alter the service to take a 'type' input parameter.

K



View in thread

9 replies

raluca_edu
raluca_edu17-Peridot
17-Peridot
March 10, 2020

Hi,



Could you attach entities to reproduce this issue?

What version of Thingworx you are using?



Thank you,

Raluca Edu

Translate
krishnakomal12315-MoonstoneAuthor
15-Moonstone
March 10, 2020

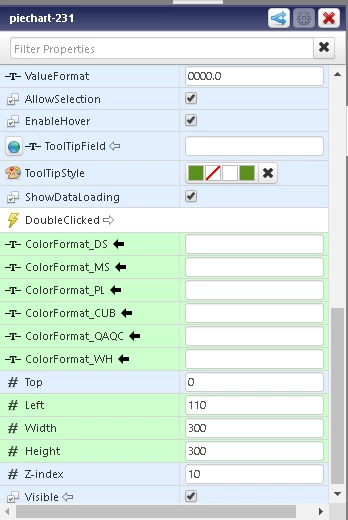

As requested I have attached th xml file below.ON mashup load you can see a pie chart with colors left bottom.After clicking on right/left button beside pie chart,I am giving dynamic colors.Then it's not working.Thanks in advance



Thingworx version : 8.3.2

Translate
khayes11-Visitor
1-Visitor
March 10, 2020

Is the answer that your info table should return something more like

PropertyName: SegmentName   (e.g. "MS" or "CUB")

PropertyValue :  300    (some integer value)



Then you need a state definition tied to the 'PropertyName' parameter to give you the colour you requiire.



We use the pie chart for a similar thing and our infotable looks like this

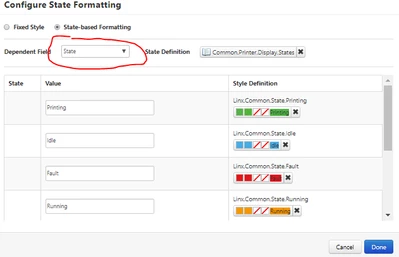

We then have a state definition like the below which is tied to the 'State' parameter:




so rather than your infotable having a column for each type ("MS", "CUB" etc.) you have an infotable with one column for the type parameter and return a number of rows .

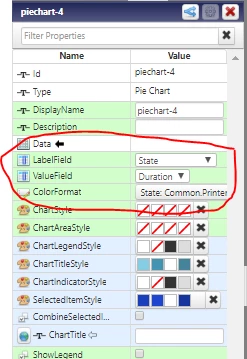

The pie chart is then bound to All Data from infotable service and the pie chart settings are set accordingly. In our case:
