Animation of CAD model

To animate the CAD model, e.g. for following instruction, is CREO Illustrator the only method?

tmccombieAnswer
21-Topaz I
Feb 27, 2018 7:53 PM UTC

You can also use model-items and javascript to animate your model.

View in thread

8 replies

tmccombie21-Topaz IAnswer
21-Topaz I
Feb 27, 2018 7:53 PM UTC

You can also use model-items and javascript to animate your model.

Translate
    izdane1-Visitor
    1-Visitor
    Aug 8, 2018 8:04 PM UTC

    How would you go about animating a model in javascript?

    Translate
    AllanThompson16-Pearl
    16-Pearl
    Aug 9, 2018 6:19 AM UTC

    Have a look at the Studio Sample Quadcopter that you should have in your Projects list.  It's got a bunch of movement examples that are a great resource.



    Also have a look at the example in the Tutorials in the Help files: Translate Models and Model Items Using JavaScript



    Hope this helps,



    Allan

    Translate
      Matteo_198716-Pearl
      16-Pearl
      Aug 3, 2018 3:26 PM UTC

      sono arrivato fino al punto 6 poi non capisco come fai ad aprire due illustrate.

      Me lo puoi spiegare meglio?

      Grazie mille.

      Translate
      JingMaoCheng13-Aquamarine
      13-Aquamarine
      Aug 4, 2018 2:53 AM UTC

      Hi Matteo,

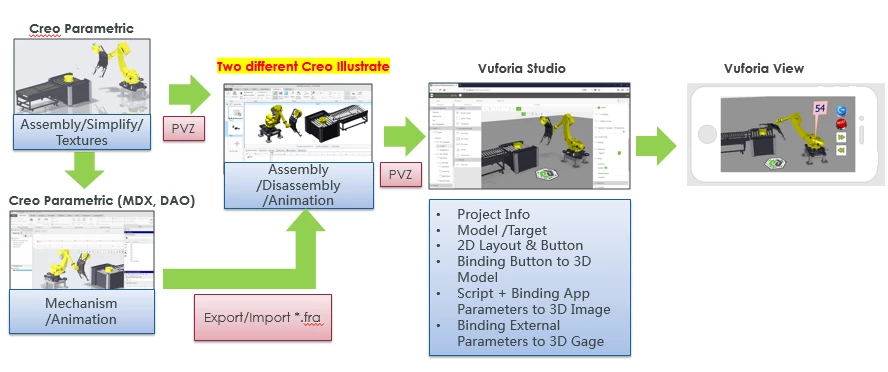

      Creo Illustrate can't create animation and kinematic mechanism  easily. We can use workaround to this instead of Creo Illustrate animation. You can refer to the link below for more detailed information.

      https://community.ptc.com/t5/Studio/Is-possible-to-Play-an-Animation-not-a-Sequence-in-TWS-from-Creo/m-p/545977






      Translate
      Matteo_198716-Pearl
      16-Pearl
      Aug 19, 2018 6:13 PM UTC

      Hi JingMao Cheng,

      I managed to create the sequence passing from the animation. (PROCEDURE: once you have loaded the .fra file done with the mechanism and created the animation, I copy the frame and move to the sequence without using 2 licenses).

      In illustrate version 4.2, everything works correctly (see file illustration2.c3of)

      When I load the pvz in Vuforia studio and I go to use this sequence it does NOT work. The preview even stops. (See experience: PROVA_RONDO.zip)

      A questo link trovi i files: https://we.tl/t-Oq2ITieWhD

      Translate
