Arrows from Illustrate didn't show up in Viforia Studio

  • August 24, 2023
  • 2 replies
  • 2202 views

Hello PTC community,

Please advise how I can solve the issue; I animated 3d arrows in Creo Illustrate but they did not show up in Vuforia Studio. Can I still make the show up somehow? Arrows go all over the 3d model to point users to little parts so I wish I can keep them. If you know a simple solution to point user to little  hidden parts please advise.






Best answer by sgreywilson

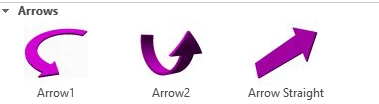

Currently arrows do not transfer (in the past I used models added to the bom structure - see attached arrow ).



Another approach is to use Waypoints




2 replies

S
sgreywilson16-PearlAnswer
16-Pearl
August 24, 2023

Currently arrows do not transfer (in the past I used models added to the bom structure - see attached arrow ).

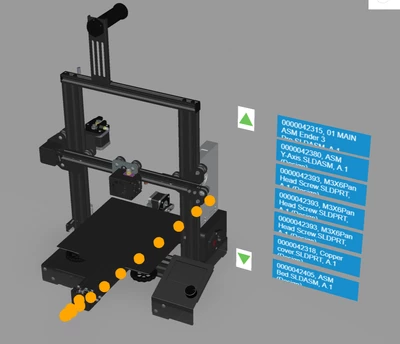

Another approach is to use Waypoints




    I
    IB_1064521013-AquamarineAuthor
    13-Aquamarine
    August 25, 2023

    @sgreywilson Thank you so much for the solution. I have started to learn the Wayfinder widget. Could you please share this project so I can learn?

    S
    sgreywilson16-Pearl
    16-Pearl
    August 28, 2023

    This video should help https://www.brainshark.com/ptc/vu?pi=zJ5zicwUVzBRxnz0



    I don't have a simple project - The one in the video has that  Pager panel which is a little complex and probably not a good example - I developed the pager for HoloLens and just copied it into this to explore Waypoints.



    This extension might help https://github.com/stevegw/COEWayfinderPoints



    Let me know



      M
      mwodarz_INNEO14-Alexandrite
      14-Alexandrite
      August 30, 2023

      Only models in the sBOM (service structure) are transferred to Vuforia. For this reason I have duplicated the standard OL files to insert them into the service structure. Attached, you'll find these files. Note that many files have been duplicated so that they can be imported multiple times for different sequence steps.
