don´t show symbol in my animation

  • May 21, 2018
  • 1 reply
  • 13302 views
Why do not the symbols appear in the animation in my application? , you do not see the screwdrivers or the
arrows

(view in My Videos)
Best answer by ClayHelberg

Symbols don't transfer from Creo Illustrate to Thingworx Studio. There is a workaround, which is to add the actual symbol models to your BOM in Creo Illustrate. To do this, find your Creo Illustrate symbols library (usually in {user-directory}\AppData\Roaming\PTC\Illustrate\SymbolsLibrary\Shape), and import the *.ol model for the symbol you want into your illustration. Use this instead of the Symbols feature in Creo Illustrate, and it will carry over when you bring it into Thingworx Studio.



--Clay

1 reply

C
ClayHelberg18-OpalAnswer
18-Opal
May 22, 2018

Symbols don't transfer from Creo Illustrate to Thingworx Studio. There is a workaround, which is to add the actual symbol models to your BOM in Creo Illustrate. To do this, find your Creo Illustrate symbols library (usually in {user-directory}\AppData\Roaming\PTC\Illustrate\SymbolsLibrary\Shape), and import the *.ol model for the symbol you want into your illustration. Use this instead of the Symbols feature in Creo Illustrate, and it will carry over when you bring it into Thingworx Studio.



--Clay

    E
    emmanuel00a11-Visitor
    1-Visitor
    May 23, 2018

    hi, do you have a example or video or screenshot?

      C
      ClayHelberg18-Opal
      18-Opal
      May 24, 2018

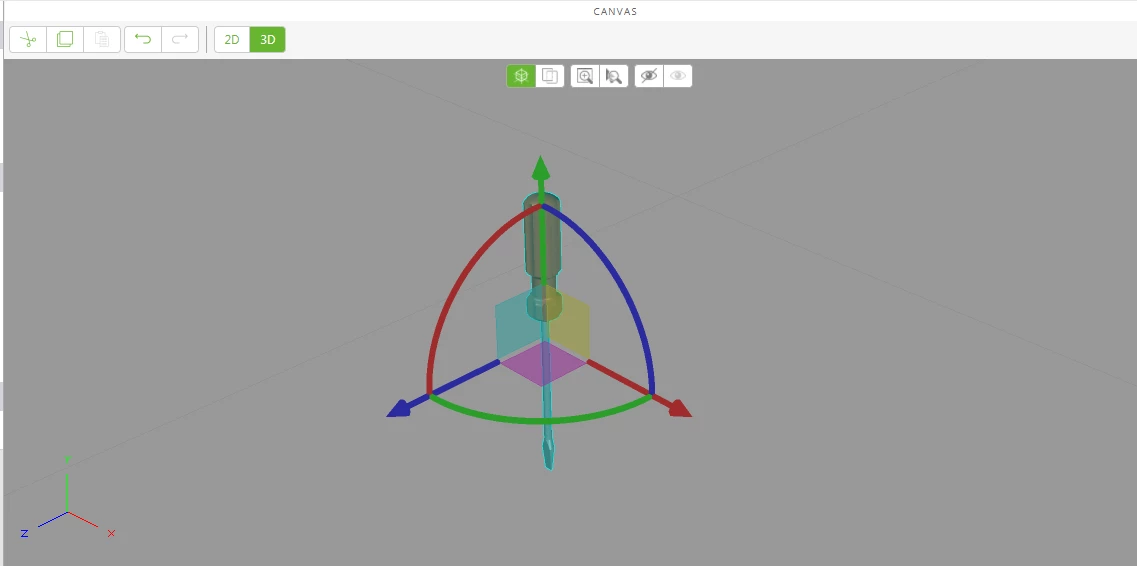

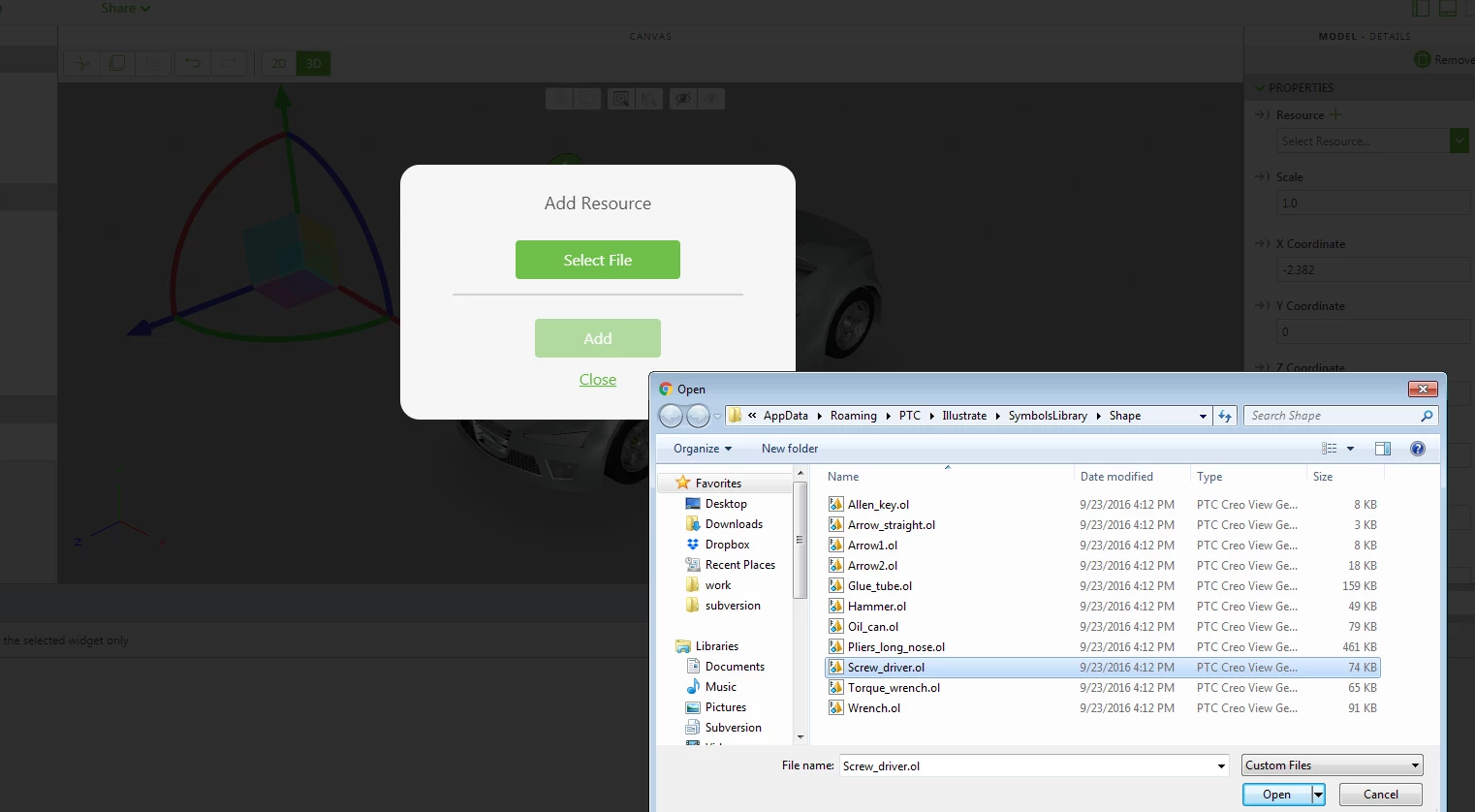

      Here are a couple of screenshots, showing loading the symbol model from the symbol library, and then showing the loaded model in the studio canvas.
