Explode model from source code (without illustrate)

Hello @GianVal ,

so far , this should be  possible but   ...   you need to implement some mechanism that will check if there is some overlapping of geometry - intersections of parts when they are moved etc..  To implement this could requires some more complex considerations and at the end could  be more difficult (I never check it to estimate it most of the cad systems provides this functionality )  -> you need to know the information of the bounding box of the root assembly respectively the subassemblies and all the parts so they could be moved without overlapping.

Another question is if you already defined modelItem widgets or you want to define an explode  state without explicit widget definition - this also should be possible. So you can create a list with movements which could be applied to the components (selections:  modelWidgetName+"-" + componentPath)

Here is a simple example which shows how to set a property of a model components. In this case you need first to prepare a list of all components where properties should be changed and in this list you need to specify the property to set (for explode state you need in fact only the the translations  "x", "y" and "z"

Here a sample of property definitions property1.json:

{"3DLabel-1":{"visible":true,"text":"This is test2 Ventil ASM"},"model-1-/12":{"color":"rgba(255,0,0,1.0);","hidden":true},"model-1-/21/11":{"color":"rgba(0,0,250,1.0);","hidden":false},"model-1-/7":{"color":"rgba(0,0,128,1.0);","z": 0.0,"rz":0.0},"model-1-/26":{"color":"rgba(200,150,20,1.0);"},"model-1-/21/7":{"color":"rgba(0,255,0,1.0);","hidden":false,"x":0.0},"model-1-/19":{"color":"rgba(255,200,0,1.0);"},"model-1-/30":{"color":"rgba(0,30,200,1.0);","hidden":true},"model-1-/21/13":{"color":"rgba(128,0,128,1.0);","hidden":false},"model-1-/19":{"color":"rgba(255,0,100,1.0);","hidden":false},"model-1-/21/17":{"color":"rgba(0,0,255,1.0);","hidden":false,"x":0.0,"y":-0.02,"opacity":0.7},"model-1-/21/18/1":{"color":"rgba(0,0,255,1.0);","hidden":false,"x":0.0},"model-1-/27":{"color":"rgba(0,230,0,1.0);"},"model-1-/28":{"color":"rgba(100,100,0,1.0);"}}

to apply this list we need some javascript code like this e.g.:

$scope.app.loadPropertyJson= function(fileJson) {
doRead('app/resources/Uploaded/'+fileJson);
};
....
....
$scope.jsonData={}; //global $scope variable

gotJSON=function(data){
 try{
$scope.jsonData=JSON.parse(data);
 console.warn( JSON.stringify($scope.jsonData))
 $scope.setMutipleProps($scope.jsonData)
 }
catch(wrong){ console.warn(wrong);}

}
doRead=function (jsonFile){
fetch(jsonFile)
 .then(response=>response.text())
 .then(data=>gotJSON(data))
}
//-------------------
$scope.setMutipleProps = function(obj){

 Object.keys(obj).forEach(function (item) {

 for(var prop in obj[item]) {
 if( ! isModelItemSelection(item)) {
 $scope.view.wdg[item][prop]=obj[item][prop];
 //print the setting for debugging
			 console.log("WDG SET==>$scope.view.wdg["+item+"]["+prop+"]="+obj[item][prop] )
 		$scope.$applyAsync();}
 else{
 //tml3dRenderer.setProperties(item, {prop:obj[item][prop]} );
 //tml3dRenderer.setProperties(item, {hidden:true} );
 var my_obj={};
 my_obj[prop]=obj[item][prop];
 //tml3dRenderer.setProperties(item, JSON.parse("{"+prop+":"+obj[item][prop]+"}") );
 console.warn("obj => "); console.warn( my_obj )
 switch(prop) {
 	case "hidden"	: tml3dRenderer.setProperties(item, my_obj );console.log("hidden ");break;
 case "opacity"	: tml3dRenderer.setProperties(item, my_obj );console.log("opacity ");break;
 // case "phantom"	: tml3dRenderer.setProperties(item, my_obj );console.log("phantom ");break;
 // case "decal"	: tml3dRenderer.setProperties(item, my_obj );console.log("decal ");break;
 case "color"	: tml3dRenderer.setColor(item, my_obj[prop] );console.log("setColor ");break;
 	case "x"		: tml3dRenderer.setTranslation(item,parseFloat(my_obj[prop]),0.0,0.0 );
 					 console.log("setTranslation ");break;
 		case "y"		: tml3dRenderer.setTranslation(item,0.0,parseFloat(my_obj[prop]),0.0 );
 					 console.log("setTranslation ");break;
 		case "z"		: tml3dRenderer.setTranslation(item,0.0,0.0,parseFloat(my_obj[prop]) );
 					 console.log("setTranslation ");break;
 	case "rx"		: tml3dRenderer.setRotation(item,parseFloat(my_obj[prop]),0.0,0.0 );
 					 console.log("setRotation ");break;
 		case "ry"		: tml3dRenderer.setRotation(item,0.0,parseFloat(my_obj[prop]),0.0 );
 					 console.log("setRotation ");break;
 		case "rz"		: tml3dRenderer.setRotation(item,0.0,0.0,parseFloat(my_obj[prop]) );
 					 console.log("setRotation ");break;
 case "scale"	: tml3dRenderer.setScale(item,parseFloat(my_obj[prop]),parseFloat(my_obj[prop]),parseFloat(my_obj[prop]) );
 					 console.log("setScale ");break;

 $scope.$applyAsync();
 default: console.log("prop : "+prop+" is not used");
 }
 console.log("SEL SET==>tml3dRenderer.setProperties("+item+",{"+prop+":"+obj[item][prop]+"}" )
 } }

 							})

$scope.$applyAsync();
};

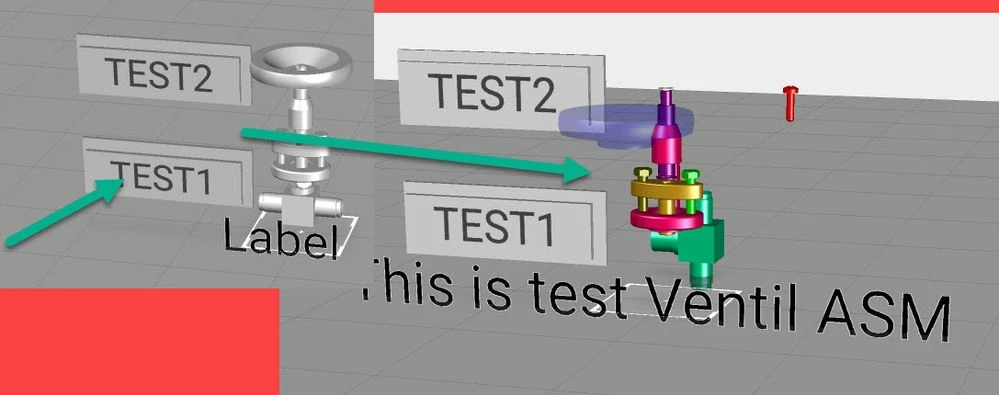

e.g. when we call this code of test assembly this will set the properties according to the list file .json

I attached the test project to this post so you can check it. Thanks
