Hide a part by Model Item

Hi,

Please let me know if there is any chance to hide a part by Model Item in Thingworx Studio.

If there are any other ways also is ok for me.

Regards,

Thadeus.D

katteAnswer
5-Regular Member
Aug 2, 2017 1:54 PM UTC

Yes, it is possible to hide the Model Item by setting its visible property to false.

4 replies

katte5-Regular MemberAnswer
5-Regular Member
Aug 2, 2017 1:54 PM UTC

Yes, it is possible to hide the Model Item by setting its visible property to false.

Translate
12-Amethyst
Aug 2, 2017 3:48 PM UTC

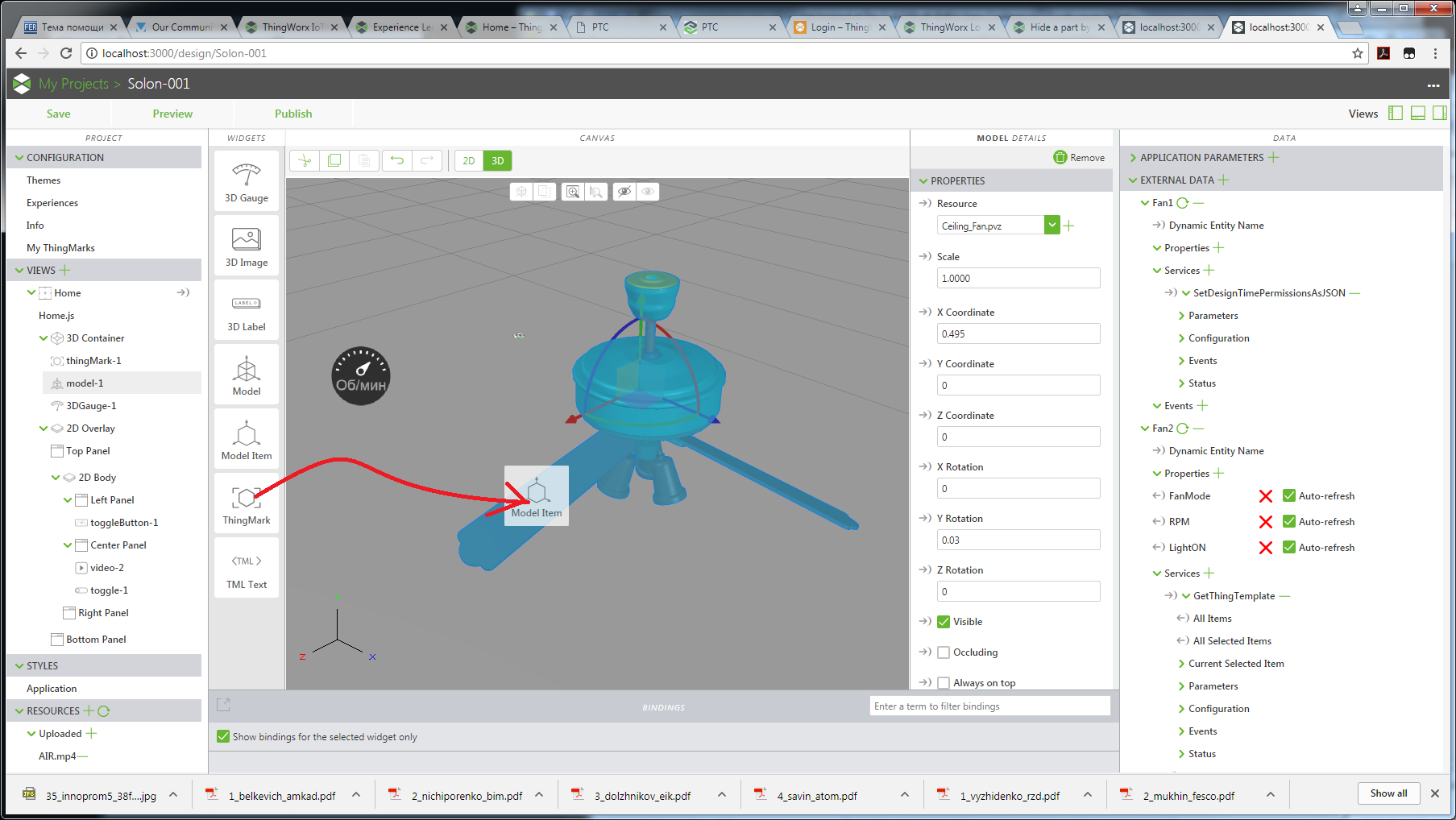

Select "ModelItem" Widget Icon on Widgets menu of 3D CANVAS (press and hold LMB, drag "MopdelItem" icon onto required part of the model and then release mouse button:

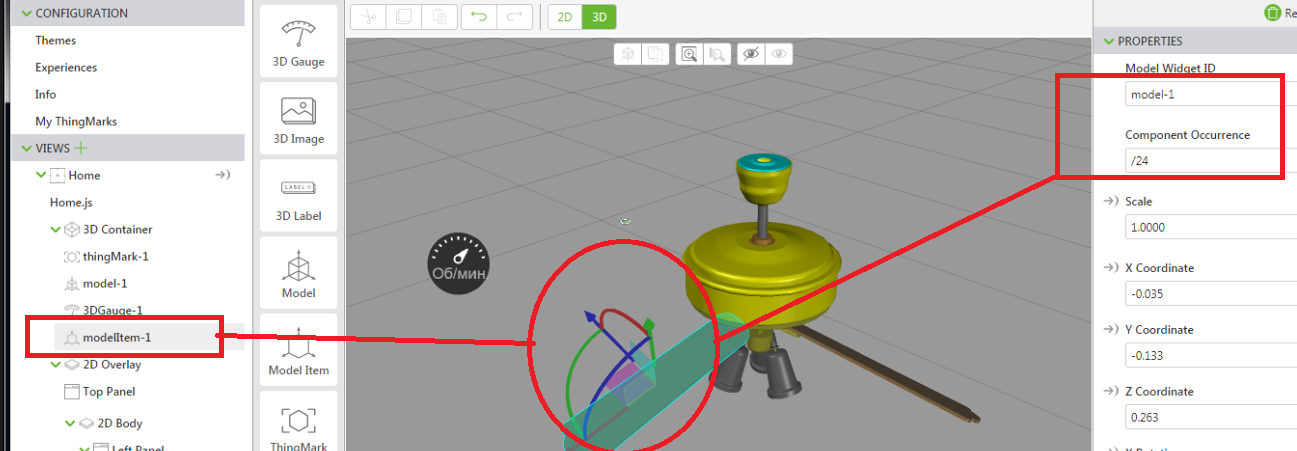

You can see selected part of the model in 3D CANVAS :

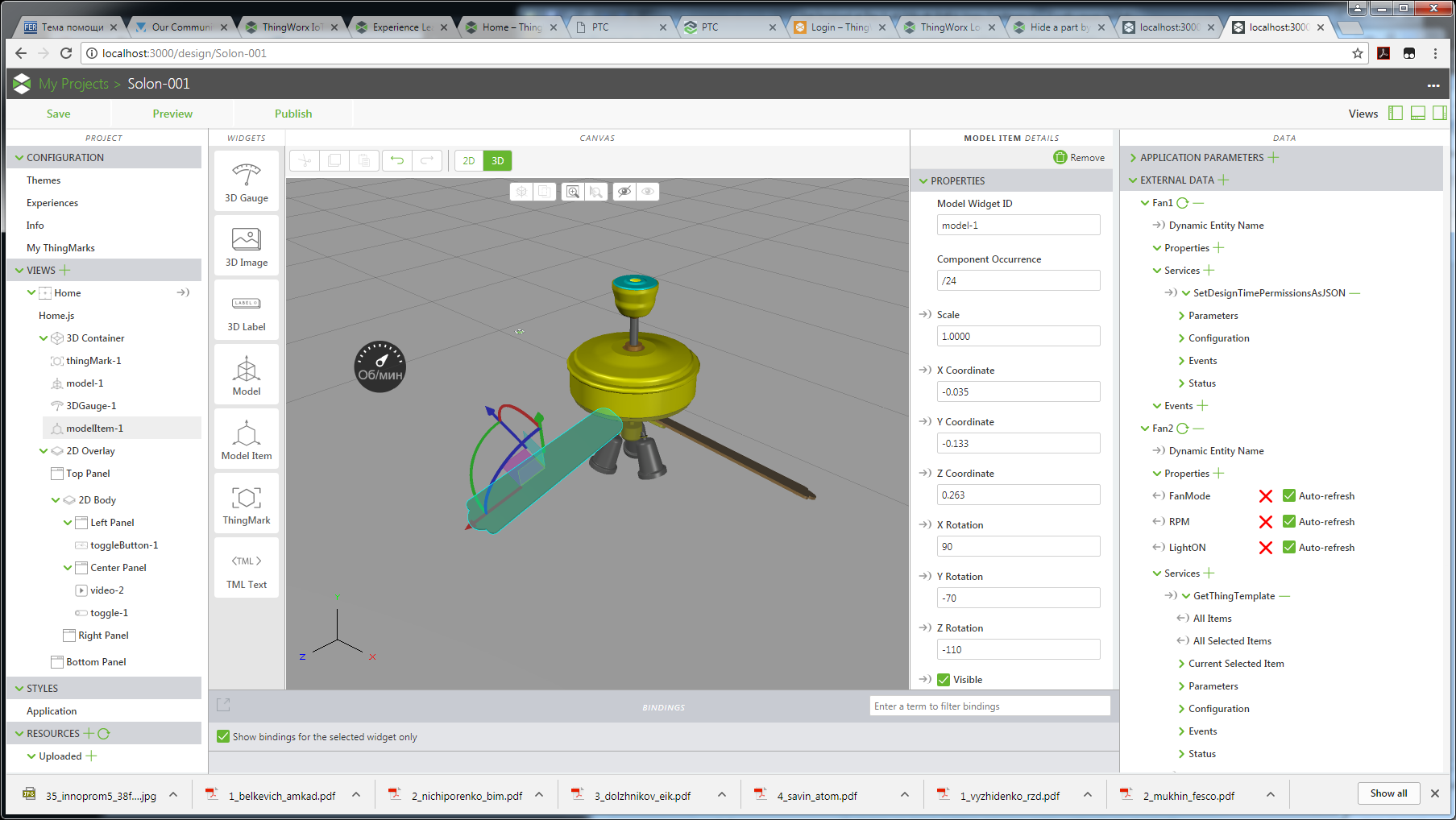

As you can see in the "Model Item Details" pan - you now focused on Component (here - /24) and from now you can operate with this Component of Model separately.

For hide this part (i.e. "Component") you could prepare for example 2D Toggle button

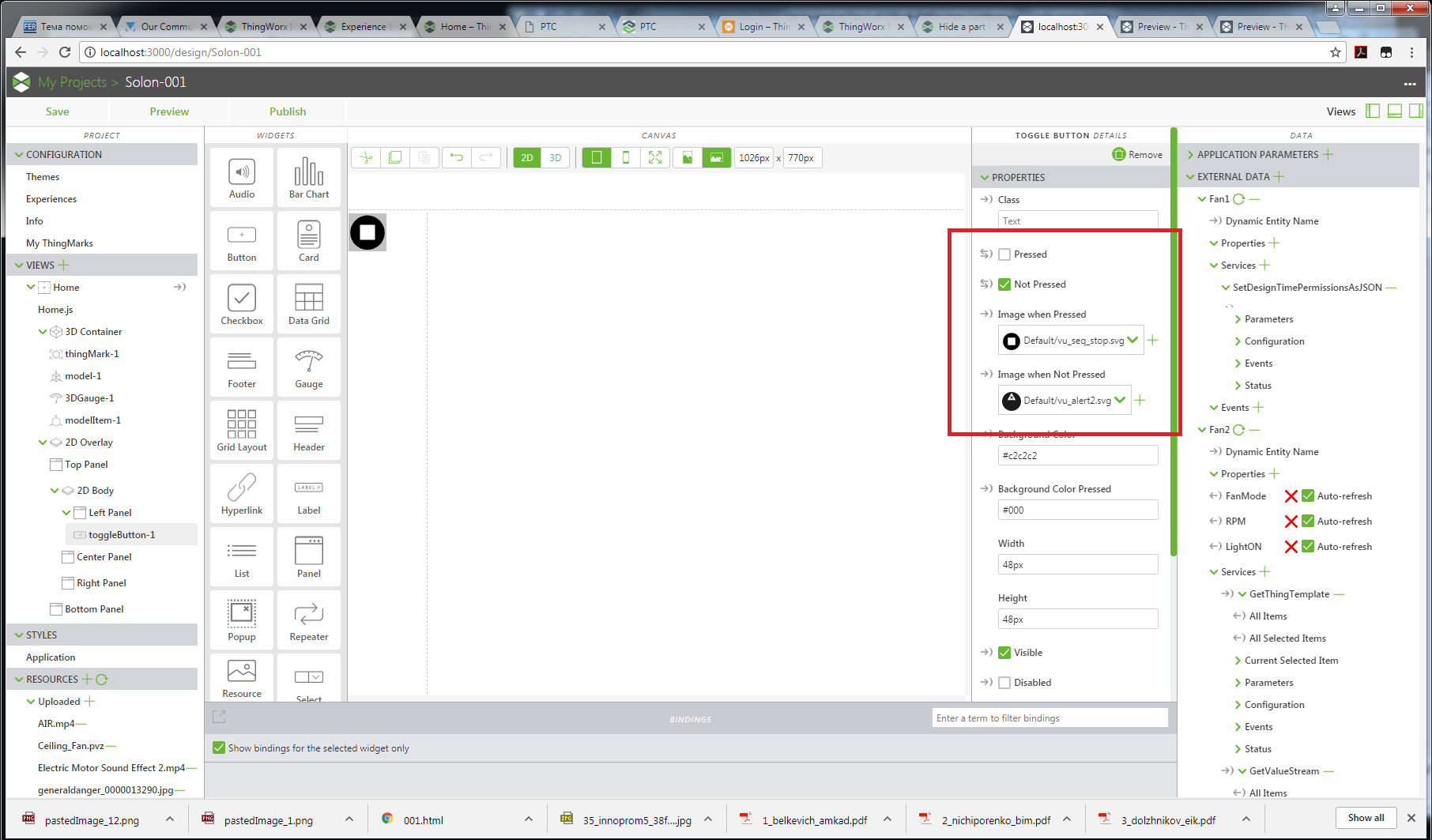

(only for example I select two different PNG-icons as shown below. I don't understand but I need select "Not Pressed" and unselect "Pressed" properties of this toggle-button, but under such conditions it works right otherwise we cannot see hide-unhide function)

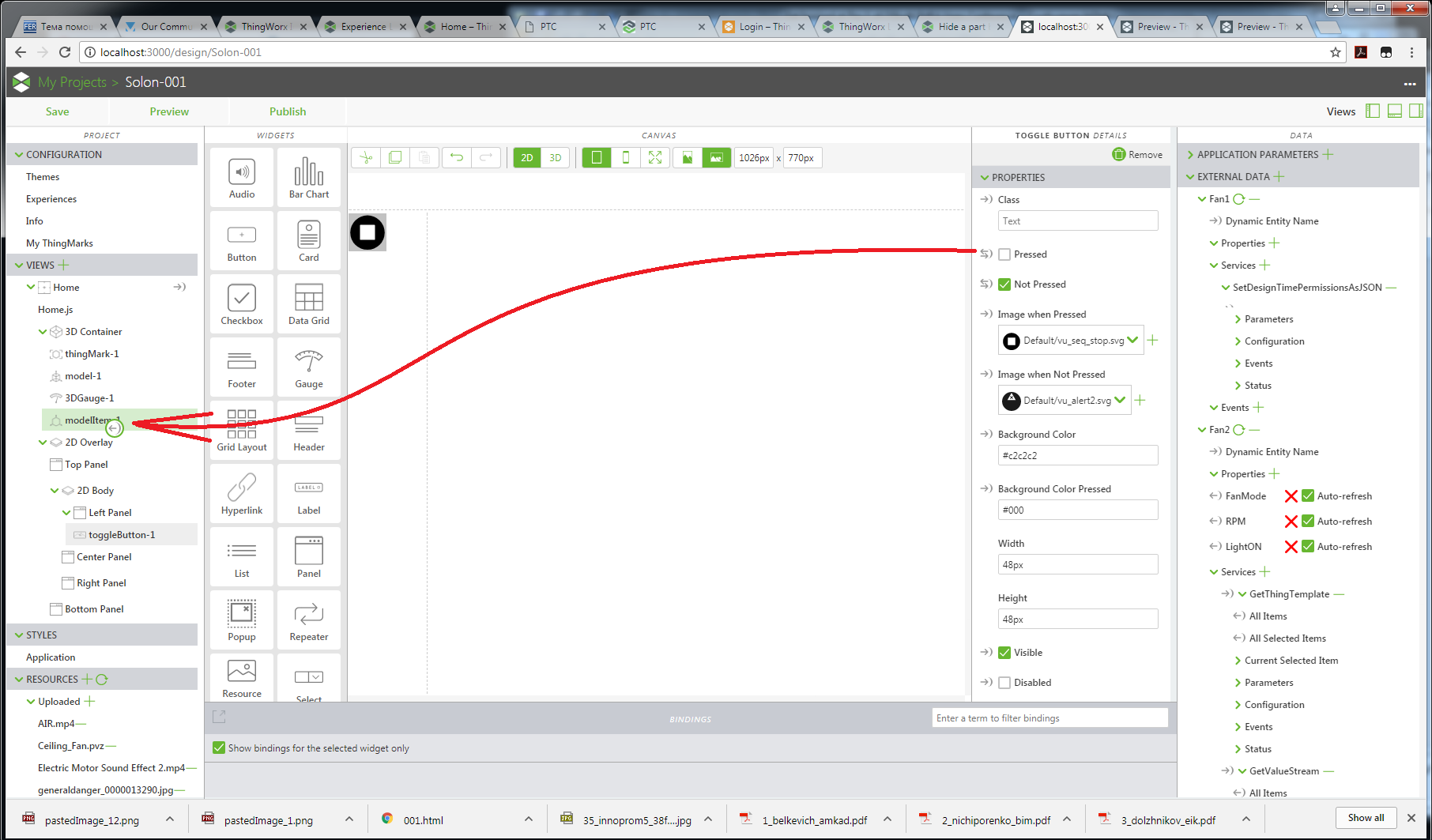

and  bind it with modelItem-1 on the "PROJECT - Views" pan.

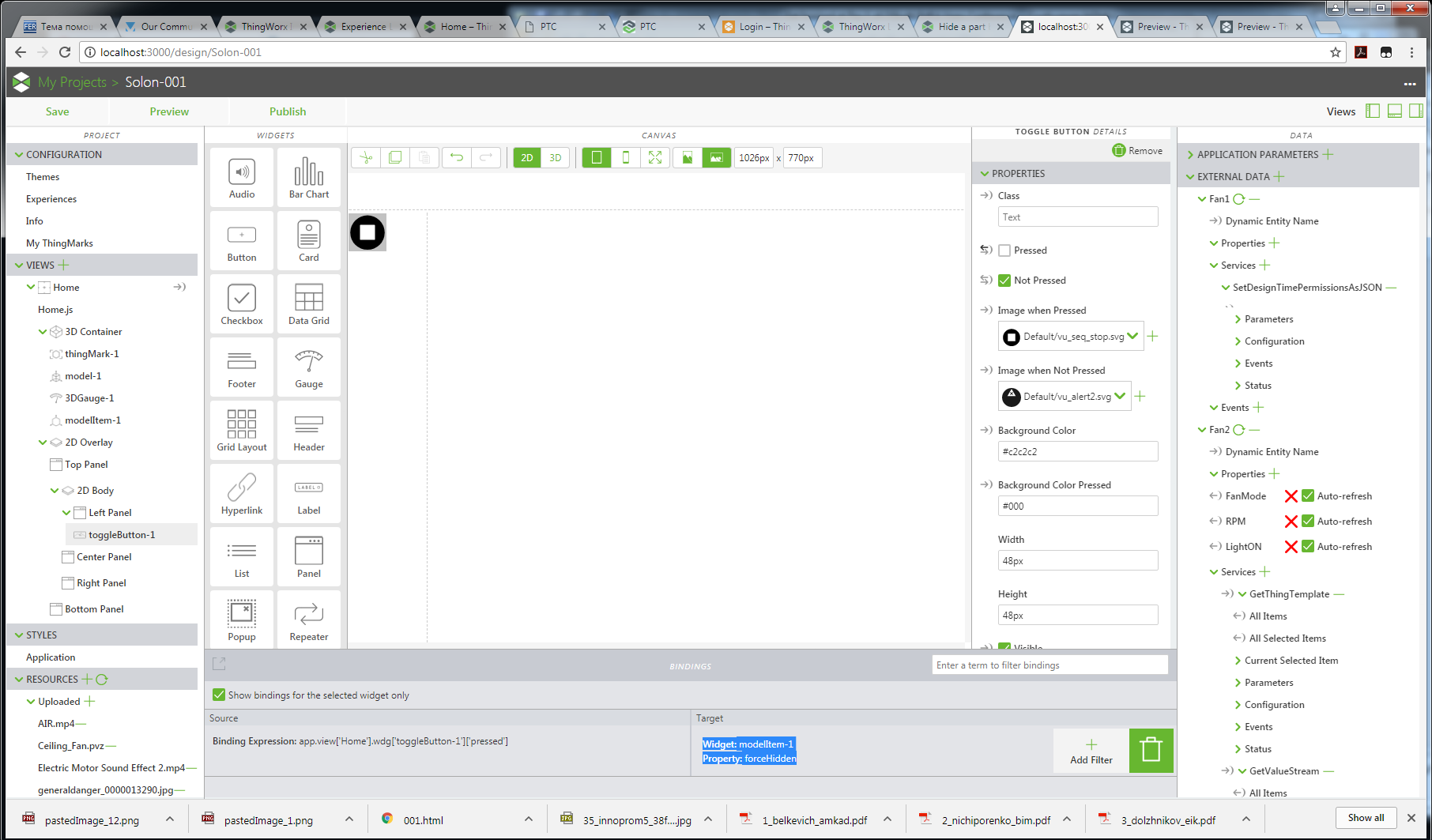

For hide you can use "Pressed" property of toggle-button for Hide

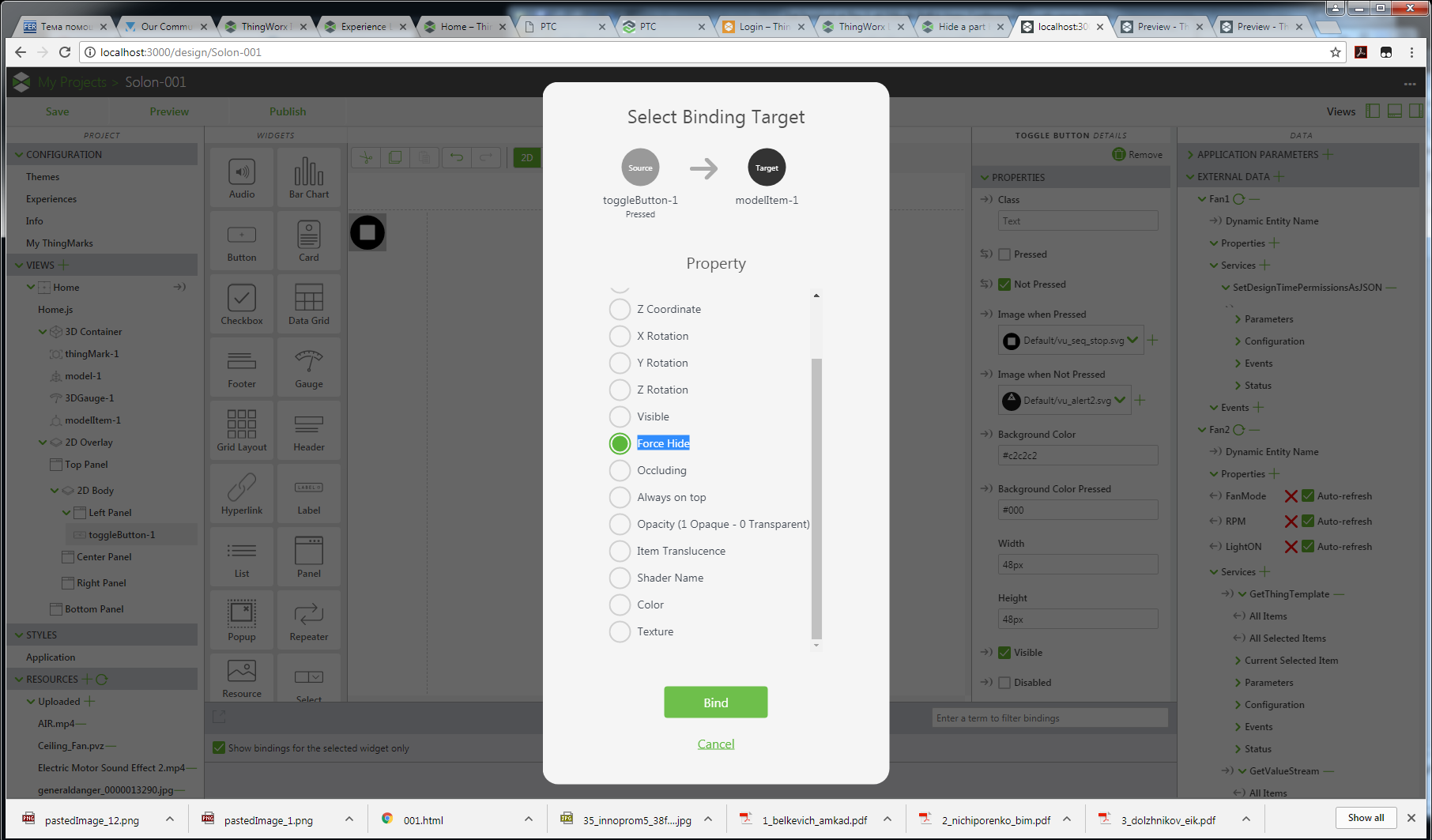

(for do it select In the binding menu "ForcedHidden" or "Visible" properties, then press "BIND" ):

And now you can see in the BINDINGS-pane on the gray bottom area new  binding between selected component "modelItem-1" and the toggle-button:

Now you can use ToggleButton for hide/unhide the only component of the Model.

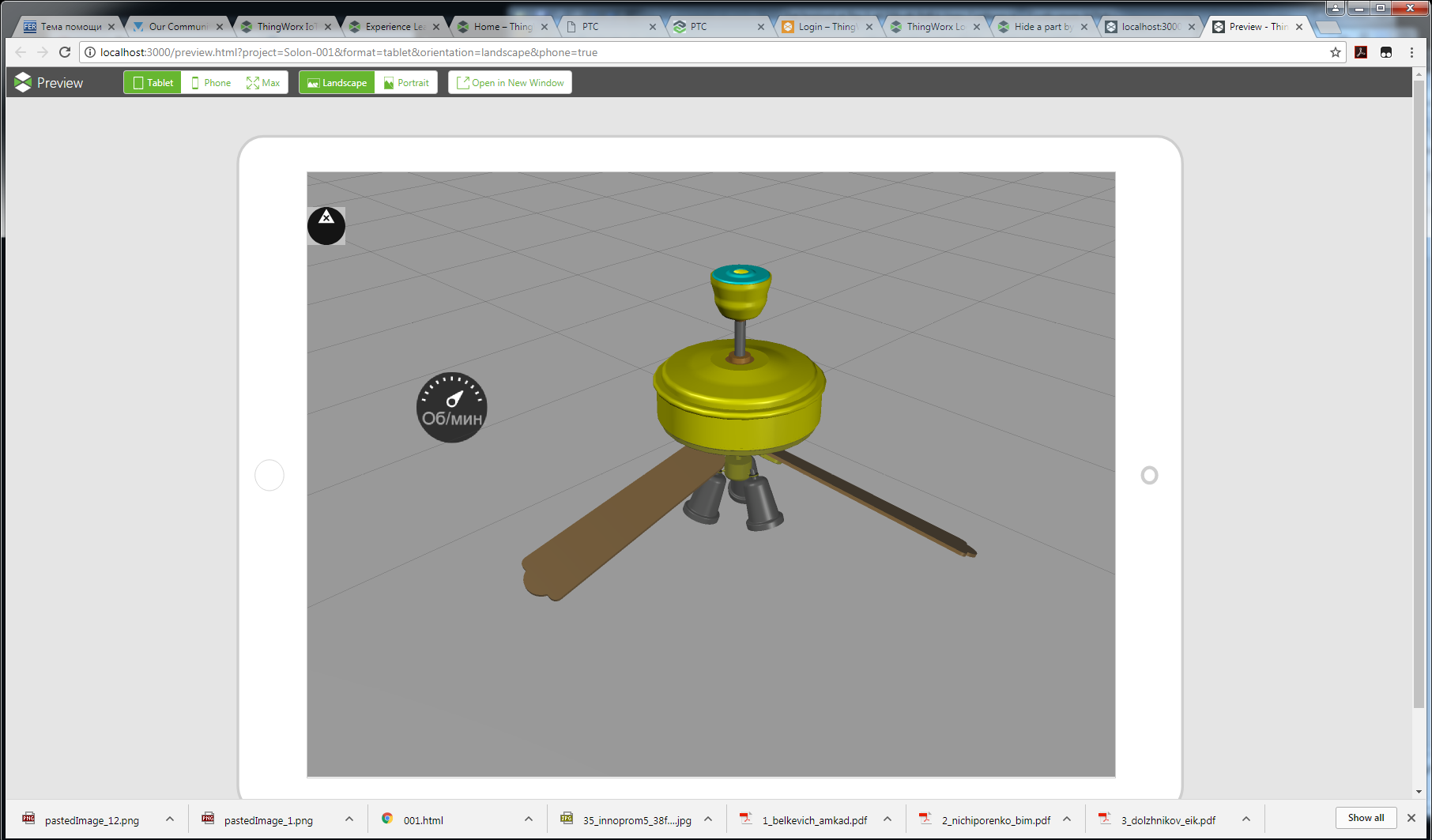

(Toggle-Button is "Not Pressed":)

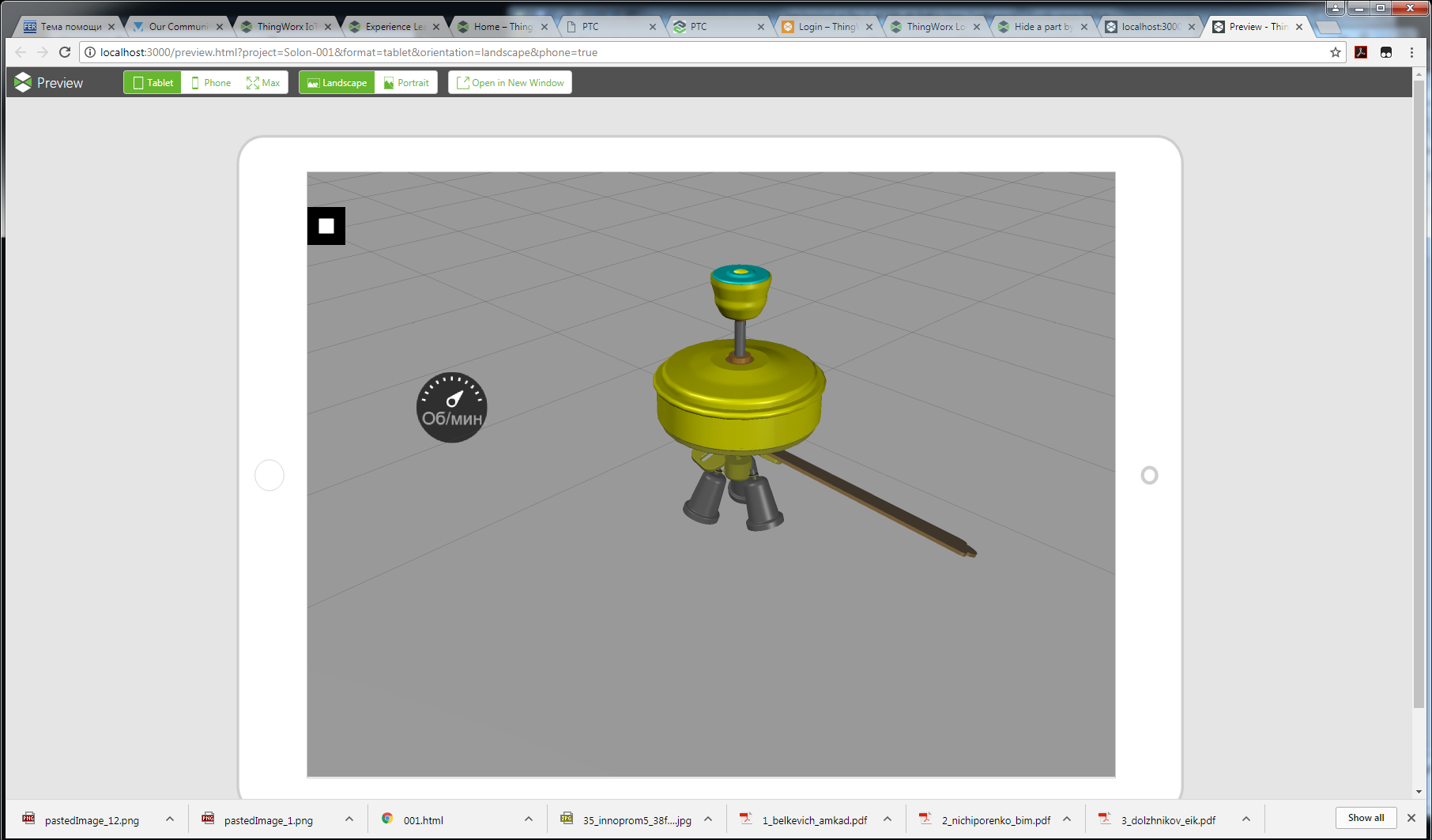

(And now it is "Pressed" - our Component is hidden:)

(Now press yet another time our Toggle-Buttoh - we can see our Component again:)

= = = = =
