How can I animate .svg image in Vuforia Studio

Question

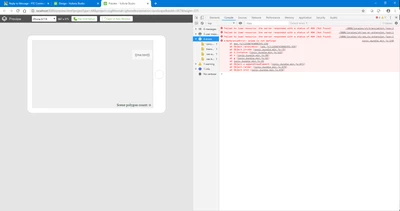

Hello, I want to animate .SVG file in Vuforia Studio. I have .SVG file and I am able to animate it on Google Chrome, but in VS it's not working. Can anyone explain me how to animate? please find attached .svg file for reference. This is SVG Code which I am using: and this is Javascript code: var timeline = anime.timeline({ autoplay: true, direction: 'alternate', loop: true }); function setDash(el) { if (el.nodeName === 'path') { el.style.dashArray = anime.setDashoffset(el); return [anime.setDashoffset(el) - 1, 0]; } return 0; } var animations = [ { name: '.t1', x: 195.47816, y: 152.84847, stroke: '#dd5d20' }, { name: '.t2', x: 254.09133, y: 152.65768, stroke: '#0b9444' }, { name: '.h1', x: 387.71374, y: 152.65768, stroke: '#1f91ac' }, { name: '.h2', x: 383.47816, y: 210.44844, stroke: '#df871b' }, { name: '.h3', x: 510.41374, y: 152.65768, stroke: '#1f91ac' }, { name: '.h4', x: 507, y: 152.36218, fill: '#df871b' }, { name: '.i1', x: 192.47816, y: 348.64847, stroke: '#dd5d20' }, { name: '.i2', x: 188.47816, y: 463.85818, stroke: '#dd5d20' }, { name: '.i3', x: 258.09133, y: 348.56614, stroke: '#1f91ac' }, { name: '.i4', x: 254, y: 348.36218, fill: '#ffffff' }, { name: '.n1', x: 387.71374, y: 348.36614, stroke: '#da3931' }, { name: '.n2', x: 499.004, y: 348.36614, stroke: '#da3931' }, { name: '.n3', x: 395.7, y: 348.46218, stroke: '#0b9444' }, { name: '.n4', x: 391.70001, y: 348.66217, fill: '#da3931' }, { name: '.n5', x: 503, y: 463.16217, fill: '#da3931' }, { name: '.k1', x: 188.32637, y: 544.48746, stroke: '#da3931' }, { name: '.k2', x: 200.31263, y: 659.5965, stroke: '#1f91ac' }, { name: '.k3', x: 196.31264, y: 659.39655, fill: '#da3931' }, { name: '.k4', x: 252.924, y: 599.49118, stroke: '#df871b' } ]; animations.forEach(function(animation, index) { if (animation.stroke) { timeline .add({ targets: animation.name, stroke: { value: ['#000', animation.stroke], duration: 500, delay: 1000 + index * 30, easing: 'easeInOutQuad' }, offset: 0 }); } if (animation.fill) { timeline .add({ targets: animation.name, fill: { value: ['#000', animation.fill], duration: 500, delay: 1000 + index * 30, easing: 'easeInOutQuad' }, offset: 0 }); } timeline .add({ targets: animation.name, translateX: { value: [100 * (index % 4) - animation.x + 100, -100], duration: 500, delay: 1000 + index * 30, easing: 'easeInOutQuad' }, translateY: { value: [100 * Math.floor(index / 4) - animation.y + 100, -100], duration: 500, delay: 1000 + index * 30, easing: 'easeInOutQuad' }, offset: 0 }); timeline .add({ targets: animation.name, strokeDashoffset: { value: setDash, duration: 800, delay: 1200 + index * 30, easing: 'easeInOutQuad' }, offset: 0 }); }); timeline .add({ targets: '.t1', opacity: 1, duration: 1000, delay: 4000, offset: 0 }); If possible please help me with this.

jmikesell · Accepted Answer

So if you read that last error saying "anime is not defined" I would start there. I don't see 'anime' defined anywhere in the code you posted, but you try to reference it in the first line.

jmikesell · Answer

2D or 3D image widget? And are you able to get it to display but the animation is not working? Is your JS code throwing any error in the console?

Pure speculation here but Studio and View are weird in how they handle 2D assets used in the 3D space. For example you can swap out the src for a 3D image but you can not change the dimensions and if you start with a 200x200 image and replace it with a 200x400 image the new image will be squished into the 200x200 box. The only value I have had luck changing is 'scale'.

I would not be supersized if the svg is being converted to a png at some point and that is why your animation is not working.
