How to create sequence in Illustrate with all the assets,symbols will properly import in thingworx

On the model when I tried to create sequence in creo illustrate, The sequence got imported in thingworx studio.

But the problem is like when I import sequence diagram in thingworx, all the assets,comments,Symbols are invisible like spanner,rotation symbol etc.

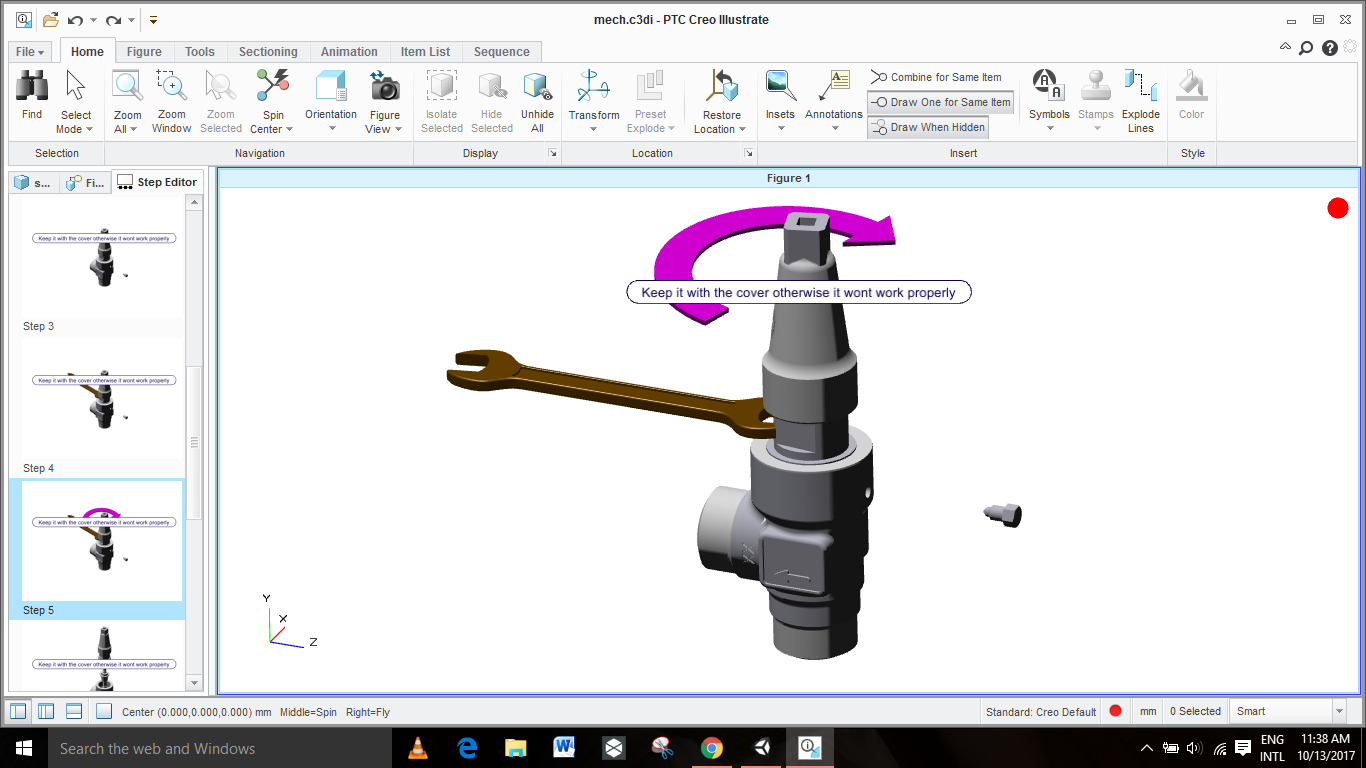

Refer the below snapshot, There is rotation symbols & information,but  it is not visible in my sequence in thingworx view.

Am I missing something?

1 reply

rborude1-VisitorAuthor
1-Visitor
Oct 13, 2017 6:22 AM UTC

But In the output it is not showing anything, Is there any way?
