How to roughly set model items

  • May 19, 2023
  • 1 reply
  • 731 views

Its purpose is to roughly set model items in Vuforia Studio.

for example,

Part ID Path (component occurrence) is

Model Item A: 3/4/5

Model Item B: 3/4/6

If so, delete 5 and 6 and the model items should be combined.

Sometimes I can and sometimes I can't.

Please let me know what to do if it is not possible.
------------------------------------
Translated from Japanese to English using google translate by Community moderation team.


Subject: モデルアイテムを大略的に設定する方法について
Body: Vuforia Studioでモデルアイテムを大略的に設定することを目的としています。

例えば、

Part ID Path（コンポーネントオカレンス）が、

モデルアイテムA：3/4/5

モデルアイテムB：3/4/6

となっている場合、5と6を消せば、モデルアイテムが結合されるはずです。

できるときとできないときがあります。

できない場合の時の対処方法について教えてください。
-----------------------------------

1 reply

R
RolandRaytchev21-Topaz I
21-Topaz I
May 22, 2023

Hi @miurat ,

so when you define a modelItem widget then you can select the item and possibly this will select

Model Item A: 3/4/5

or

Model Item B: 3/4/6

To combine both is ok then to go to the Component Occurrence attribute of the modelItem widget and change it to 3/4 manually - which means that this will refer to the subassembly one level above. Mostly  this should work. So far my experience this will work fine when you define this first time and some time later UI will not accept this change . In this case you can delete the modelItem widget and recreate it  by updating the property as desired.

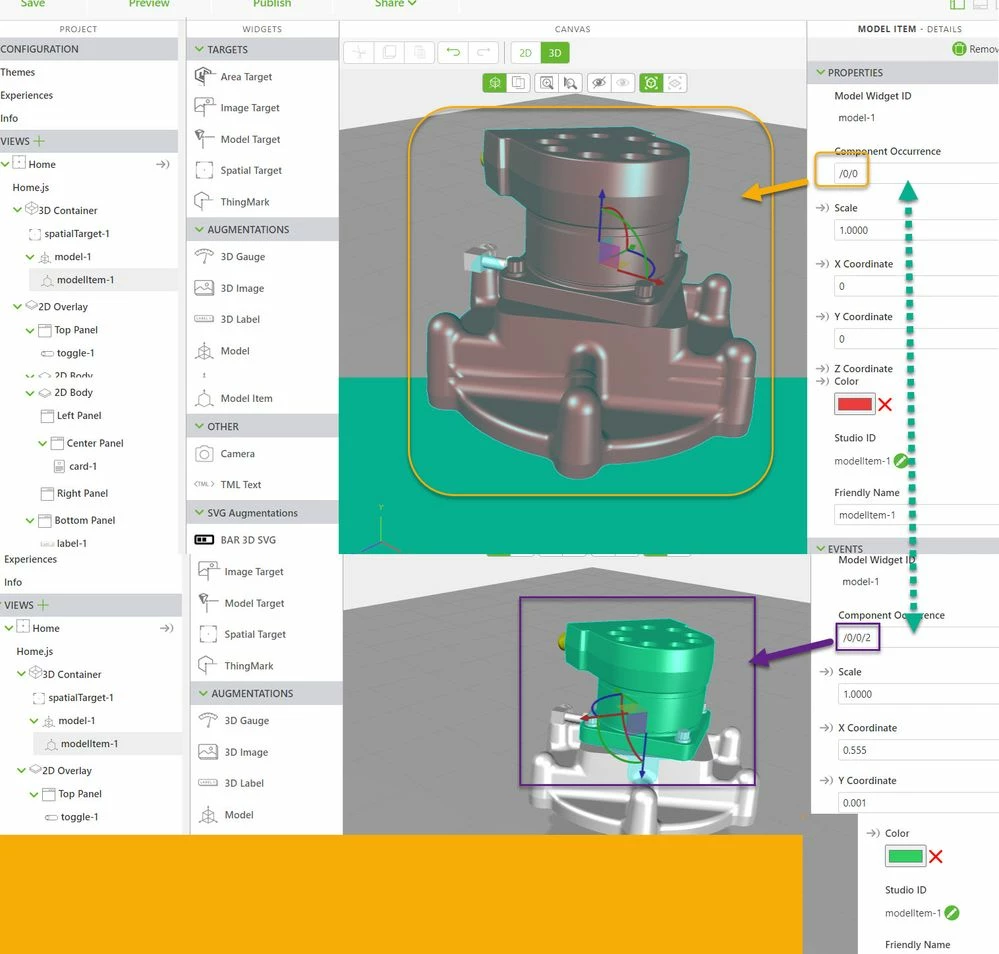

Example (not the best because actually 0/0 is the root assembly when model was published in Creo Illustrate ) to show the general principle
