Auto-created drw common name equale to that of part/asm

Hello,

when in my Parametric I create a new part/assembly, thanks to a config option I also have its drawing automatically created.

The problem I have when I do the Save & Upload, is that the drawing takes its filename and number equal to those of the related part/assembly, but not the common name. So that I always have to go and rename it doing a copy paste of the common name.

For example, you can see here in this video below (also attached to the post) that the common name of the drawing (in Windchill corresponds to the field "name") is equal by default to its filename, both when I do the simple "Save", and when I do the "Save & Upload":

Video Link : 7503

How could I put it automatically equal to the common name of the part (that is "test_commonname" in this case)?

Thanks

Bye

SergeyEfimovAnswer
1-Visitor
Jan 17, 2017 2:47 PM UTC

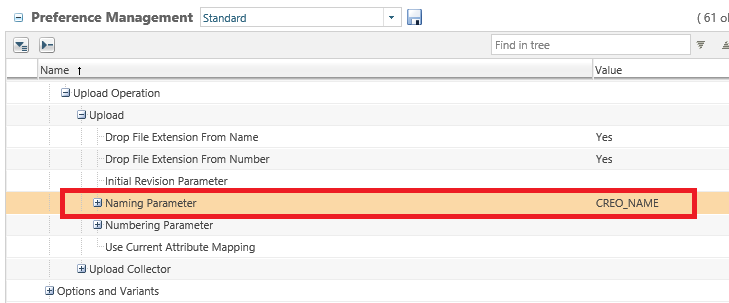

You can use the Naming parameter



Use the drawing program for mapping parameter from a model to a drawing



View in thread

15 replies

SergeyEfimov1-VisitorAnswer
1-Visitor
Jan 17, 2017 2:47 PM UTC

You can use the Naming parameter



Use the drawing program for mapping parameter from a model to a drawing



Translate
tleati12-AmethystAuthor
12-Amethyst
Jan 18, 2017 8:32 AM UTC

Hi Sergey,

perfect, it works, thanks!!

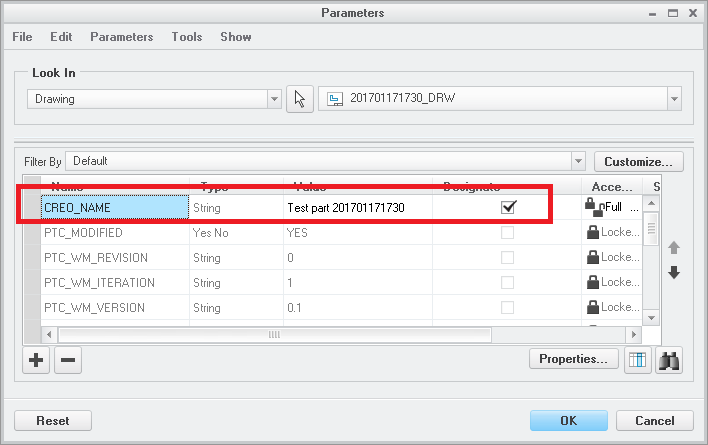

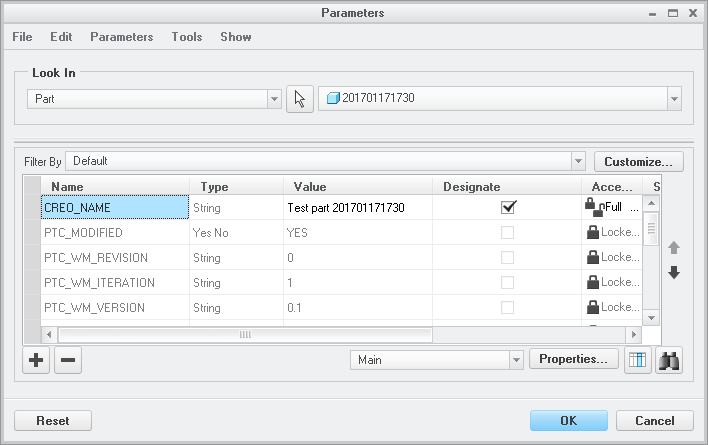

I realized also, to add to your solution, that the parameter (CREO_NAME) needs to be defined as a global attribute. Cause I tried also with another parameter just inserted in the Naming Parameter field and it case doesn't work.

Furthermore, on the right of my Naming Parameter field I find a the symbol of a lock...what does it stand for? (The field is still editable also with the lock).

Bye

Translate
SergeyEfimov1-Visitor
1-Visitor
Jan 18, 2017 9:13 AM UTC

Naming parameter does not to be defined as a global attribute only needs to be designated in Creo.

I need to see your file to understand that with a parameter.

Translate
psobejko1-Visitor
1-Visitor
Feb 22, 2017 6:08 PM UTC

Hi, I am wondering what config.pro setting allows you to automatically generate a drawing with the same name as the part model?

Or is this a Windchill functionality?

Translate
tleati12-AmethystAuthor
12-Amethyst
Feb 27, 2017 8:27 AM UTC

Hi Paul,

yes, it is a Windchill functionality as far as I know. But I don't exclude you can achieve it also in the stand-alone mode. As soon as I have a bit of time I will give a try and let you know.

Bye

Translate
psobejko1-Visitor
1-Visitor
Feb 27, 2017 1:50 PM UTC

I found my answer in this posting:

How to create drawing file Automatically while creating the 3d solid model ?

Translate
