DXF Creating Issues in Windchill

  • April 21, 2020
  • 1 reply
  • 1777 views

My DXF's that are created when checking in assemblies are not "clean". They have bend lines/hatch lines. I need these to come across as No Hidden Lines Type. Is there a way to change this setting?

1 reply

A
AndyHermanson14-Alexandrite
14-Alexandrite
April 21, 2020

You need to use a different config.pro on your worker machines that have all of those lines turned off.



display_axes no
display_coord_sys no
display_planes no
display_points no

T
Tyler-M3FAB4-ParticipantAuthor
4-Participant
April 21, 2020

Andy,

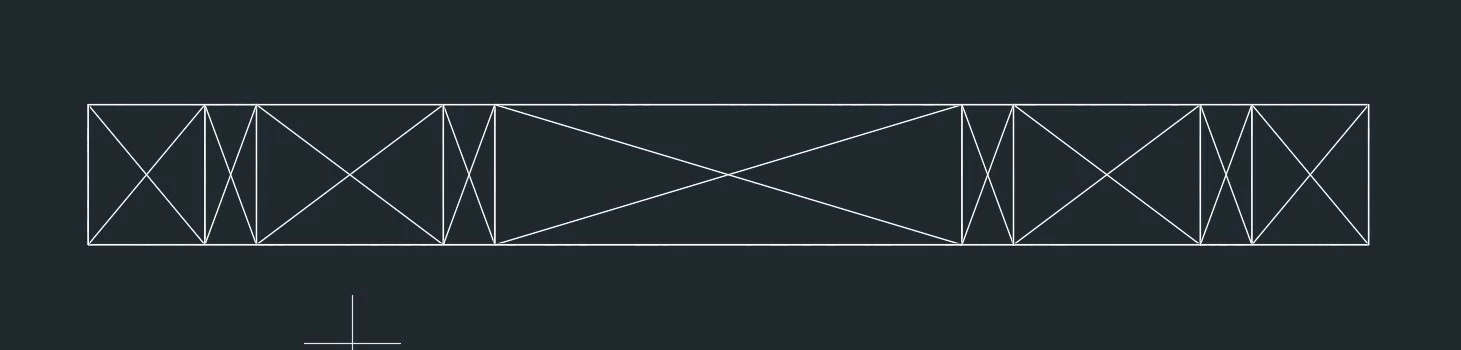

Our Config has that called out. Attached is an example of a simple laser cut strip and a snap of the config details.

A
AndyHermanson14-Alexandrite
14-Alexandrite
April 21, 2020

Have you tried manually opening the drawings directly on those machines that create the DXFs to verify they are correct?
