Fault Tree Analysis - WQS (Relex)

  • November 6, 2015
  • 2 replies
  • 2048 views


I have created a number of fault trees, set parameters and run the FTA model.  I have my FTA results.  I wish to see the cut sets of my fault tree and have used the highlight cut sets feature.  Relax shows me a cut set list in one single column which is not useful when I wish to see the minimum cut set in the diagram to send to our customer.

Does anyone know how I can export the minimum cut set and relate the list to the diagram so I can send them to our customer?

2 replies

T
treiter1-Visitor
1-Visitor
November 27, 2015

Duncan,

-make sure that you checked the "cut sets" check box in the calculation section, then calculate the fault tree.

- right click the top gate / properties.

- select the cut sets heading. A tabular representation of all cut sets will be displayed.

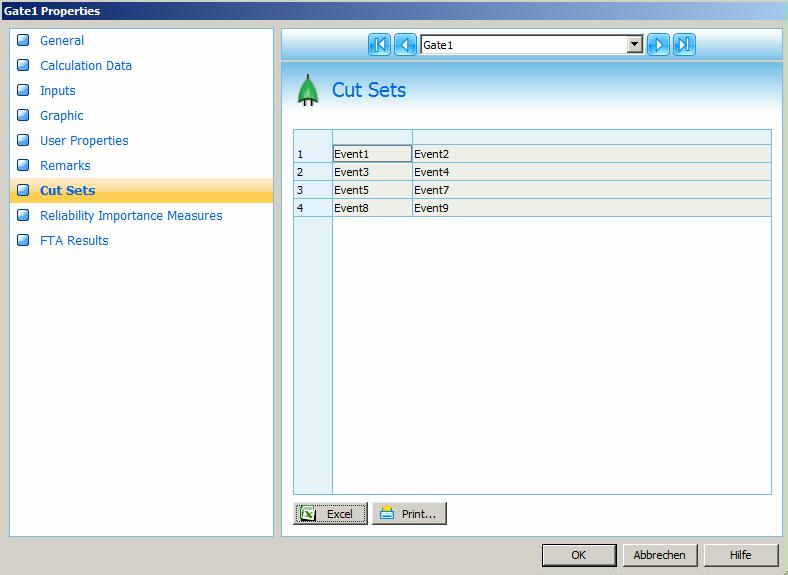

Note the "Excel" button at the bottom of the window. cutsets.jpg

R
rthomas-21-Visitor
1-Visitor
November 27, 2015

Duncan,

make sure that you enabled the "cut set" check box in the calculation section.

Right click the top gate / properties:


Note that Excel button.
