find number

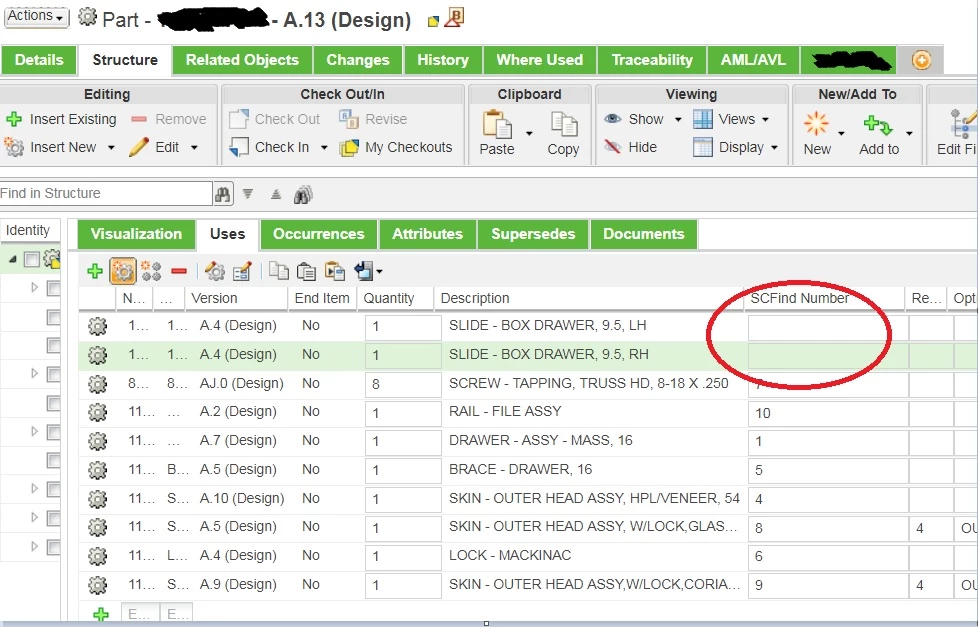

I have assigned a find number (balloon numbers) in creo assembly model and when ever I recheck-in the assembly model the find number will disappear in windchill WT part BOM structure. Can any one help

1 reply

rbhoraskar14-Alexandrite
14-Alexandrite
June 4, 2018

Hi,

Most important thing for Windchill "Find Number is a Usage Attribute"

in Creo Drawing:

1. Find numbers and corresponding balloons driven from assembly parameter

2. Table: Set component parameter to display in drawing table

3. Table Properties: Configure BOM Balloon for table to utilize same component parameter



In Windchil:

1. Find Number parameter stored on the CAD structure

2. Build process propagates attributes to Find Number on Part Structure / BOM

3. Drawing and Windchill BOM are kept in Sync
