How to create BOM/Parts structure for Solidworks configuration

Hi All,



In solidworks I have design with 4-configurations. While CheckIn with auto associate Parts we get only generic CAD associated with WTParts. All Configurations are shown under the family Table. Expectation is to have these configurations should show in EBOM like WTPart Structure.

Thanks,

Vishvanatha





shussainiAnswer
16-Pearl
Apr 6, 2021 4:25 AM UTC

You can also refer this section in Windchill Help Center.


Hope that helps.

regards
~Syed

2 replies

joe_morton
19-Tanzanite
Apr 5, 2021 6:08 PM UTC

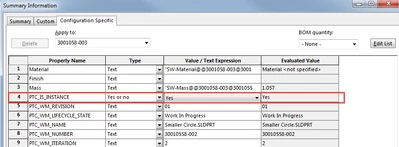

In the Configuration Specific Properties, you have to add the property PTC_IS_INSTANCE as shown and set it to Yes. You have to do this for each configuration where you want a WTPart.

Translate
shussaini16-PearlAnswer
16-Pearl
Apr 6, 2021 4:25 AM UTC

You can also refer this section in Windchill Help Center.


Hope that helps.

regards
~Syed
