How to Create NX Drawing Template in Windchill

Forum|Forum|7 months ago
September 5, 2025
2 replies
377 views

I am using Windchill PDMLink Release 13.0 and Datecode with CPS 13.0.2.5

how to create a drawing template for nx software

Catalina

Community Moderator

Hi @AK_13732694

Thank you for your question!

I’d like to recommend to bring more details and context to your initial inquiry.

Please add screenshot(s) to better understand what you are trying to do in your process.

Please refer to this guideline to make your questions more likely to receive a quick and useful answer.

This will increase your chances to receive meaningful help from other Community members.

Here's what a good question for Windchill looks like.

Thank you for your participation and please let me know if you need further assistance!

Best regards,

Catalina | PTC Community Moderator

HelesicPetr

22-Sapphire II

Hi @AK_13732694

Check in the drawing to the windchill

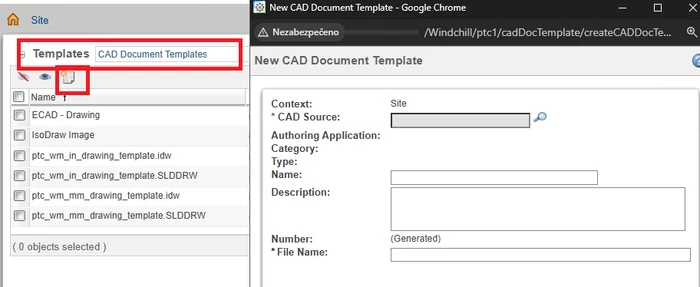

then go to the Template administration on a Site

Create a new CAD Document Template

search for your drawing template file in the Windchill

Done

After that you can create a drawing from a workspace

PetrH

A

AK_13732694

Author

1-Visitor

Hi HelesicPetr,

This is the general process to create a CAD template in the Windchill. But for NX the CAD extension is .prt so it is not recoginize it as a NX 2D CAD Drawing template. it is taking it only has a .prt (3D CAD Part). Coz of that i cant able to create a 2D CAD Template.

HelesicPetr

22-Sapphire II

I do not understand.

Just use the file , and then you can use it as a template.

Were is your trouble? Wrong icon? it does not matter. Use a drawing template as a name.

In my opinion does not matter if it use the .prt extension

PetrH
