Inventor BoM doesn't match WTPart structure

  • October 23, 2020
  • 5 replies
  • 2717 views

We noticed that amended quantities in Inventor BoM don't transfer over to the WTPart structure.

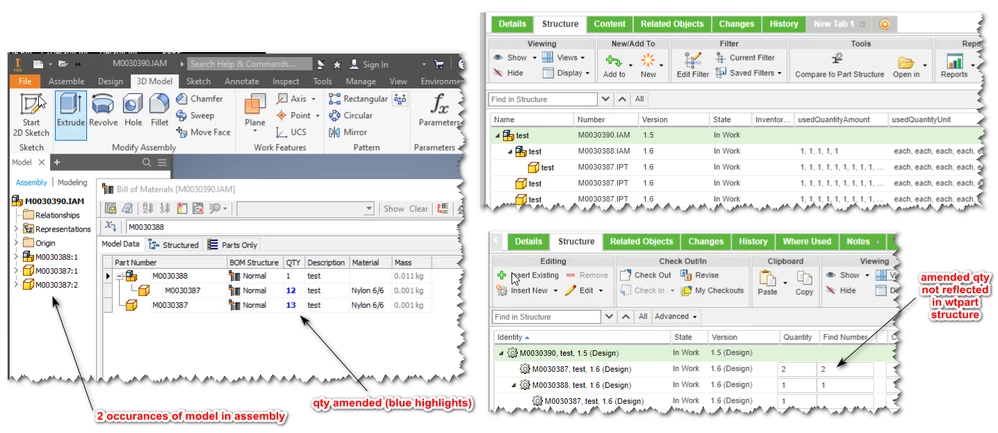

In the example below the qty of M0030387 has been modified in assembly but the WTPart BoM shows the qty of model occurrences (2) instead of the desired qty (13).

Inventor BoM qty changes.png

Has anyone come across this before?



Regards

Rob

Best answer by rhart

PTC R&D informed that modifying quantities in Inventor BOM Dialog Box changes the value from "Calculated" to "Static". A Static value has no effect on the true CAD assembly structure. Only CAD assembly structure occurrences as shown in the Inventor Model tree are taken into account by the WWGM, not any Static value set in the BOM Dialog Box.

5 replies

J
JHall1-Visitor
1-Visitor
October 26, 2020

@rhart

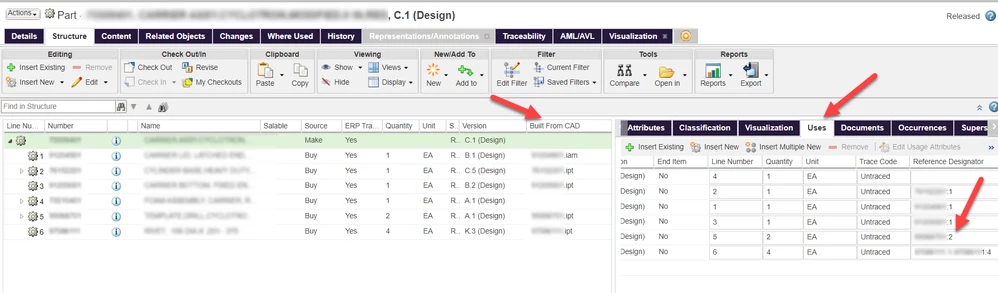

We've experienced this before.  I expose the 'built from CAD' column in my BOM view and review the Reference designator columns.  Often this leads me to the source of the issue.  Often I've found one part or the other didn't 'build' correctly OR the Owner Relationship wasn't applied.  There are (as you know) many variables.  🙂

James
Windchill 11.0 M030
Inventor 2019




R
rhart16-PearlAuthor
16-Pearl
October 26, 2020

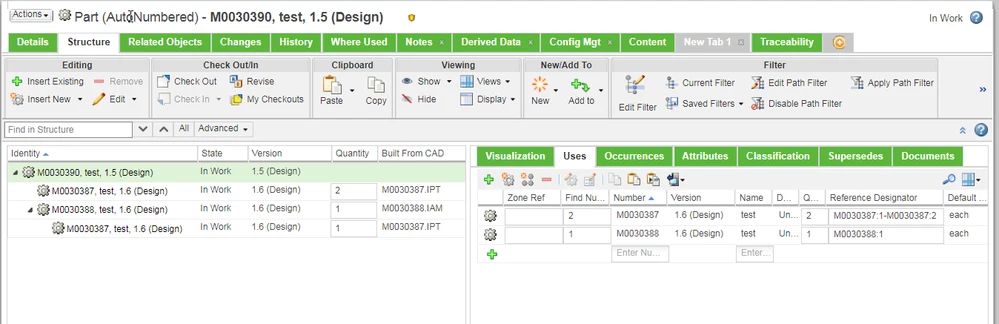

Thanks for your reply @JHall, I've added the columns, does it give any indication what's happing in this case?



Inventor BoM qty changes - columns.png

J
JHall1-Visitor
1-Visitor
October 26, 2020

@rhart

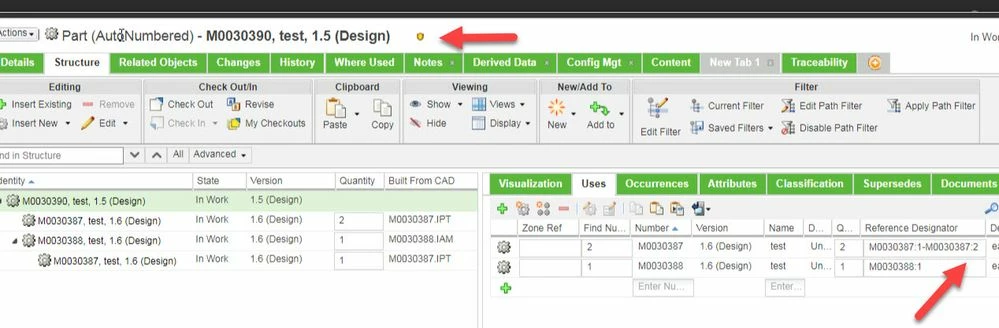

What I see is that the parts are built from the CAD object and that there are 2 in the assembly.  BUT, what is the symbol at the top?  Has this been checked in?




R
rhart16-PearlAuthorAnswer
16-Pearl
December 22, 2020

PTC R&D informed that modifying quantities in Inventor BOM Dialog Box changes the value from "Calculated" to "Static". A Static value has no effect on the true CAD assembly structure. Only CAD assembly structure occurrences as shown in the Inventor Model tree are taken into account by the WWGM, not any Static value set in the BOM Dialog Box.
