Missing leader lines on annotations in Creo View

Hi,
Trying to show model annotations (note with leader lines) in Creo View. I can see the text but, the leader line is missing. How do I get everything to show?













Mark_StahlkopfAnswer
10-Marble
August 8, 2023

So, just to close this out. The answer for this is to have both Positioning Assembly &  Extended Positioning Assembly set to YES.

View in thread

9 replies

jbailey
jbailey18-Opal
18-Opal
July 19, 2023

Version of Creo View? Version of Creo View Adapters? Version of Creo?

Translate
Mark_Stahlkopf10-MarbleAuthor
10-Marble
July 19, 2023

Creo 8.0.4.0

Creo View MCAD 8.0.0.0 build 27



Translate
jbailey
jbailey18-Opal
18-Opal
July 19, 2023

Are you generating the PVZ directly from Creo, or through a Windchill CAD Worker

Translate
avillanueva
avillanueva23-Emerald II
23-Emerald II
July 19, 2023

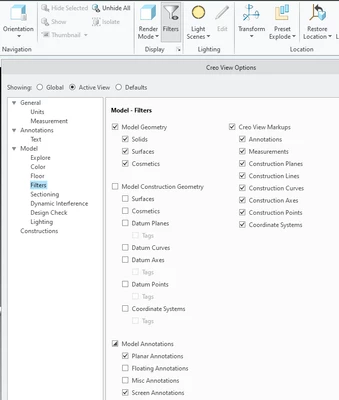

Send a screen shot of rcp file or listed of text file. Also, have you turned on all filters?


Also found this SPR:

https://www.ptc.com/en/support/article/CS364811?source=search



Translate
Mark_Stahlkopf10-MarbleAuthor
10-Marble
July 20, 2023

All Filters are on. I will check the RCP file.
Thanks

Translate
avillanueva
avillanueva23-Emerald II
23-Emerald II
July 21, 2023

I would follow up with Tech Support as I think that reported SPR I noted is likely the cause.

Translate
Mark_Stahlkopf10-MarbleAuthorAnswer
10-Marble
August 8, 2023

So, just to close this out. The answer for this is to have both Positioning Assembly &  Extended Positioning Assembly set to YES.

Translate
    ACarnes1-Visitor
    1-Visitor
    March 11, 2024

    I'm having the same issue, but I can't find where to change the options you mention here. Are these positioning options that need to change located in Creo View or in the configuration editor within Creo? I haven't been able to locate them in either place.
