search for dimension in drawing by windchill

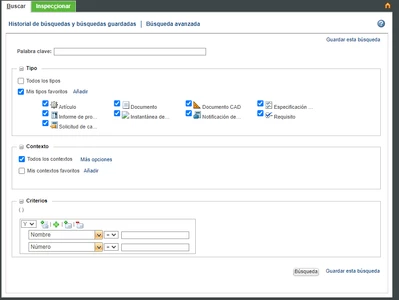

Is possible to search a dimension in 2D by this page in windchill?


Is possible to search a dimension in 3D by dimension 3D, in windchill too.







d_grahamAnswer
18-Opal
May 8, 2023

It is possible by creating a designated parameter in the drawing and a relation to link the designated parameter to the appropriate parameter.

Then you’d create a corresponding attribute in Windchill.

You could then search on the corresponding attribute.

View in thread

7 replies

Hemant_Chaugule12-Amethyst
12-Amethyst
May 5, 2023

Hello,



I guess when you are speaking about the MBD Models, which has 3D dimensions in it. If you are checking in CAD data into the windchill, it's going to send metadata into the DB (like type, number, name etc.) and physical model files will go into the vault. Windchill Database will not have a details about your the geometry and it's MBD notes or dimensions.

That's why windchill will not have a control to index that information, That's the reason why it's not possible to search using 3D or 2D dimensions in windchill using search functionality.

Regards,
Hemant Chaugule

Translate
    avillanueva
    avillanueva23-Emerald II
    23-Emerald II
    May 5, 2023

    Short answer no but you can index drawings and search for text like in notes.

    Translate
      Dobi17-Peridot
      17-Peridot
      May 8, 2023

      If your publishing is working and you have PDFs generated as Published Content links, search will look into content of the WTDocuments...

      Translate
        Chris3
        Chris321-Topaz I
        21-Topaz I
        May 5, 2023

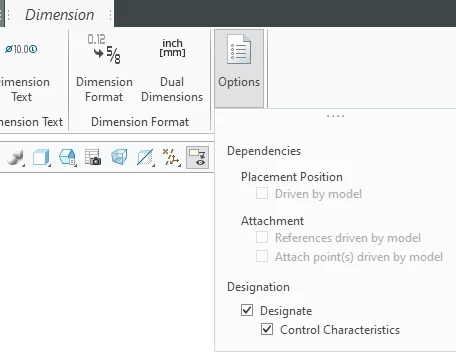

        I haven't done this myself, but I believe that if the dimension is designated as a control characteristic, there is a way to find it in Windchill.




        Translate
          d_graham18-OpalAnswer
          18-Opal
          May 8, 2023

          It is possible by creating a designated parameter in the drawing and a relation to link the designated parameter to the appropriate parameter.

          Then you’d create a corresponding attribute in Windchill.

          You could then search on the corresponding attribute.

          Translate
            jtorres8-GravelAuthor
            8-Gravel
            May 23, 2023

            Thanks, this solution may be used for me

            Translate
