What is your best practice for handling step files?

  • April 3, 2014
  • 3 replies
  • 2916 views

Currently no preview picture is created when step files are uploaded as CAD document. Only when uploaded as a standard document.

It´s important that the step file is a CAD document (to link it with WTParts), but it´s also important that there is a preview picture created.

How do you deal with that?

Best answer by LoriSood

https://www.ptc.com/appserver/cs/view/solution.jsp?n=CS79209

The STEP files need to be stored as WTDocuments and then you can configure/use a STEP worker

3 replies

T
tbauer1-VisitorAuthor
1-Visitor
April 3, 2014

CAD Document = CAD Part, CAD Product, CAD Drawing etc.

No preview picture because test-server doesn´t run the needed converter

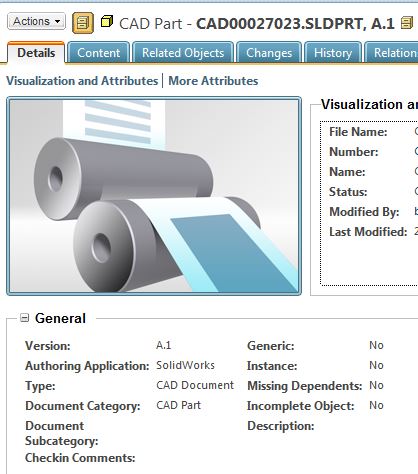

CAD Documents can be linked to WTParts:

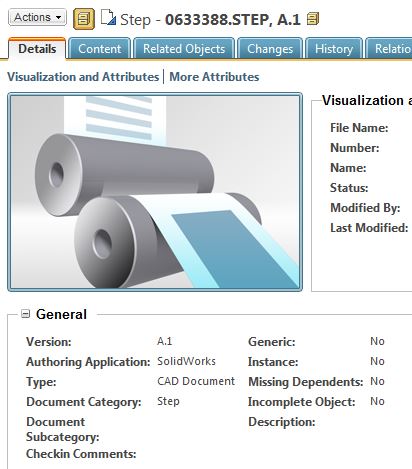

STEP file uploaded with SolidWorks:

Preview picture also not created on Live-Server


    T
    tbauer1-VisitorAuthor
    1-Visitor
    April 4, 2014

    I´m not sure what software you mean.

    See Tags: Software is Windchill 10.2 with workgroup manager.

    See general attributes of the parts: Authoring Application of the uploaded parts is SolidWorks (2013).

    I hope this information was what you were asking for.

    A
    AntonBagryanov1-Visitor
    1-Visitor
    April 4, 2014

    Hi tobias!

    You may create the SW CAD-agent on your visualisation server and try to publish all no representation CAD-models.

    T
    tbauer1-VisitorAuthor
    1-Visitor
    April 29, 2014

    Hi Anton,

    works for SW files, but not for STP files.

    L
    LoriSood23-Emerald IAnswer
    23-Emerald I
    May 3, 2014

    https://www.ptc.com/appserver/cs/view/solution.jsp?n=CS79209

    The STEP files need to be stored as WTDocuments and then you can configure/use a STEP worker
