Windchill CAD document file name based on number and name

This what I wrote up for our users.

Drawing Titles

I know there have been questions on what to name a file when creating one in Creo or renaming in Windchill, if named wrong when created in Creo. Here are some guidelines so you all understand how the file naming goes and which Creo names get mapped to which Windchill names. Even us using Windchill for 10+ years have always questioned why the different terminology and have asked PTC to change it.

Here is an overview of what goes where:

1. Creo requires 2 pieces of information when creating a new file:
   1. The Name field (Limited to 31 characters with no spaces)
   2. The Common name field (Tested with 123 character name length, however from ASME Y14.100, it should follow this: “The title shall be as brief as possible, describe the item, and distinguish between similar items”)
2. These get mapped to 3 items in Windchill:
   1. The Name gets mapped to Number and File Name
   2. The Common name gets mapped to an internal parameter, PTC_COMMON_NAME, which is displayed in Windchill as the Name
3. The File Name is what shows up in your Model Tree.
4. The File Name MUST be unique in Windchill.
5. The Common Name field when mapped to PTC_COMMON_NAME shows up in the drawing title as the top line and in the Name field of an assembly BOM table.
6. The Number column in a BOM is created by a relation that takes the internal parameter of rel_model_name and maps it to the PDM_NUMBER parameter used in the BOM. If you rename a file in Windchill, you must open the file in Creo, regen and then resave it to get the PDM_NUMBER to update. Once the part is done, the BOM of the assembly will update.

With that, now comes the question of HOW to name a file. We have stated that one of the industry standards we follow is ASME Y14.100. Section 5 (page 9) deals with Drawing Titles. There is also a reference to Appendix C for constructing Drawing Titles. Also read Section 4.26 for drawing notes and terminology.

For the file>Open (workspace) issue...

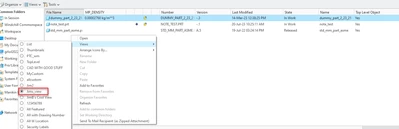

1. Create a custom Workspace View
   1. Note: view can be created by an admin, or the end users.
2. RMB in the file>open window Views > Select the view created in 1
