Solved

Diagram representing the links

  • December 21, 2023
  • 2 replies
  • 1266 views

Hello Community,

I wanted few diagrams or pictures that represents the below links in Windchill. If any of you has anything on the same, requesting you to share it.



Link Objects: WTPartReferenceLink, WTPartDescribeLink, EquivalenceLink, Owner, Calculated, Image, WTPartAlternateLink, PartSubstituteLink



Thanks.

    Best answer by Fadel

    you can use , query builder to create a nice diagram :




    1- dd the link object table

    2- look for the classes for roleA and RoleB objects

    3- add tables for class A and class B objects

    4- link the tables

    5- validate links



    (view in My Videos)






    2 replies

    Marco Tosin
    21-Topaz I
    Marco Tosin21-Topaz I
    21-Topaz I
    December 21, 2023

    This is an HUB article on Windchill data model



    https://www.ptc.com/en/support/article/CS137012





    Marco
      Fadel
      Fadel23-Emerald IAnswer
      23-Emerald I
      December 21, 2023

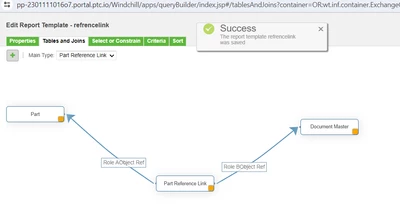

      you can use , query builder to create a nice diagram :




      1- dd the link object table

      2- look for the classes for roleA and RoleB objects

      3- add tables for class A and class B objects

      4- link the tables

      5- validate links



      (view in My Videos)
