Question

How extract Display enumerated value of an object?

  • September 25, 2020
  • 1 reply
  • 8572 views

Hello everybody, I'm trying to retrive some global enumerated value of WTDocument from the Windchill 11.0 M030 database with a SQL query.



I used the queries of https://www.ptc.com/en/support/article/CS174022

but what i can get are just the Internal values of the attributes, not the Display values.

(column NAME of [LWCEnumerationEntry])



Which table contains the DISPLAY Value of the enumerated attributes?



How these attributes values are linked to the objects (eg WTDocument) ?

I can see the stringValue linked to the object, but again it contains the internal value and I need instead the display value.



Can you point me to a datamodel documentation that covers this topic?



Thank you

    1 reply

    H
    hlafkir5-Regular Member
    5-Regular Member
    September 25, 2020

    Hi,

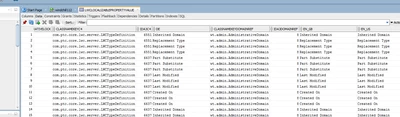

    Please take a look into the LWCLocalizablePropertyValue table. here are the display values (with column for local)






    good luck

      A
      AndreaP8-GravelAuthor
      8-Gravel
      September 28, 2020

      Thank you! now I'm able to see the display value in the database, LWCLocalizablePropertyValue.value

      and link it to the others tables

      LWCLocalizablePropertyValue.IDA3B4-->LWCEnumEntry.IDA2A2

      LWCEnumEntryLink.IDA3B4-->LWCEnumEntry.IDA2A2

      LWCLocalizablePropertyValue.IDA3C4-->LWCMasterEnumerationDefinition.IDA2A2



      I still miss how these values are linked to an object;

      for example on  WTDocument normal strings vaues are linked :

      WTDocument <--(IDA3A4) stringValue (IDA3A6) --> stringDefinition



      How is the join in this case?







      H
      hlafkir5-Regular Member
      5-Regular Member
      September 29, 2020

      Hi,



      This article should help you to link the required tables :



      https://www.ptc.com/en/support/article?n=CS302379



      Hope this will help.



      Another hint :



      You can log SQL statements to see the query executed from Windchill to Database by using advices in this article :



      https://www.ptc.com/en/support/article/CS46545



      or, maybe better , add wt.pom.sql using the steps in Windchill GUI :



      https://www.ptc.com/en/support/article/CS145146



      This will show you how Windchill is building queries for any operations. Lot of lines 🙂





      Hicham
