Any OOTB Navigate services present to fetch CAD Structure ? and to fetch CADStructure with its quant

Any OOTB Navigate services present to fetch CAD Structure ? and to fetch CADStructure with its quantity ??

13-Aquamarine
Jul 18, 2023 6:59 AM UTC

The DocumentStructureAccessAppThing is designed to be used for the WTDocument use cases.
If you want to get the EPM Document (CAD Document) structure you need to use a different approach.
The connector that you can look for in the OOTB services is "ptc-windchill-OData-connector".

For Example the call "CAD_Get_Structure_Internal" can be used to get a CAD Structure from Windchill.

But as Andra wrote, sharing a bit more details about your environemnt and detailled use case would be helpful.

Depending on your Navigate version and your use case you would have to use a different approach.

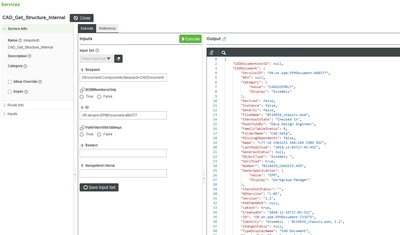

The below example is using the CAD_Get_Structure_Internal service with an ID (EPM oid) and the $expand of "CADDocument,Components($expand=CADDocument,Components;$levels=3)". Which would get the epm structure of the assembly for 3 levels)




7 replies

Emeritus
Jul 17, 2023 1:31 PM UTC
Thank you for your question.
I encourage you to bring more details and context to your initial inquiery to increase your chances to receive meaningful help from other Community members.

Translate
16-Pearl
Jul 17, 2023 8:27 PM UTC

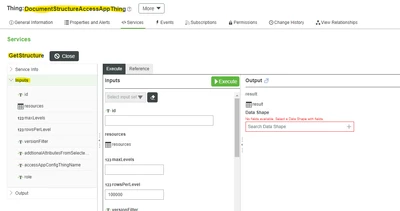

I want to know the inputs of this OOTB Navigate Service
