Question

2D DIMENSION SKETCH - AREN'T SHOWN IN 3D MODEL ANNOTATION

  • October 24, 2016
  • 3 replies
  • 2367 views

Hi all and goods,



When we created dimension inside Sketch by an each extrusion for ex.

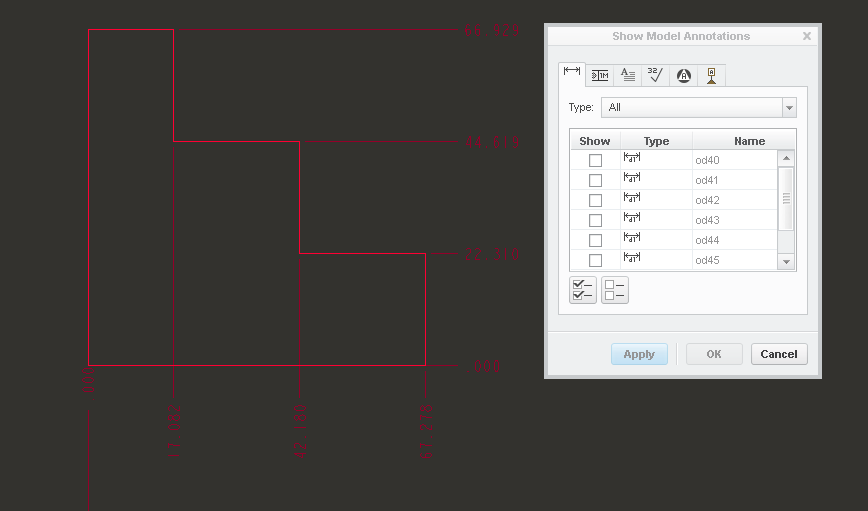

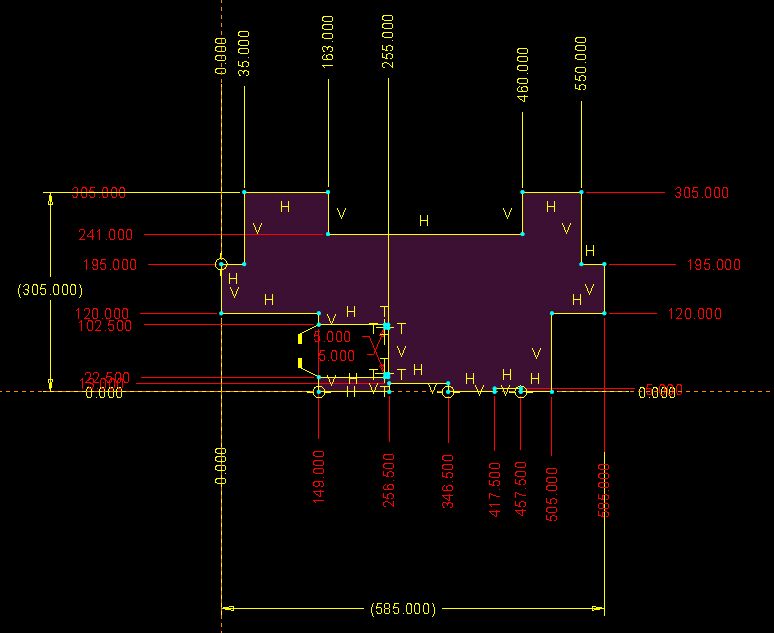

If this dimension has been create with sketch icon "Base Line" and next with skecth icon "Dimension" (see next image)






And the result is:

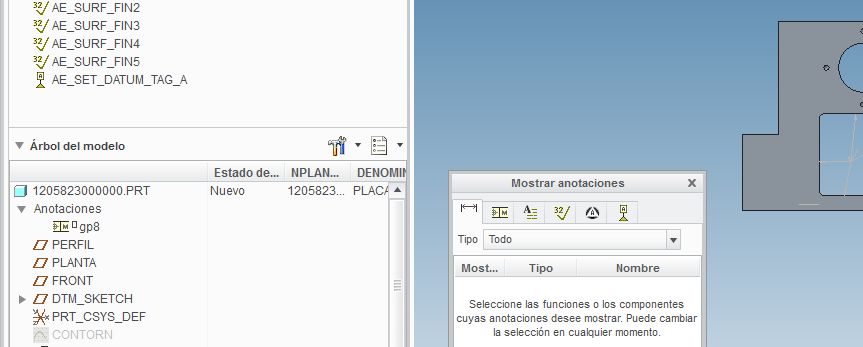

Why this dimensions ordinate aren't shown as 3D annotation in model?




Instead, linear dimensions, if are shown.



Please, somebody would help me.

Is a configuration?



Thanks,



Br,

Gorka
