2D Drawing Export Dimension and other lines color not as per Shown in Graphical area

Forum|Forum|10 years ago
May 23, 2016
2 replies
2953 views

Refer below screen shots

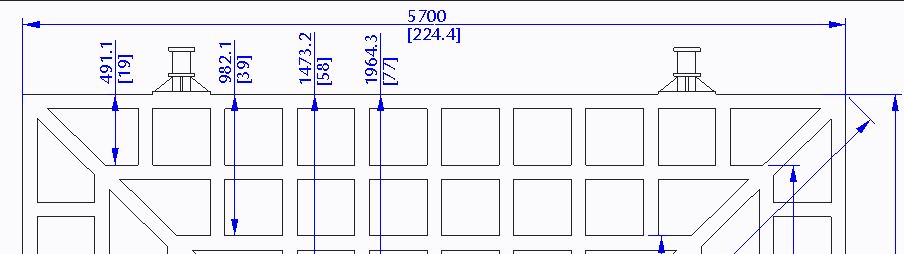

1.) view Dimension are in Blue color

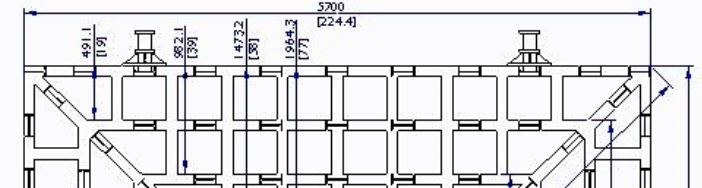

2.) view final export to pdf Dimension color changed to Black color

This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

2D Drawing

24-Ruby III

Hi,

colors applied during PDF export are defined in pen table file.

MH

2-Explorer

Hello Deepak G ,

see following config.pro option:

pen_table_file --- Specifies a default pen mapping table which supersedes other pen mapping informations.

Pen table is a creo parametric file with *.PNT extension.

See attached file with example of pen table file.

Regards

Milan

1_pen_table-pnt.zip

Author

1-Visitor

Hello @Milan Bonka,

1.) where i need to save this pen.pnt file in which location.

2.) pdf_use_pentable yes ; im already configured but in default pen table, and location for this i can't find.

3.) I required as per Graphical area shown after export.

all this questions what i need to do.

24-Ruby III

Hi,

you can save pen.pnt file in any directory, for example C:\PTC

Following options has to be included in config.pro file:

PEN_TABLE_FILE C:\PTC\pen.pnt

PDF_USE_PENTABLE YES

MH
