3d modelling - 3d patterns complex surfaces

  • February 7, 2017
  • 2 replies
  • 2981 views

Hi,

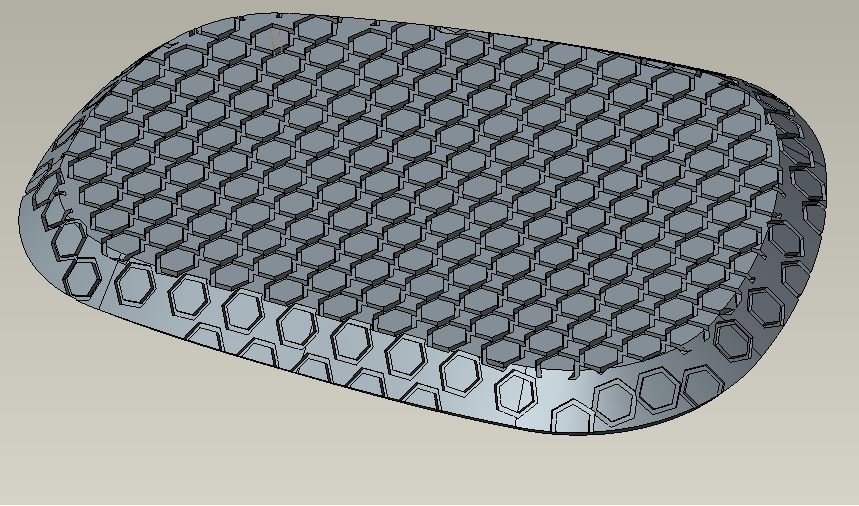

Im looking into the capability of creo to generate 3d surface patterns onto compound surfaces.

I cannot seem to find any good tutorials for this. There is a tool in pattern which allows UV mapping it does not stitch the pattern between surface direction change correctly


There's other software that are able to create these complex surfaces ie. Armadillo | Food4Rhino

or Alias Alias Modeling - Hexagon Tile Pattern - YouTube.

Does Creo have the capability to do this kind of complex surfacing?

2 replies

S
23-Emerald III
StephenW23-Emerald III
23-Emerald III
February 7, 2017

I'm not a surfacing guy. Check out this loooong post on here about a spare time project, not the hex pattern thing but...

___ Daily update. CHEVROLET CAMARO 2010 -STYLE- CLASS A SURFACES - Working in progress (SPARE TIME)

P
psobejko1-Visitor
1-Visitor
February 7, 2017

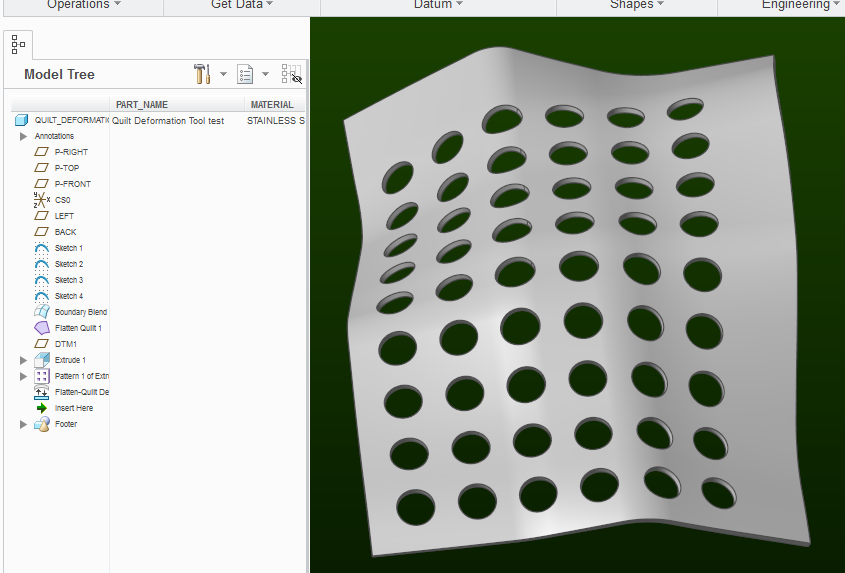

Maybe the flatten-quilt deformation tool would work for you:


I am not sure if it can handle sharp transitions that you are showing, though.
