90 degrees toroidal bend

  • December 12, 2017
  • 2 replies
  • 2626 views

Hey guys,



I am trying to perform a toroidal bend and my coordinate system is not taking the 90 degrees angle to the line I have defined as a sketch. Any ideas why?

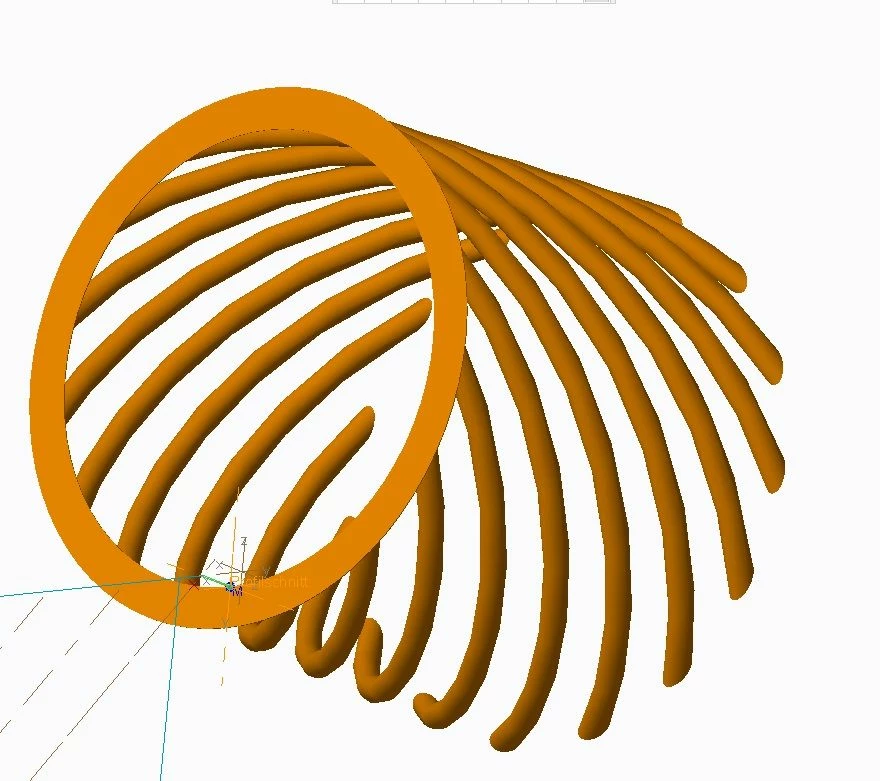

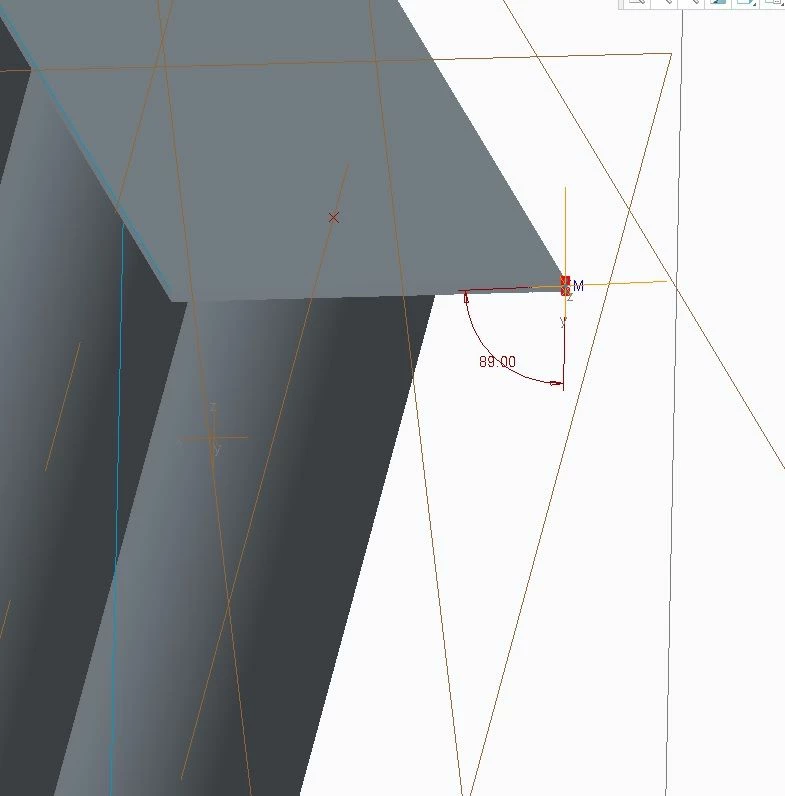

89 degrees is perfectly working...Prob1.jpgProb2.jpg

2 replies

A
AmitDeshpande18-Opal
18-Opal
December 14, 2017

Are there any kind of error messages or information in the troubleshooter?

K
kani1-VisitorAuthor
1-Visitor
December 17, 2017

no messages. It just says that the KE can not be regenerated.

T
TomD.inPDX17-Peridot
17-Peridot
December 15, 2017

You might post the file if allowed.

There are occasions when things close to a loop that they fail.

Without looking at the geometry, it is hard to say why it fails.





K
kani1-VisitorAuthor
1-Visitor
December 17, 2017

sure! here it is.

https://ufile.io/lub4f

Switching the angle at the toroidal bend from 179 to 180 degrees causes the bend to not be applied anymore.

T
TomD.inPDX17-Peridot
17-Peridot
December 17, 2017

Please don't use download sites with so many landmines!

You can upload directly to the forum.



Your file is an education version of Creo 3.0.

My commercial version will not open that, sorry.
