Add Tolerance to a Dimension created in Drawing

  • June 29, 2016
  • 1 reply
  • 2243 views

CREO 2.0



Can you add Tolerance to  a dimension created in the Drawing?  I believe there was a setting?



Also, is it possible to add GD&T Feature Control Frame to a dimension created in the Drawing? (As opposed to a SHOWN Dim from the model).



Thank you.



-Art




This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

1 reply

D
dschenken1-Visitor
1-Visitor
June 30, 2016

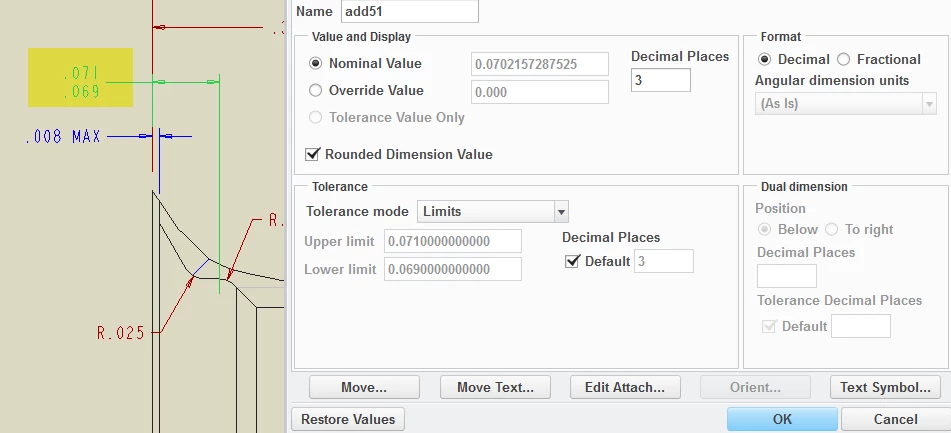

Set the dimension properties to show the tolerance instead of being nominal. There is a .dtl setting that controls newly created dimensions, but existing ones are dealt with Properties settings.

I know one guy who created FCFs using notes. I have no idea how he got the checkers to sign off on using "8" as a datum. Otherwise I think that datums for drawings FCFs have to be drawing datums and not refer to the model ones.
