Hola,

Me equivoqué en la medida y al añadir la pieza en el conjunto era pequeña en relación con las otras piezas. ¿Es posible agrandar toda la pieza en si en el conjunto?

Un saludo

Hello,

I had made a mistake on the size of on piece and when I added that piece to the combination or essemble it was smaller than the other pieces of the combination or essemble. How can I make that piece bigger ?

Salute

1_ptc.rar

General

Best answer by MartinHanak

Hi,

1.] problematic feature = Wall Surface, it converts solid geometry to sheetmetal.

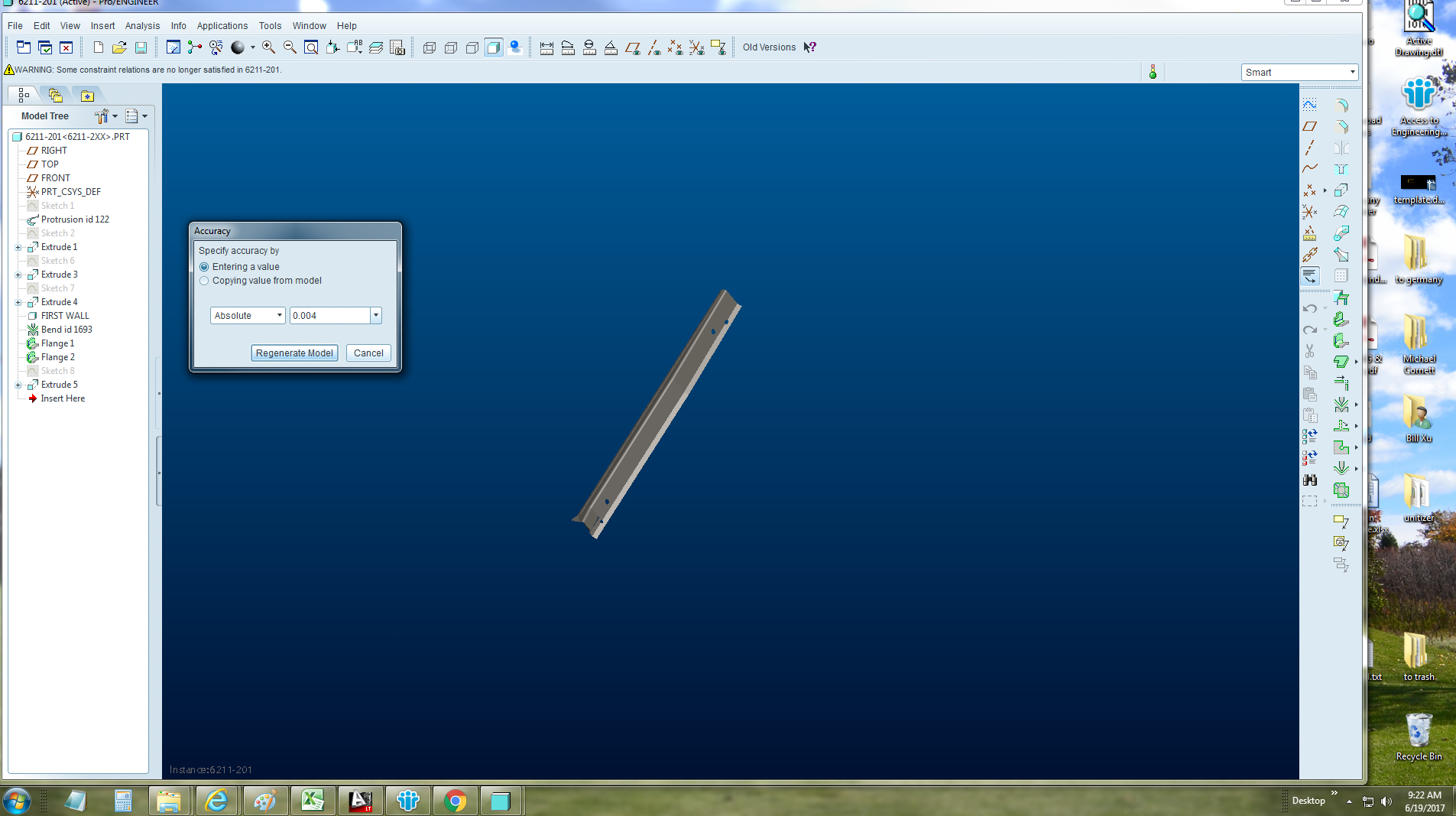

2.] I modified generic model's accuracy to Absolute 0.004 and now all instances works well. ... I can't explain why, please do no ask me .

MH

B

BenLoosli

23-Emerald III

Give us some more details about the part?

It helps when building a FT to rename the dimension variables in the dimension properties so it says Hole3_x_length instead of d203. This makes it easier for others to debug and modify your FT.

Which feature is failing?

Which feature do your family table d203 and d206 dimensions come from?

Why are you putting a sketch in the family table instead of a feature.

If I see it right, some of those extrudes are putting in holes. There has been a hole feature available in Pro/Engineer since the Wildfire days.

I am thinking from a quick look that your numbers are too small and those forming a feature in space when the FT is processed.

M

MartinHanak
