Question

Arc radius dimensioning

  • January 4, 2013
  • 2 replies
  • 1512 views

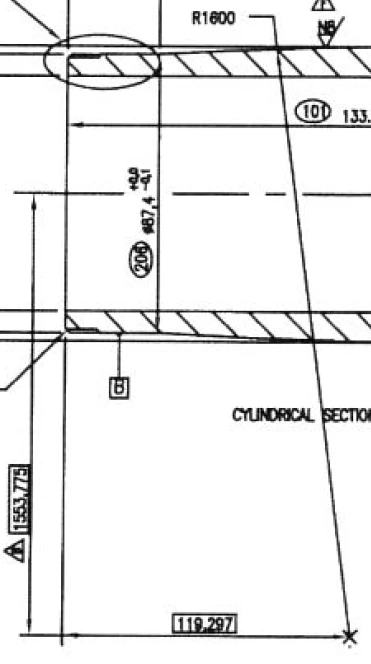

I am trying to dimension the radius and location of a big arc but it wont fit inside the drawing because it is so large. I trieddimension breaks but it wont move the center of the arc. Is there a way to move the location of thecenter of the arc? trying to replicate the picture named dimension1 even though is out of scale. i am stuck with picture, dimension, which is not readable.


thanks


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

2 replies

J
joe_c14-AlexandriteAuthor
14-Alexandrite
January 4, 2013

Solution: There is a tool called Z-radius dimension that creates a foreshorten radius dimension on the annotate toolbar


Thanks to Mike L.
