Assembly pattern to points problem

  • April 5, 2012
  • 1 reply
  • 3311 views

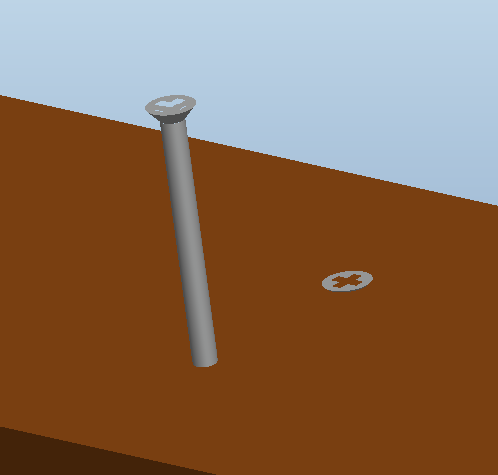

I need help quickly. Why did the pattern of the screw component go halfway in? The screw is 3" long and went 1.5" into the member.

The screw that is sunk in completely was fully assembled and then I selected it for a Pattern to an array of datum points that I previously set up. Note: there are other screws not seen here that are sticking halfway out.

PATTERN WRONG.PNG

Thanks,

Kevin


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.
Best answer by Kevin

Try specifying an alternate origin point under the Options tab, in your case the pattern leader. Depending on how you have definded your points you may need to deselect the one at the pattern start otherwise you end up with a duplicate part at the start location.

1 reply

P
ptc-19723011-Visitor
1-Visitor
April 6, 2012

What kind of constraints have you given for the screw?

K
KevinBradberry1-VisitorAuthor
1-Visitor
April 9, 2012

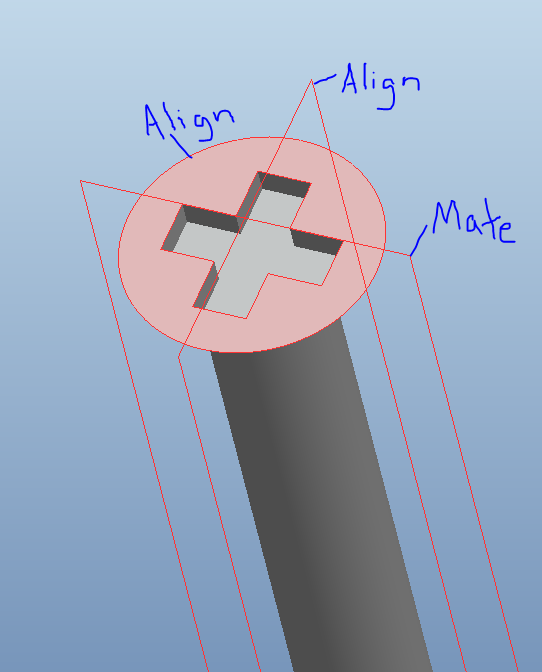

I used the following constraints.

screw constraints.PNG

When you assemble a component you will notice a square at the center of the component as seen below.

screw constraints 2.PNG

When I did the pattern to an array of points, all the points were on the surface of the wood (brown), and the square at the center of the screws matched up with the points thereby leaving the screws sticking out of the wood.

Without moving my points down inside the wood, I hope there is a way to do this pattern the way I want.

K
Kevin1-VisitorAnswer
1-Visitor
April 9, 2012

Try specifying an alternate origin point under the Options tab, in your case the pattern leader. Depending on how you have definded your points you may need to deselect the one at the pattern start otherwise you end up with a duplicate part at the start location.
